2-3/8"
2-3/8"
G
2 - 2-1/4"
G
2 - 2-1/4"
1-13/32" ~ 1-21/32"
1-13/32" ~ 1-21/32"
1-13/32" ~ 1-21/32"
1-13/32" ~ 1-21/32"
A
B
A
B
PAGE 1 OF 2

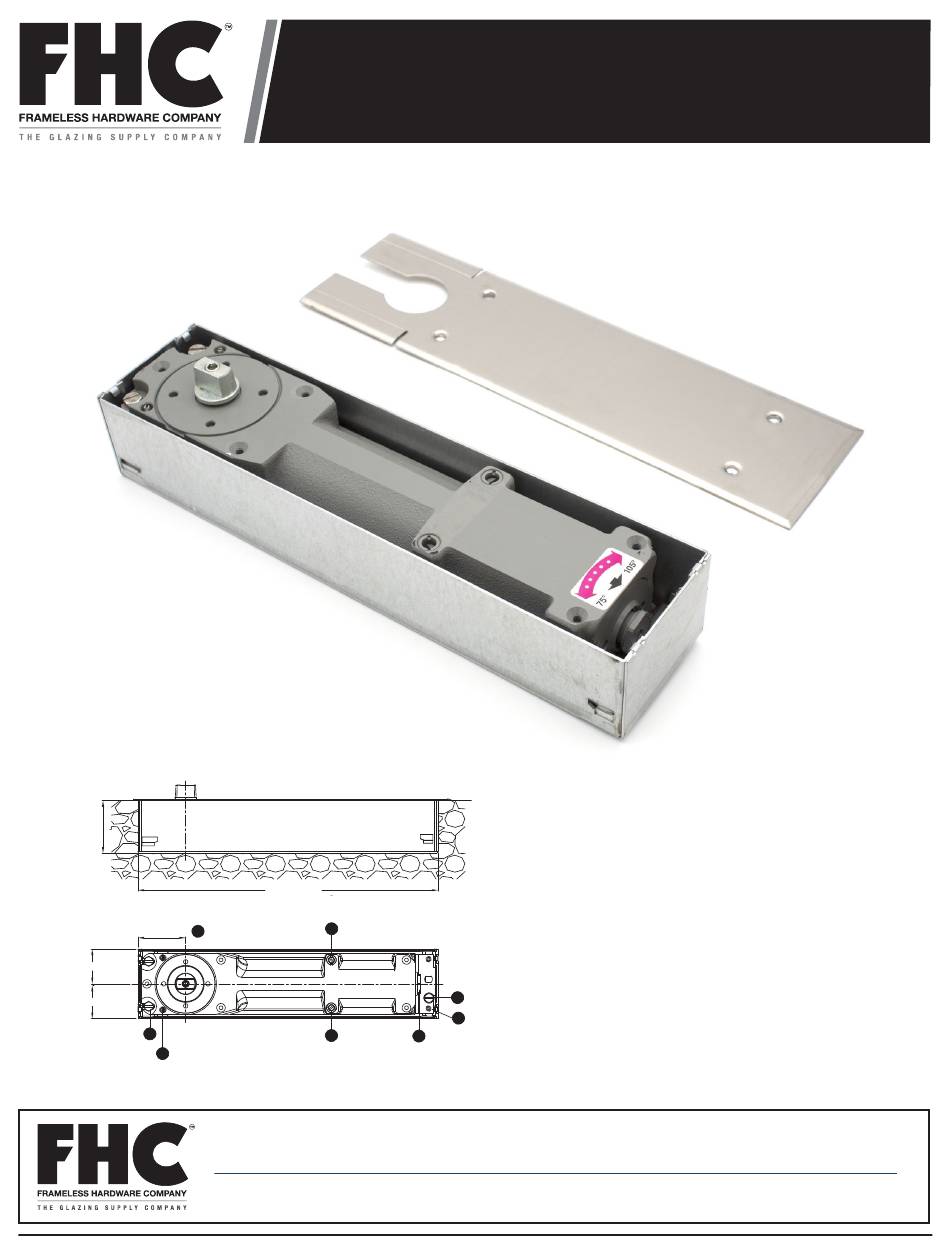

INSTRUCTION MANUAL
FHC Heavy Duty Floor Closer
90º Selective Hold Open
13-7/16"
C
13-7/16"
C
D
D
GLAZING SUPPLIES
SHOWER DOOR HARDWARE
4361 Firestone Blvd. South Gate, CA 90208 | Toll Free: (888) 295-4531 | Fax: (323) 336-8307 | fhc-usa.com

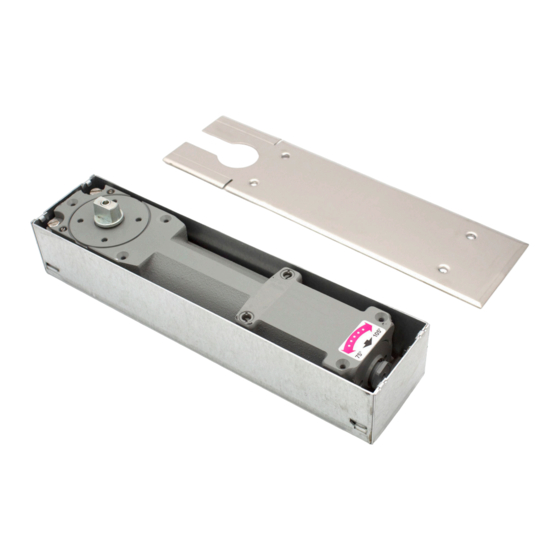

FLOOR CLOSER FHC80
Universally Suitable for Rebated and Double Swing Doors
A = Fixing Screws
B = Height adjustment screws
C = Regulating valve for closing speed from approx. S0° to 0°
D = Valve for delayed closing, hydraulic hold open and closing
speed from 180° to approx. S0°
E = Fixing screw
E
F = Height adjustment screws
F
E
G = Pivot Center
H
F
H = Regulating screw for adjustment of hold-open start
H
ARCHITECTURAL HARDWARE
RAILING HARDWARE
ITEM NO.
FHC80
TRANSACTION HARDWARE
METAL EXTRUSIONS
LIT0055 02.07.20
Advertisement
Related Manuals for FHC FHC80
Summary of Contents for FHC FHC80
- Page 1 H = Regulating screw for adjustment of hold-open start GLAZING SUPPLIES ARCHITECTURAL HARDWARE TRANSACTION HARDWARE SHOWER DOOR HARDWARE RAILING HARDWARE METAL EXTRUSIONS 4361 Firestone Blvd. South Gate, CA 90208 | Toll Free: (888) 295-4531 | Fax: (323) 336-8307 | fhc-usa.com PAGE 1 OF 2 LIT0055 02.07.20...
- Page 2 FHC HEAVY DUTY FLOOR CLOSER SELECTIVE HOLD OPEN FRAMELESS HARDWARE COMPANY The unit is delivered in the position suitable for double swing doors. Left hand doors FIG. 1 - Right hand doors. FIG. 2 FIG. 1 Loosen the locking screws A and the fixing screws E, Slide the unit within the cement box firmly to one side and re-tighten the screws.
