FHC SPT1G Installation

SHOWER CLAMP TEMPLATE
GLASS CLAMPS
180 Degree Glass-to-Glass Mount

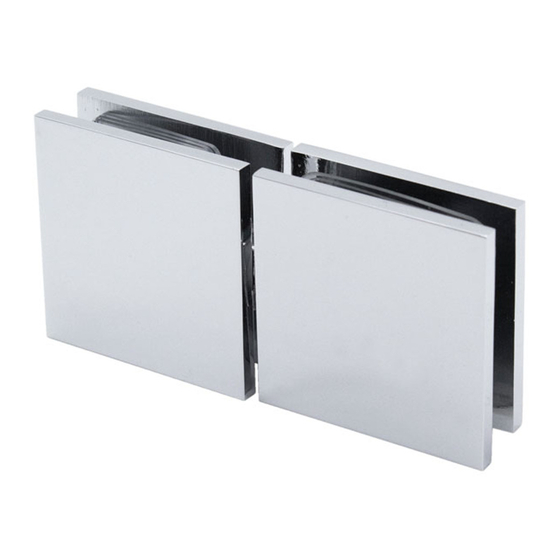

Pivotable Transom Clamp Square Profile
ITEM NO. SPT1G
SPECIFICATIONS
Glass Sizes:
3/8" to 1/2" (10 to 12 mm) Tempered Glass Only
Construction: Solid Brass
Cutout Required:
Cutout No. SD31
Includes: Clamp body, glazing gaskets, mounting screws,
and fabrication template.
Use: Residential Bath and Commercial Hotel Applications
GASKET SPECIFICATIONS:
For 3/8" (10mm) Glass: Use One Thick Gasket On Each Side
For 1/2" (12mm) Glass: Use One Thin Gasket On Each Side
GLASS INSTRUCTIONS:
Only use tempered safety glass. To prevent damage to the clamp finish
during installation, do not use power tools when installing these clamps.
Maximum transom size not to exceed 18" x 32". Note: To prevent binding
during normal pivoting transom operation, during installation insure the
transom clamps are centered and aligned properly.
CARE & CLEANING GUIDELINES:
For best results, keep the following recommendations in mind when
caring for your FHC shower door hardware. Your shower door hardware
should be dried daily with a soft towel or cloth to insure its original finish.
Do not use harsh cleaners or chemicals on the hardware, as many of the
components are coated with a clear lacquer that will become damaged
beyond repair. Always test your cleaning solution in an inconspicuous area
prior to cleaning the entire hardware surface. Wipe surfaces clean using
a soft dampened cloth or sponge and rinse completely with warm water
immediately after applying the cleaning solution. Use only small amounts
of liquid, gentle cleaner. Never use abrasive products, sponges, or wire
scrub brushes while cleaning hardware.
FRAMELESS HARDWARE COMPANY P.O. Box 1906, South Gate, CA 90280

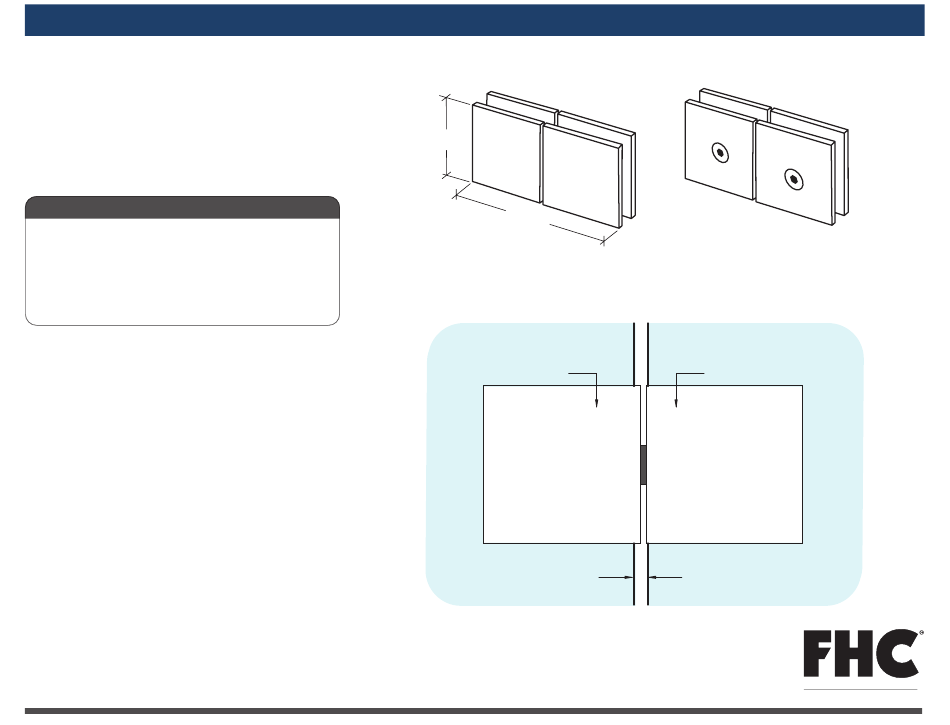

Front View
2"
4-1/8"
TYPICAL INSTALLATION
FIXED GLASS PANEL
Fixed Side Panel
Toll Free: (888) 295-4531 | Fax: 323 336-8307 | Web: fhc-usa.com
PROFESSIONAL GRADE
Rear View
PIVOTABLE
TRANSOM GLASS
Movable Transom Side
7/32" (5.5 mm) Gap
FRAMELESS HARDWARE COMPANY
T H E G L A Z I N G S U P P L Y
FHC-USA.COM
LIT0027 12.10.19 PG 1 OF 2
