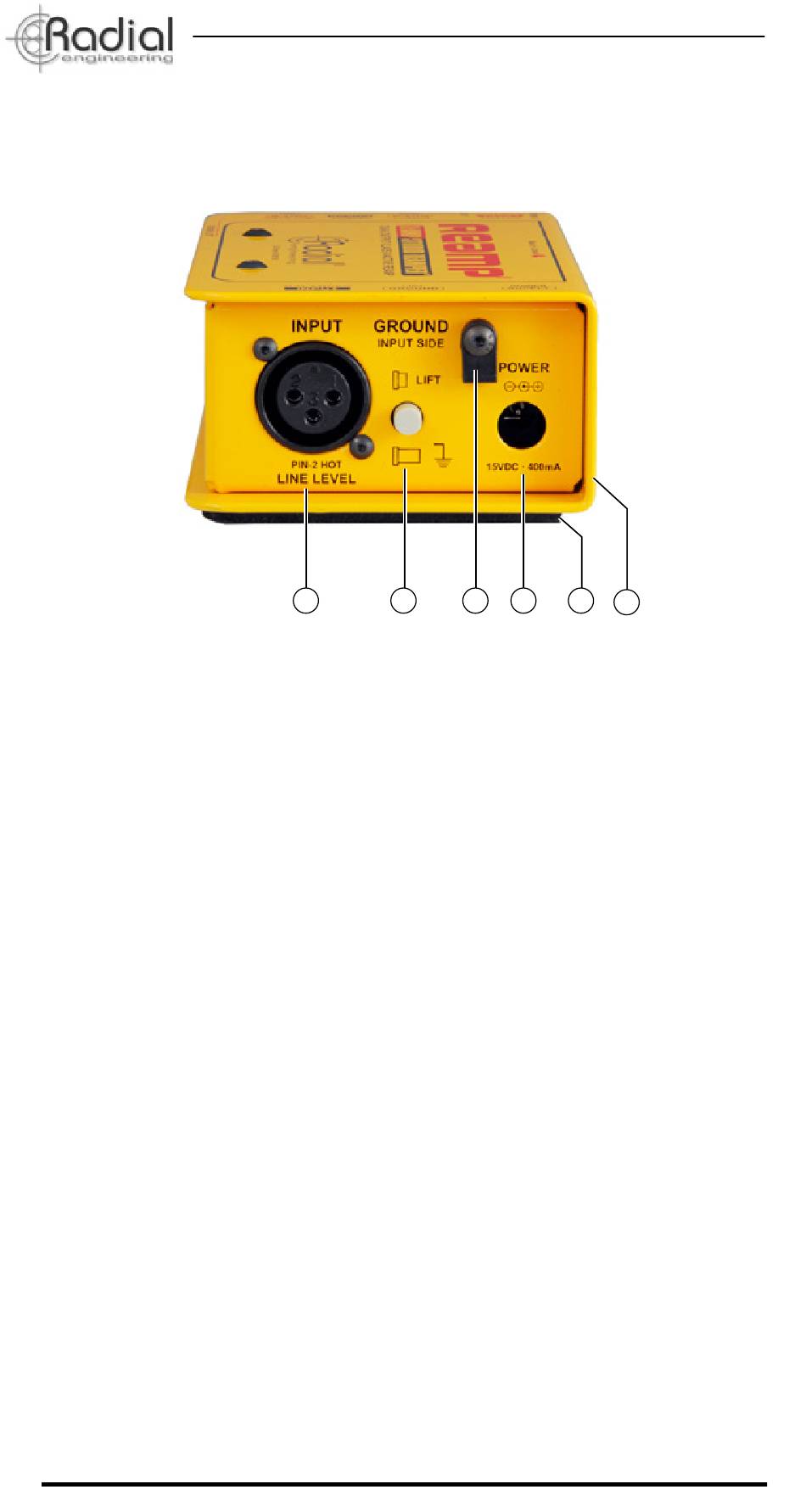

FEATURE SET: INPUT PANEL
1. LINE LEVEL XLR INPUT: The input to the Radial X-Amp is a
balanced line level female XLR. This is typically fed from the output
of a recording device or mixing console. The XLR connector is wired
with pin-2 hot following the AES standard.
2. GROUND: A ground lift switch disconnects pin-1 ground at the XLR
input. Depressing this switch assumes you will be providing a ground
path via the OUT-1 to your amplifier. Lifting the ground often helps
reduce hum or buzz caused by so-called ground loops.
3. CABLE CLAMP: Used to secure the power supply cable and prevent
accidental power disconnection.
4. POWER: The 15VDC power supply is connected here. Plug in to
activate the X-Amp.
5. FULL-BOTTOM NO-SLIP PAD: Provides mechanical isolation to
reduce slipping and electrical isolation from amplifier frames and
handles.
6. BOOKEND DESIGN: 14 gauge steel outer shell creates a protective
zone around connectors and switches. Internal welded I beam
construction for maximum durability.
7. POWER LED INDICATOR: The power
illuminate when the 15VDC supply is connected.
Radial Engineering Ltd.
1 2
2
True to the Music
3 4 5
6
LED will immediately
X-AMP Reamper™
