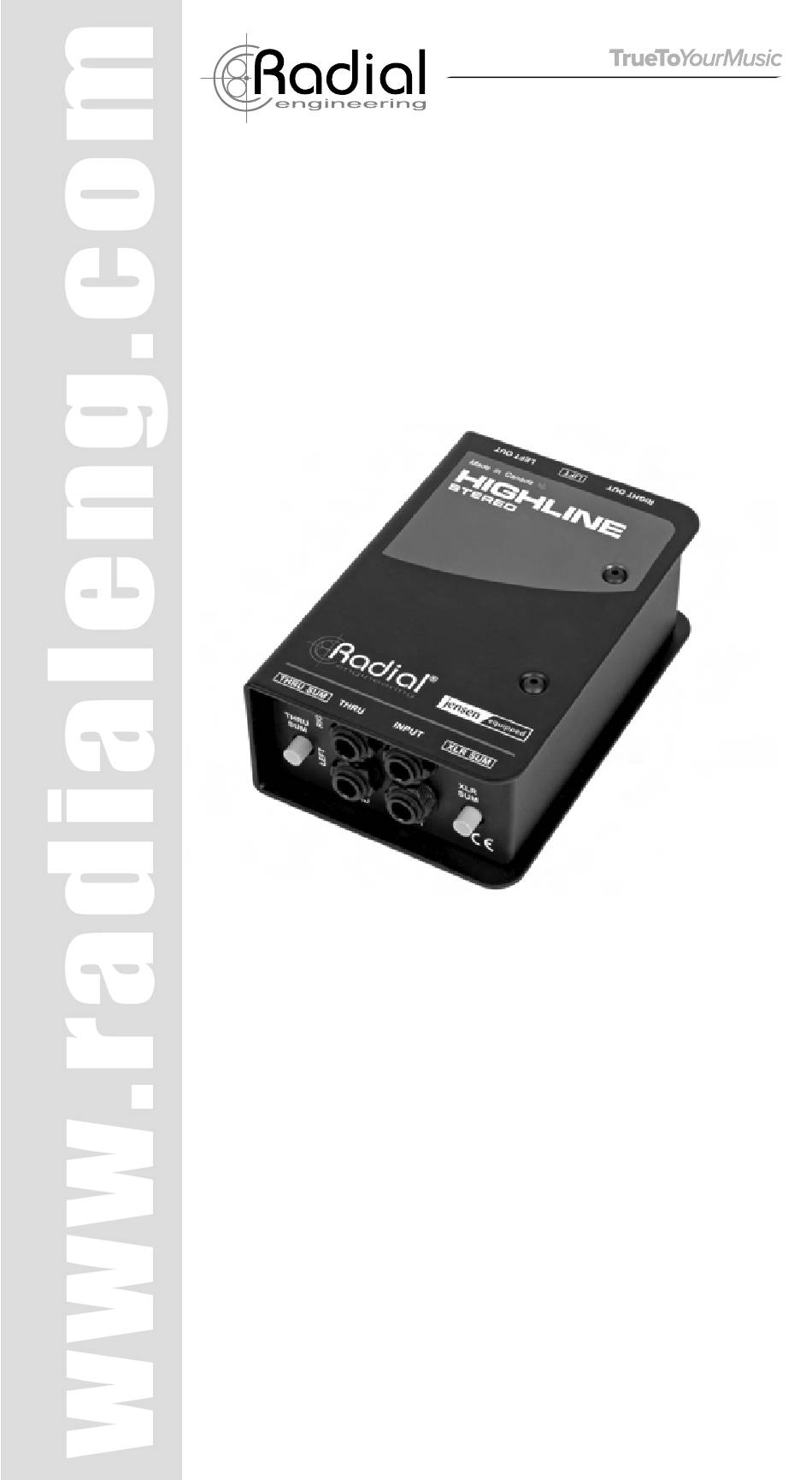

- Page 1 ® HIGHLINE STEREO PASSIVE LINE ISOL ATOR User Guide Radial Engineering Ltd. 1165-1845 Kingsway Ave, Port Coquitlam British Columbia, Canada, V3C 0H3 Tel: 604-942-1001 • www.radialeng.com Email: info@radialeng.com...
-
Page 2: Table Of Contents
We recommend you take a few minutes to read this short manual before you begin using the Highline Stereo, as it covers the various features of the device and tips for setup and use. Should you have any questions about the Highline Stereo or any other Radial devices, please visit our website at www.radialeng.com... -
Page 3: Overview
PA. Some are even vulnerable to damage from 48V phantom power, should it be accidentally engaged at the PA mixer. The Highline Stereo is a line isolator designed to specifically address these issues and seamlessly interface any amp simulator with a PA system. -
Page 4: Features
XLR outputs, allowing you to reduce your channel count at the PA. OUTPUT: Left and right XLR outputs provide balanced & isolated signals for feeding the inputs of a mixer. LIFT: Ground lift switch eliminates hum and buzz from ground loops. Radial Engineering Ltd. Highline Stereo™... -
Page 5: Getting Started
¼" TS ¼" TRS The Highline Stereo ships with a neoprene pad that can be affixed to the bottom of the unit to prevent it from sliding around. To attach, simply peel off the plastic backing and place it on the bottom of the Highline, making sure to line up the holes in the pad with the screws on the chassis. -
Page 6: The Lift Switch
The Highline Stereo will deliver your tone to the mixer without any signal loss or change in tone, while the Jensen transformers on board will isolate your pedalboard from the PA in order to reduce the chance of ground loop noise and protect your gear against 48V phantom power from the mixer. -
Page 7: The Thru Sum Switch
This allows you to change your outputs from gig to gig without having to reconfigure any settings on your pedalboard. The XLR Sum switch Using the XLR Sum switch to feed a mono signal to the PA Radial Engineering Ltd. Highline Stereo™... -
Page 8: Specifications
Size (L x W x D): ....... 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) Power: ..........Passive, no power required Conditions: ..........For use in dry locations only between 5°C and 40°C Warranty: .......... Radial 3-year, transferable * Subject to change without notice. Radial Engineering Ltd. Highline Stereo™... - Page 9 1165-1845 Kingsway Ave, Port Coquitlam, British Columbia, V3C 0H3 Tel: 604-942-1001 • www.radialeng.com • info@radialeng.com Radial ® Highline Stereo User Guide - V1.0, 01-2025 - R870 1278 00 Copyright 2025 Radial Engineering Ltd. All rights reserved. Specifications and appearance subject to change without notice.
