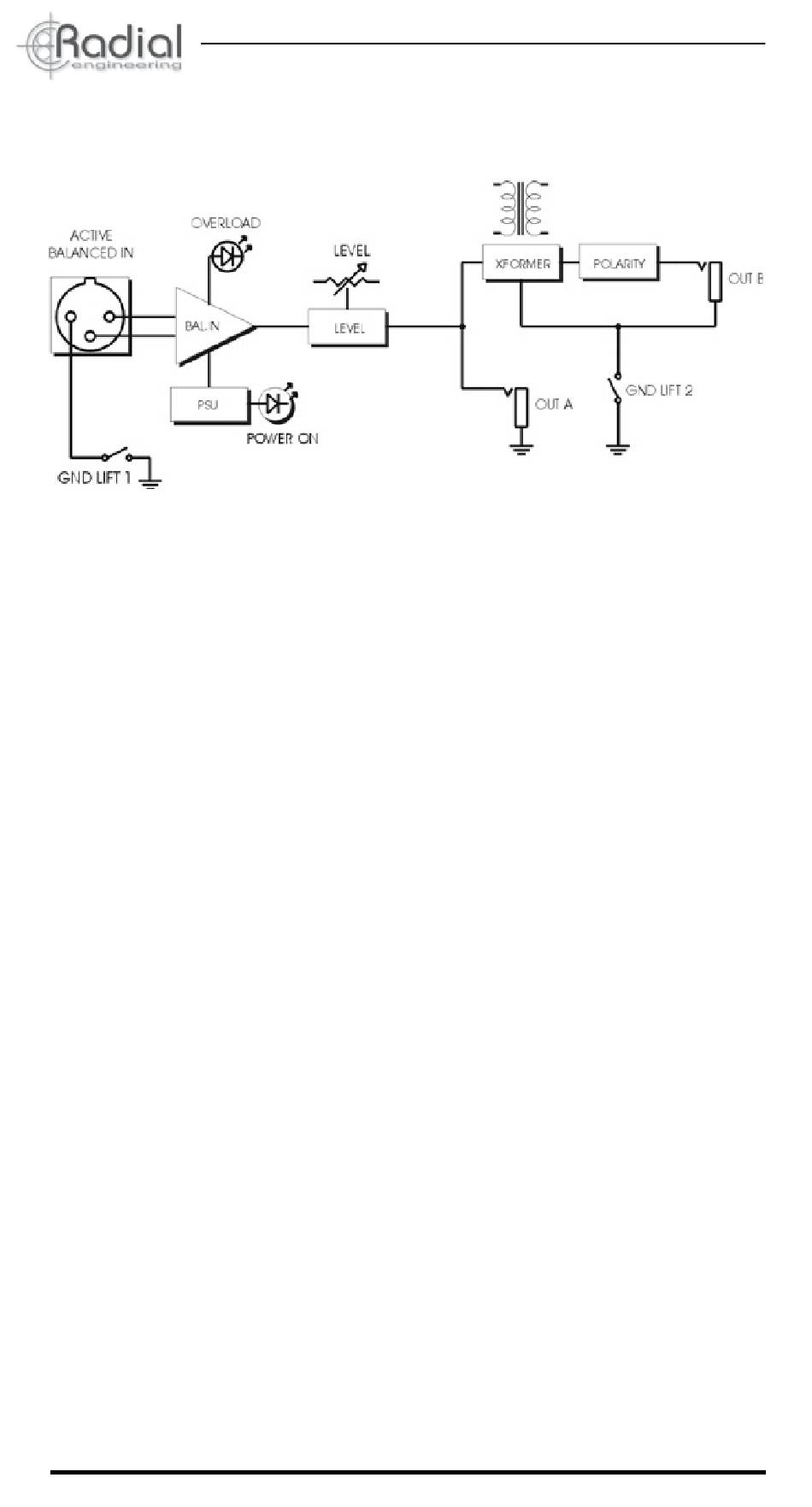

BLOCK DIAGRAM

SPECIFICATIONS*

Audio circuit type: ...................................................................100% discrete class-A
Frequency response: ...........................................................20Hz ~ 15kHz (± 1.0dB)
Signal to noise ratio: ...................................... 88dB below instrument level (-20dBu)
Dynamic range: ............................................................................................... 119dB
Noise floor: .............................................................. OUT-1 -110dB; OUT-2 -108dBu
Maximum input: .............................................................................................+22dBu
Total harmonic distortion:................................................................0.02% @ -15dBu
Inter-modulation distortion: .............................................................0.02% @ -20dBu
Input impedance: .............................................................................................. 600Ω
XLR input: .......................................... Balanced line-level, AES standard (pin-2 hot)
Ground lift (input): ...............................................Disconnects pin-1 at the XLR input
Output level: ............................................................................................. Adjustable
Output type: ......... High-Z instrument-level, Out-1 direct, Out-2 transformer isolated
Polarity:...................................................................... 180º polarity reverse on Out-2
Power: ..................................................................+15VDC/400mA adapter included
Construction: .................... 14 gauge steel chassis & outer shell, powder-coat finish
Size:..................................................................... 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight: ................................................................................................. 1.55lb (720g)
Shipping Size:...................................................... 5"x2.75"x10.75" (127x70x273mm)
Shipping Weight: ................................................................................. 2.6lb (1.18kg)
Conditions:...............................For use in dry locations only between 5°C and 40°C
Warranty: ......................................................................... Radial 3-year, transferable
*Specifications are subject to change without notice.
9
