Although the Shotgun is super easy to use, we ask that you please take a couple of minutes to go through this short manual. This will not only help you maximize your tone, it will ensure you get the most out of the Shotgun with your setup. -
Page 4: Features
3. OUT-2, 3 & 4: Transformer isolated outputs to eliminate ground loops and help reduce hum and buzz. 4. IN-1 MONO: When used alone, sets the Shotgun to the 1x4 mono mode with input-1 driving all four outputs. 5. IN-2 STEREO: When used, changes the circuit from 1x4 mono to 2x2 stereo to allow stereo sources such as a chorus to drive 1 or 2 sets of amps. -
Page 5: Overview

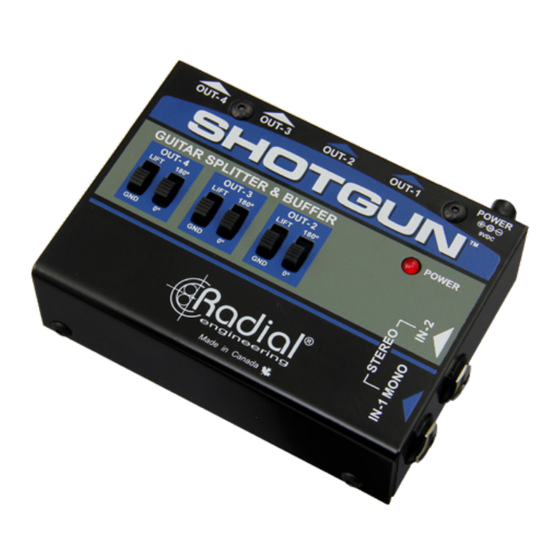

Technically speaking, the Shotgun is a unity gain guitar distribution amplifier. Simply put, it lets you drive several guitar amps at the same time without messing with your gain structure. What is particularly cool about the Shotgun is that it can be used either as a 1x4 (mono) distro or a 2x2 (stereo) distro depending on how it is connected. -
Page 6: Making Connections
Once the signal has passed through the Shotgun, longer cables may be used as the Shotgun will buffer the signal and lower the impedance to enable cable distances up to 15 meters (50') without appreciable noise. The Shotgun is a unity gain device. - Page 7 As Radial Engineering Ltd. is unable to control what is being connected to the Shotgun, you agree to take full responsibility for its safe use and agree that Radial Engineering Ltd. along with its staff and directors shall not be held responsible in any way for damages of any kind other than those clearly detailed in the Radial Warranty.
-
Page 8: Using The Polarity Reverse
3 and 4 – always using amp-1 as the reference. OUT-1 OUT-2 Select 180º to reverse the phase of the output going to the amp to bring the two amps in phase. Amp 1 Amp 2 Radial Engineering Ltd. Shotgun™ User Guide... -
Page 9: Using In Stereo
Simply connect the left and right outputs from your chorus to the Shotgun’s 1 and 2 inputs. Once connected to input-2, the Shotgun will automatically shift from mono-mode to stereo-mode. When in stereo-mode, input-1 is routed to outputs 1 and 2, while input-2 is routed to outputs 3 and 4. -
Page 10: Extreme Application
PUSHING THE SHOTGUN TO THE EXTREME Experiment with using multiple outputs with your setup. Create unique tones by having two effect chains in parallel then merge them together using the Mix-Blender™. Have fun! Effects A Effects B Tuner Radial Engineering Ltd. -
Page 11: Specifications
Intermodulation distortion: ........................... ~0.02% (-20dB) Power: ..............................9V Adapter / 50mA Construction: ............................... Steel Enclosure Size: (LxWxD) ..................... 4.5" x 3.62" x 1.37" (114.3 x 91.95 x 34.80mm) Weight: ................................1.1lb (.49kg) Warranty: ............................ Radial 3-year, transferable Radial Engineering Ltd. Shotgun™ User Guide... - Page 12 3 YEAR TRANSFERABLE WARRANTY RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding finish and wear and tear on components under normal use) for a period of three (3) years from the original date of purchase.
