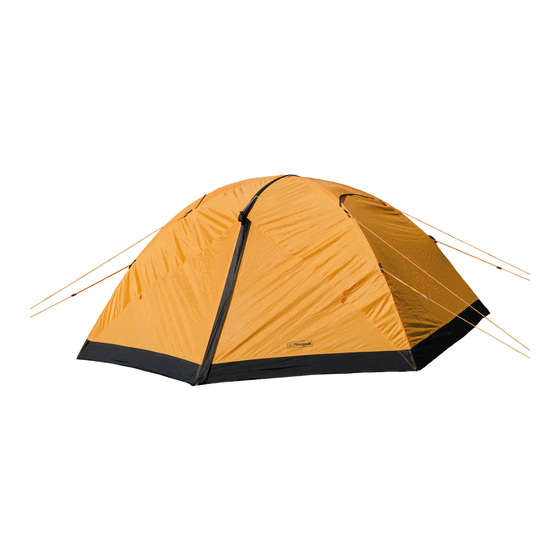

Snugpak JOURNEY TRIO Assembly Instructions

JOURNEY TRIO
THREE PERSON TENT
Assembly Instructions
x2 large Silver Tip
x1 small Orange Tip
4
1
5
5
x14 Alloy Stakes
Lay the footprint down before
erecting the tent.
First unroll the inner shelter
and locate the pole bag and
separate the poles, clip the
sections together to make a
continuous pole, the poles are
held together by elastic to help.

Pole Placement

1. Clip the tent inner to the
Silver tipped pole with the
black plastic clips.
2. Clip the tent inner to the
other Silver tipped pole
with the black plastic
clips.
3. Insert the tent pole ends
into the grommets in the
corresponding webbing
straps.
4. Clip the two Silver tipped
poles together with the
Large clip on hook.
5. Once all the pole ends are
inserted into the grommets
then take the Ultralight
Alloy Stakes that came
with the Journey Trio and
stake down the corners
with the webbing straps.
Add additional stakes
3
to other stake points as
needed.
6. At this stage the Journey
Trio can be used as a stand
alone insect shelter, if so
desired.
