Snugpak JOURNEY QUAD Assembly Instructions

JOURNEY QUAD
FOUR PERSON TENT
Assembly Instructions
x2 Silver Tip
x1 Large Orange
Tip
2
4
3
1
5
x20 Alloy Stakes
Lay the footprint down before
erecting the tent.
First unroll the outer shelter
and locate the pole bag and
separate the poles, clip the
sections together to make a
continuous pole, the poles are
held together by elastic to help.

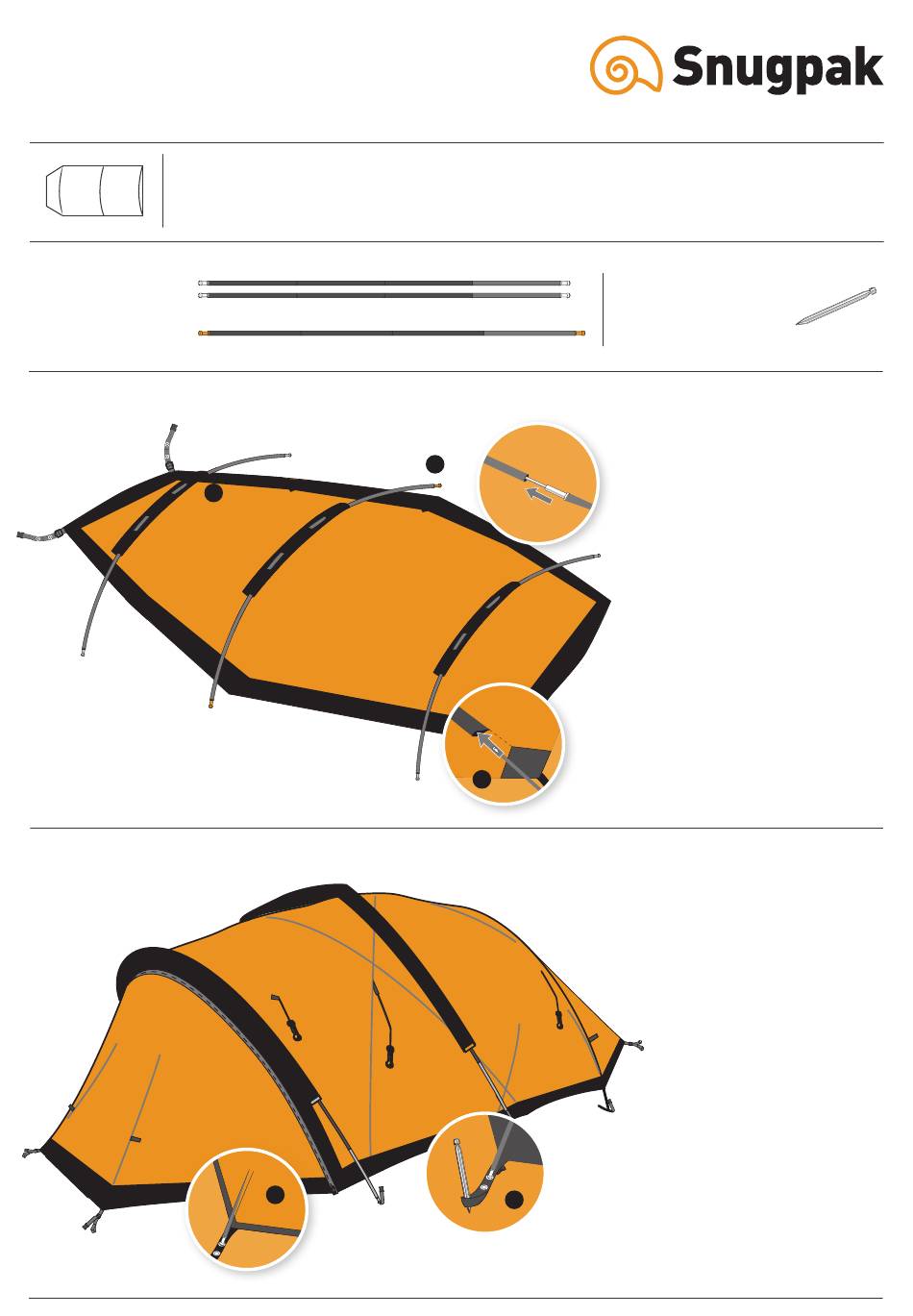

Pole Placement

1. Insert the Silver Tip Pole
with Silver section to
Silver trim edging.
2. Insert the other Silver Tip
Pole with Silver section to
Silver trim edging.
3. Insert the Large Orange Tip
Pole with Silver section to
Silver trim edging.
4. Insert the tent pole ends
into the grommets in the
corresponding webbing
straps.
5. Once all the pole ends are
inserted into the grommets
then take the Ultralight
Alloy Stakes that came
with the Journey Quad and
stake down the corners and
the webbing straps with
grommets. Add additional
stakes to other stake
points as needed.
