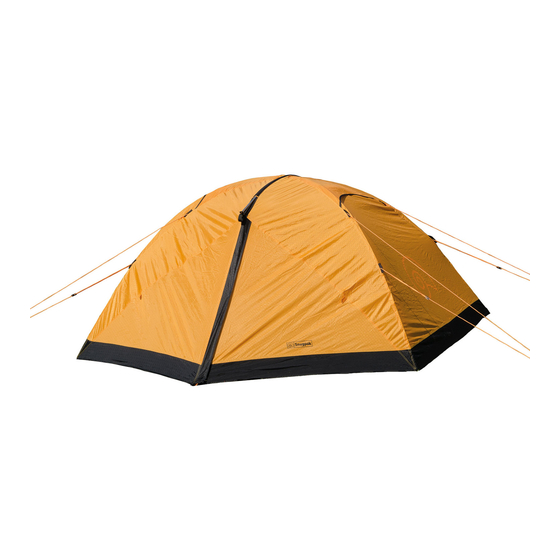

JOURNEY TRIO
THREE PERSON TENT
Assembly Instructions
2 Silver Tipped Poles
1 Orange Tipped Pole
4
1
5
5
14 Alloy Stakes
Lay out the footprint before
erecting the tent.
Unroll the inner tent and locate
the pole bag, separate the poles,
clip the sections together making
continuous poles. The poles are
held together by elastic.
Pole Placement
1. Clip the inner tent to the
silver tipped pole with the
black plastic clips.
2. Clip the inner tent to the
other silver tipped pole
with the black plastic
clips.
3. Insert the pole ends
into the grommets in the
corresponding webbing
straps.
4. Clip the two silver tipped
poles together with the
large clip on hook.
5. When all the pole ends are
inserted into the grommets
take the ultralight alloy
stakes included
the Journey Trio, stake
down the corners with
the webbing straps. Add
additional stakes to other
3
stake points as required.
6. At this stage the Journey
Trio can be used as a stand
alone insect shelter, if so
desired.
with
Advertisement
Related Manuals for Snugpak JOURNEY TRIO
Summary of Contents for Snugpak JOURNEY TRIO
- Page 1 5. When all the pole ends are inserted into the grommets take the ultralight alloy stakes included with the Journey Trio, stake down the corners with the webbing straps. Add additional stakes to other stake points as required. 6. At this stage the Journey...
- Page 2 JOURNEY TRIO THREE PERSON TENT Assembly Instructions 7. Take out the fly (Outer Tent) unfold and lay out. 9. Insert the orange tipped pole into the orange Drape the fly over the main body matching up the door trimmed edging and foot area, connect the two with the velcro loops.
