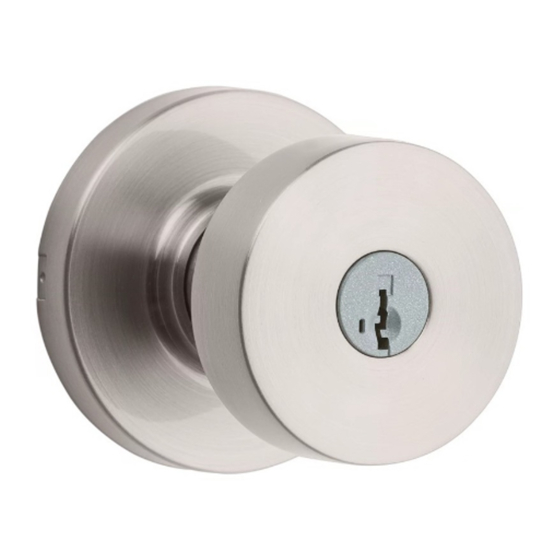

Kwikset Prismo 740PSK RDT 15 SMT Installation Manual

Kwikset Prismo 740PSK RDT 15 SMT Installation Manual

Advertisement

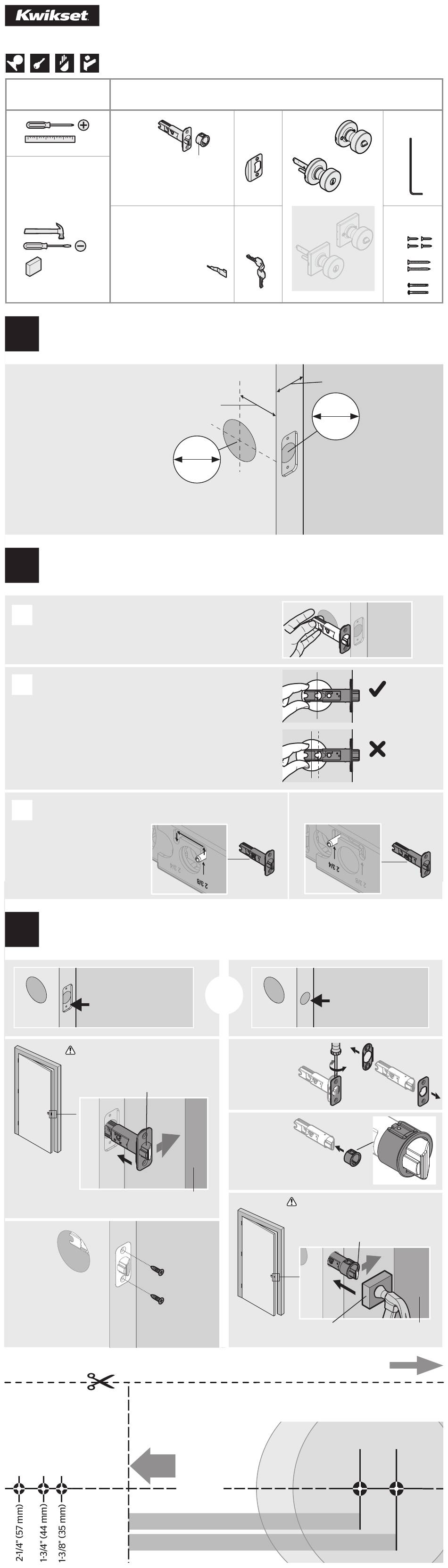

69926-001 Rev 01
Required tools
Herramientas necesarias
Additional tools
(if needed)
Herramientas
adicionales (si es
necesario)
wood block
bloque de
madera

Prepare door and check dimensions

1
Prepare la puerta y revise las dimensiones
If drilling a new door, use
the supplied template and
the complete door drilling
instructions available at
kwikset.com/doorprep
Si va a perforar una puerta
nueva, utilice la plantilla
suministrada y las instrucciones
completas para la perforación
de la puerta estan disponibles
en kwikset.com/doorprep

Adjust the backset of the latch (if needed)

2
Ajuste la distancia al centro del pestillo (si es necesario)
Hold the latch in front of the door hole, with
A
the latch face flush against the door edge.
Sostenga el pestillo en frente del orificio de la puerta,
con la cara del pestillo al ras con el borde de la puerta.
If the latch holes are centered in the door hole,
B
no adjustment is required. Proceed to step 3.
If the latch holes are NOT centered, adjust
latch. See "Latch Adjustment" (step 2C).
Si los orificios del pestillo están centrados con el orificio
de la puerta, no se requiere ajustarlo. Vaya al paso 3.
Si los orificios del pestillo NO están centrados, ajuste
el pestillo. Consulte "Ajuste del pestillo" (el paso 2C).

Latch Adjustment (only if needed)

C
Ajuste del pestillo (si es necesario)
Move the pin to
extend the latch.
Mueva el pasador para
extender el pestillo.

Install latch

3
Instale el pestillo
slant of latch bolt
faces door frame
la inclinación del perno queda
enfrentada al marco de la puerta
Drilling Template
Plantilla de perforación
Edge of the door
Borde de la puerta
Parts in the box
Piezas en la caja
Latch
Pestillo
A
Not required for all
applications
No se requiere para
todas las aplicaciones
SmartKey® tool
(SmartKey locks only)
Herramienta SmartKey
(las cerraduras de
SmartKey solamente)
2-3/8" (60 mm)
or • o
2-3/4" (70 mm)
54 mm
Door edge chiseled
La puerta con el
borde cincelado
A
door frame
L (x2)
Las instrucciones continúan en el reverso de la hoja
Template is only needed if a new hole must be drilled in the door.
Face of the door
Frente de la puerta
Fold
Doble
Centerline
Linea central
2-3/8" (60 mm)
2-3/4" (70 mm)
Backset •
Distancia al centro
Strike
Placa
B
C
Keys
Llaves
D
2-1/8"
or
o
Remove plates.
Remueva las placas.
Install drive-
in collar.
Instale el aro
de empuje.
marco
Instructions continue on reverse
La plantilla solo se necesita en caso de que deba
perforarse un nuevo orificio en la puerta.
Installation Guide
Guía de instalación
1-800-327-5625 • www.kwikset.com
Knobs
Perillas
G
F
Optional
Opcional
J
E
H
1-3/8"–2-1/4"*
35 mm–57 mm*
1"
25 mm
*Call Kwikset to order
a service kit for 2-1/4"
(57 mm) thick doors.
*Llame a Kwikset para ordenar
un kit de servicio para puertas
gruesas con un espesor
Kwikset
de entre 57 mm (2-1/4").
A
Door edge NOT
chiseled
La puerta sin el
borde cincelado
A
B
slant of latch bolt
faces door frame
la inclinación del perno queda
enfrentada al marco de la puerta
wood block
bloque de madera
Allen wrench
Llave Allen
K
Screws
Tornillos
L
M
N
centered
centrado
not centered
no centrado
door frame
marco
