Field Replacement Procedure

Brief Summary:

Troubleshooting document for inspecting and replacing the BUC on the SAILOR 800 antenna.

Theory of Operation:

The BUC converts the L-band Intermediate Frequency (IF) up to Ku-band radio signal, and amplifies it to transmit
power level. It receives transmit signal and power from VIM.
Troubleshooting:

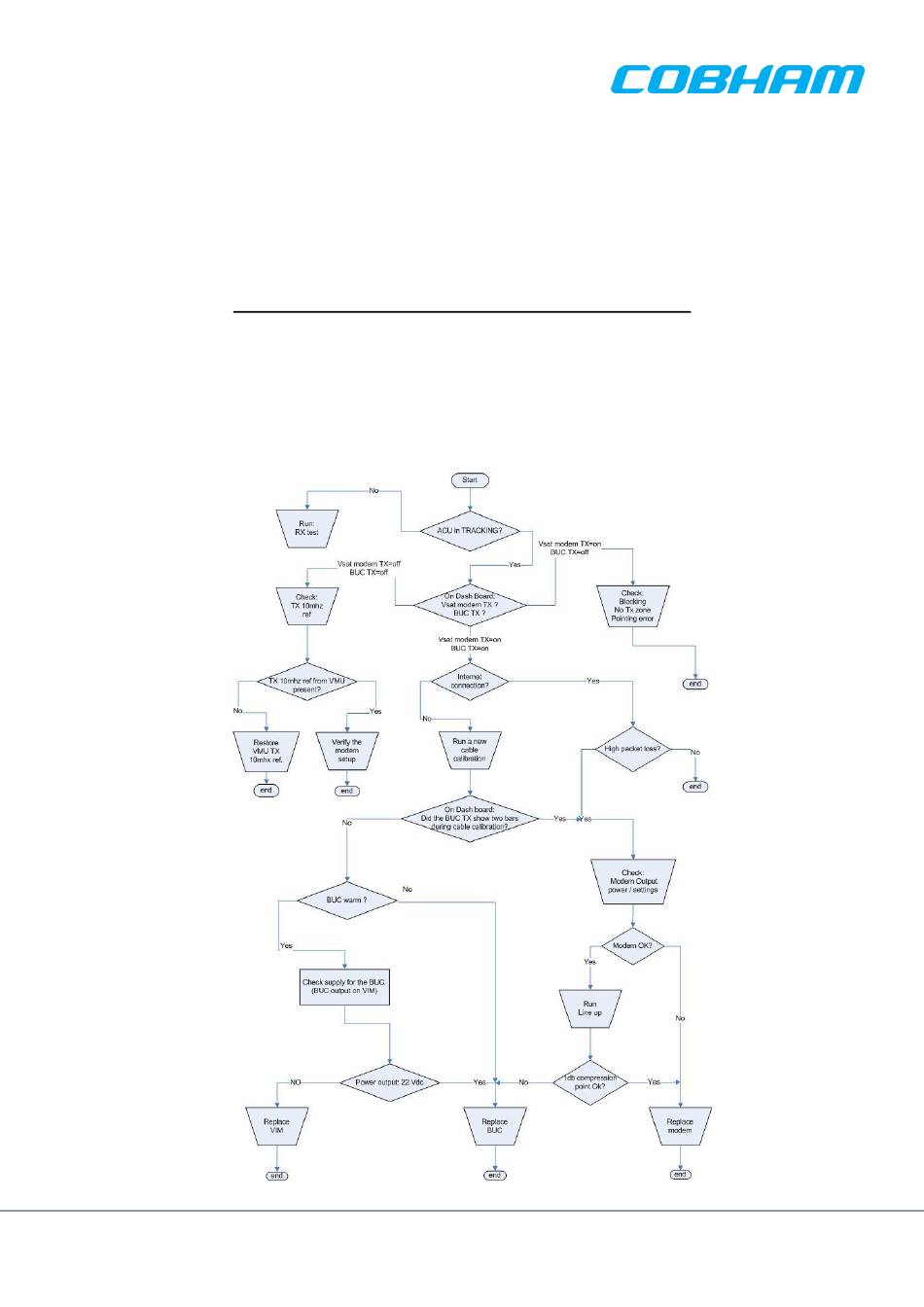

TX Test SAILOR 800
Following legal entities are trading as / doing business as Cobham SATCOM
Thrane and Thrane A/S, Kgs. Lyngby, Denmark
Sea Tel Inc., Concord USA
TracStar Systems Inc., Orlando, USA
Omnipless Manufacturing (Pty) Limited, Cape Town, RSA
SAILOR 800 VSAT – 6W BUC replacement procedure
Cobham SATCOM
Global Customer Service dept.
Document no.: 97-149715-A
Revision: A
Date: 10-12-2015
www.cobham.com/satcom
