Assembly Instructions

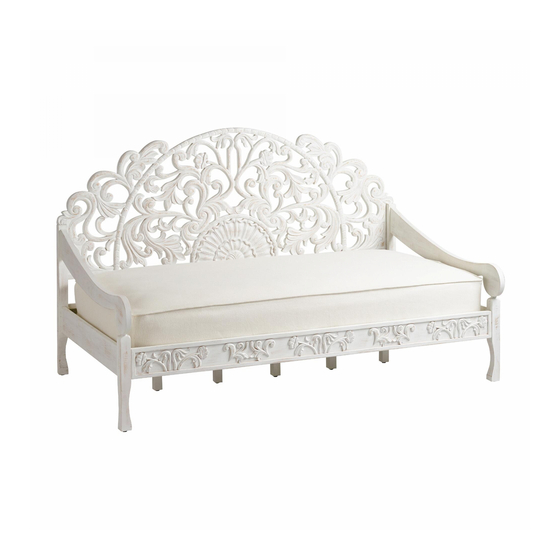

Zarah Carved Daybed
SKU-536681
THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
Page 1
Advertisement
Table of Contents
Related Manuals for World Market Zarah 536681
Summary of Contents for World Market Zarah 536681
- Page 1 THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List LABEL PICTURE DESCRIPTION Headboard Right Arm Left Arm Front Rail Back Rail Center Slat End Slat Support Leg Mattress Panel Metal Support Page 2...
- Page 3 Hardware List LABEL PICTURE DESCRIPTION Hex Bolt M8 x 20mm Spring Washer Ø13 x M8 Flat Washer Ø17 x M8 Bolt M6 x 20mm Tool List LABEL PICTURE DESCRIPTION Wrench Allen key Page 3...
- Page 4 Assembly Preparation Before Beginning : • Unpack all hardware bags and components to ensure you have all parts- • Read instructions, cover to cover- • Have 2 adults on hand for assembly- • Do not assemble on flooring or carpet- •...
- Page 5 Assembly Steps STEP 1 : Assembling Rails and Arms (H-1) Hex Bolt x 8 (H-2) Spring Washer x 8 (H-3) Flat Washer x 8 Attach Front Rail (D) and Back Rail (E) to Right Arm (B) Secure with Hex Bolt (H-1), Spring Washers (H-2) and Flat Washers (H-3) Tighten using Wrench (T-1).
- Page 6 Assembly Steps STEP 3 : Assembling Slats and Support Legs Leveler Attach center support leg as shown above turn leg clockwise until tight. Leveler is available if needed to help support and stabilize the daybed. only Center Slat (F) have wooden dowel. STEP 4 : Assembling Mattress Panel Place the mattress panel as shown above.
- Page 7 Care & Maintenance Page 7...
