HID Signo 25B Installation Manual

INSTALLATION GUIDE

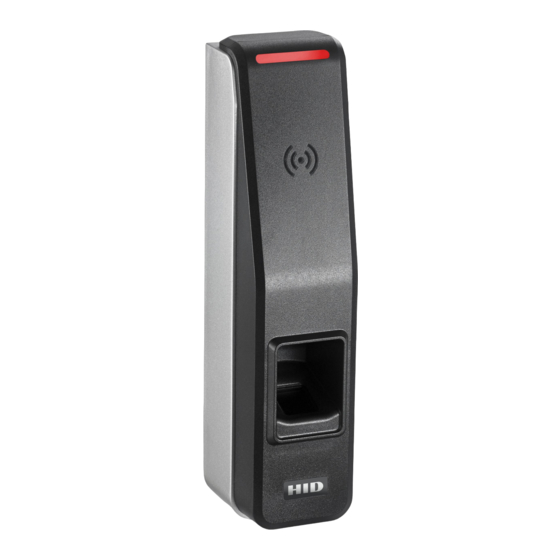

HID® Signo™ 25B
Biometric Reader/Controller
13.56 MHz / 2.4 GHz Contactless
SRD Model: Signo 25B
www.hidglobal.com/PLT-04027
ƒ Scan the QR code or visit the link to
see the multi-language electronic
version of this document.
ƒ Lisez le code QR ou suivez le lien pour
consulter la version française de ce
document.
ƒ Escanee el código QR o visite el
vínculo para consultar la versión en
Español de este documento.
ƒ Scannen Sie den QR-Code oder öffnen
Sie den Link für die deutsche Version
dieses Dokuments.
Supplied parts
ƒ HID Signo Biometric Reader/Controller 25B (1)
ƒ Installation Guide (1)
ƒ Screw (1) – for attaching the reader to the backplate
Recommended parts (not supplied)
ƒ Cable, 5-9 conductor (Wiegand), 4 conductor Twisted Pair Over-All Shield and
UL approved, Belden 3107A or equivalent (OSDP)
ƒ Certified LPS DC power supply
ƒ Security tool HID 04-0001-03 (for anti-tamper screw)
© 2019 - 2020 HID Global Corporation/ASSA ABLOY AB. All
rights reserved. HID, the HID Brick logo, the Chain Design,
HID Signo, HID Biometric Manager, and HID Mobile Access are
trademarks or registered trademarks of HID Global, ASSA ABLOY
AB, or its affiliate(s) in the US and other countries and may not
be used without permission. All other trademarks, service marks,
and product or service names are trademarks or registered
trademarks of their respective owners.
Optional Features
Open Collector Output – Controls an external device (5 VDC) operating in Host
Mode only. Sink 40 mA / Source -1 mA.
Optical Tamper – If connected via the pigtail wires, the optical tamper will sink to
ground from the default of 5 VDC when the reader is removed from its backplate.
Relay Output – Typically used to control a strike lock. Three contacts are available
on the pigtail wires (common, normally open, and normally closed).
Wiegand Reader Interface – There is Wiegand output available, as marked on the
pigtail wires. Configuration options are available within HID Biometric Manager™.
1
Mount the backplate
1
2
hi dg l ob a l .com
PLT-04026 Rev. B.1
ƒ Faça a leitura do código QR ou acesse
o link da versão em português deste
documento.
ƒ Scansiona il codice QR o visita il
link della versione Italiana di questo
documento.
ƒ Отсканируйте QR-код или пройдите по
ссылке, чтобы получить версию этого
документа на русском языке.
ƒ 扫描 QR 码或访问此 文档的中文版本的链接。
ƒ この文書の日本語版を表示するには、 QR コー
ドをスキャンするか、 リンクを クリ ックします。
ƒ QR 코드를 스캔하거나 링크를 방문하면 이
문서의 한국어 버전을 볼 수 있습니다.
ATTENTION
Observe precautions for handling
ELECTROSTATIC SENSITIVE DEVICES
Screws not supplied.
An ASSA ABLOY Group brand
2
Wire the 25B
Function
Group
RS-485
Pigtail wires
18" (0.46m)
Relay
Inputs
(Controller
mode only)
Wiegand
Port
DC Power
Ethernet cable
18" (0.46m)
Function
Group
Network
1 RS-485 = Max bus length 4,000 ft - 24 AWG (1,219 m)
Max length between nodes: 1,640 ft - 24 AWG (500m)
IMPORTANT: The 19 pigtail wires should be cut to size for wall mounted application.
IMPORTANT: DO NOT cut the Ethernet cable.
Note: Wiring the reader incorrectly may permanently damage the reader.
3
Secure the 25B to the backplate
1
2
1
4
Power and test the reader
5
Download and install HID Biometric Manager
https://www.hidglobal.com/signo25b
Visit
download the HID Biometric Manager Installer. Once
the .exe file has downloaded, double-click the file to
install HID Biometric Manager, following the on-screen
prompts.
For further details, refer to the HID Signo Biometric
Reader/Controller 25B Administration Guide
(PLT-04029), which is available for download from
https://www.hidglobal.com/signo25b
Wire Color Function AWG
Green RS-485 A
Tan RS-485 B 24
Black RS-485 Ground
Gray Relay – Common
Relay – Normally
Yellow
Open
Relay – Normally
Orange
Closed
REX Input
Pink
(Supervised)
DPS Input
Gray
(Supervised)
22
Black Input Ground
Green D0
White D1
Brown RED
Orange Green
Yellow BUZ
Blue Hold
Violet TPR
Black Ground
Red Power +12V
Black Power Ground
Connector Function Max Length
RJ45 328 ft (100 m)
Ethernet
socket (CAT5/CAT5E/CAT6)
1. Insert the reader into the backplate.
2. Latch the reader.
3. Secure the reader to the backplate
using the supplied screw.
3
Light bar.
Turn on the power.
The reader should beep and the
light bar should flash.
Test the reader with a card.
The reader should beep and the
light bar should flash.
Biometric reader (requires set up
in HID Biometric Manager)
and
Max
Length
1
4000 ft
(1,219 m)
500 ft
(152 m)
