U SE R G U I D E
iCLASS SE® Biometric Reader
RKLB40; SRD MODEL: RKCLB40E
www.hidglobal.com/PLT-03342
ƒ Scan the QR code or visit the link to see the multi-language
electronic version of this document.
ƒ Lisez le code QR ou suivez le lien pour consulter la version française
de ce document.
ƒ Escanee el código QR o visite el vínculo para consultar la versión en
Español de este documento.
ƒ Scannen Sie den QR-Code oder öffnen Sie den Link für die deutsche
Version dieses Dokuments.
ƒ Faça a leitura do código QR ou acesse o link da versão em português
deste documento.
ƒ Scansiona il codice QR o visita il link della versione Italiana di questo
documento.
ƒ Отсканируйте QR-код или пройдите по ссылке, чтобы получить версию
этого документа на русском языке.
ƒ 扫描 QR 码或访问此 文档的中文版本的链接。
ƒ この文書の日本語版を表示するには、QR コードをスキャンするか、リンク
を クリックします。
ƒ QR 코드를 스캔하거나 링크를 방문하면 이 문서의 한국어 버전을 볼 수
ƒ
있습니다.

1. Introduction

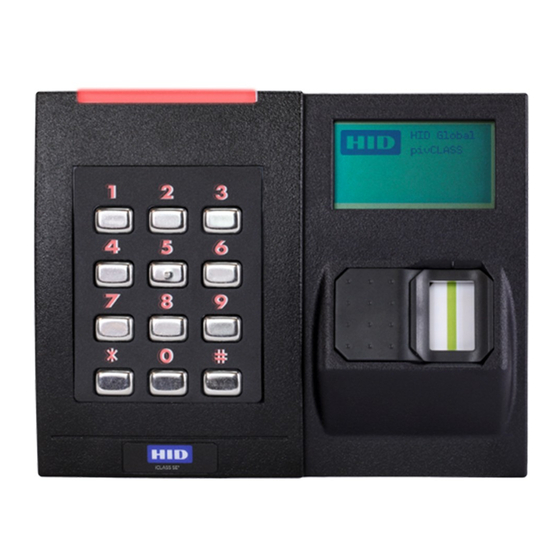

The iCLASS SE® Biometric Reader is a multi-functional reader
and enroller that can be used in a variety of locations. It is highly
configurable and allows the user to access a wide range of different
operational parameters which are outlined in this document.
The Reader has three Operational Modes. The Operational Mode
chosen is configured in the Initial Setup and will reflect how
the Reader will be used and where it will be located. The Mode
can be changed via the Administration menu (see Section 4.2.3:
Configuration Menu Functions).
ƒ Reader/Enroller Mode: Both Reader and Enroller Modes are
available.
ƒ Enroller Only Mode: Enrolls user and administration cards. It
does not process credentials to allow access control. The Reader
will typically be located in an office with secure access.
ƒ Reader Only Mode: Processes credentials. The Reader will
typically be located at a building entrance or door.
Notes:
ƒ All enrollment actions are performed locally to the Reader.
ƒ After Initial Setup, additional functionality for the chosen
Operational Mode can be accessed via the Administration menu
(see Section 2.1.4: Operational Mode).
ƒ The triangle on the display menu indicates the current default
value.
13.56 MHz Credential Compatibility
ƒ iCLASS® Seos® 8kB (iCLASS® Seos® 16kB - NOT COMPATIBLE)
ƒ Standard iCLASS® 16-32k bit Access Control Application (iCLASS
SE and 2k bit Standard iCLASS - NOT COMPATIBLE)
Biometric Authentication Compatibility
ƒ ANSI-378 template stored on iCLASS Seos credential
ƒ bioCLASS® template stored on standard iCLASS credential
(6180A enroller template - NOT COMPATIBLE)
This User Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output are fictitious.
Specifications are subject to change without notice.
© 2017 -2019 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID Brick Logo, iCLASS SE, Secure Identity Object, and Seos are trademarks or registered trademarks of HID
Global, or its licensors, in the U.S. and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
hi d g l o b a l.com

2. Initial Setup

When the Reader is first switched on, the Initial Setup menu is
displayed which will take you through the following stages:
1. Select Language, Template Type and Operational Mode (all
card types).
2. Choose Site Key (Seos® cards only).
3. Verify Admin (all card types).
Note: If Reader Initial Setup Configuration needs to be modified in
the future, two configuration cards are included with the Reader to
reset the Reader back to the Initial Setup menu. To complete Initial
Setup reset:
1. Power cycle the Reader.
2. Within the first 15 seconds of power on, present and hold
"SE BIO Initial Setup Reset Card 1" to the face of the Reader
keypad until the Reader stops beeping and the LED is solid red
or flashing blue/red.
3. Power cycle the Reader.
4. Present and hold "SE BIO Initial Setup Reset Card 2" to the
face of the Reader keypad until the Reader stops beeping and
the LED is solid red or flashing blue/red.
2.1
Initial Setup – Functional Selections

2.1.1 Select Language

Language
1. English
2. Francais
3. Español
4. < more >
1.
Power on the Reader.
2. Select the language by pressing the corresponding number on
the keypad. Example: For English, select 1.
Note: To see additional languages select 4. < more >.
Available Languages
ƒ English
ƒ Français (French)
ƒ Español (Spanish)
ƒ Deutsch (German
ƒ Português (Portuguese)
An ASSA ABLOY Group brand
PLT-02550, Rev A.4
ƒ Italiano (Italian)
ƒ Русский (Russian)
ƒ 中文 (Chinese)
ƒ 日本語 (Japanese)
ƒ 한국어 (Korean)
