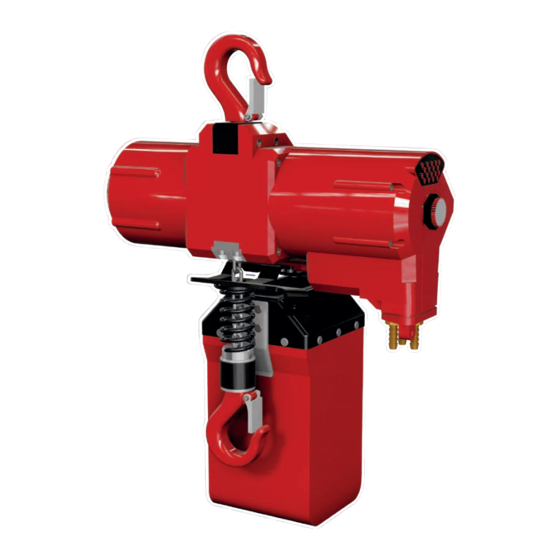

RED ROOSTER TCS-500-LF User Manual

Lube free air hoist
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LUBE FREE AIR HOIST
USER MANUAL
MODEL - TCS-500-LF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCS-500-LF and is the answer not in the manual?

Questions and answers

Related Manuals for RED ROOSTER TCS-500-LF

Summary of Contents for RED ROOSTER TCS-500-LF

  • Page 1 LUBE FREE AIR HOIST USER MANUAL MODEL - TCS-500-LF...

  • Page 3: Table Of Contents

    SECTION 12: DATA SHEET SECTION 13: DRAWINGS & PARTS LIST SECTION 14: ACCESSORIES SECTION 15: LOG BOOK M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 4 CAUTION Failure to follow this instruction may result in premature wear of the hoist or a component part of the hoist M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101...

  • Page 5: Unpacking & Specification

    Do not proceed with installation if the goods are damaged. Ensure that a certificate of test and thorough examination together with a ‘CE’ certificate of conformity is included with the goods. Hand these to the ‘responsible person’ for safe keeping. Check that the identifying mark (serial no), the safe working load (lifting capacity) and the ‘CE’ mark appear on the hoist. SUPPLIER / MANUFACTURER Red Rooster Lifting Ltd Red Rooster Lifting Ltd ADDRESS Nauta House, The Meadows Unit 26 Kelvin Way Trading Estate...

  • Page 6: Operation

    GETTING STARTED - OPERATION OPERATION Red Rooster pneumatic hoists are designed for the lifting and lowering of loads within the capacity of the selected hoist model. Our ranges of hoists are all ‘CE’ marked and conform with the Machinery Directive 2006/42/EC and the powered hoist standard BS EN 14492-2 Our range of hoists are available as hook suspension units, trolley mounted, built into low headroom units and cranes. Nearly all hoist models are also available as ATEX ZONE 1 or 2 hoists for use in hazardous areas, with corrosion protection, and can work in temperatures of -20°C to +60°C. When used outdoor or offshore hoists should be protected against the weather and examination and maintenance interval should...

  • Page 7: Checks Before Use & Hose Support Bracket

    Thoroughly examine the equipment prior to installation to ensure that no damage has occurred during transit. Hoists and trolleys should not be altered in any way without contacting Red Rooster for clearance, as this may affect the certification of the unit.

  • Page 8: Technical Characteristics

    When the emergency stop button is pushed or if the air supply to the hoist is cut off then the valve will close stopping the hoist. ▪ Red Rooster hoists have a 5:1 factor of safety. M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...

  • Page 9: Hoist Checks

    ▪ The load chain is not twisted through (two fall or more models) and that the load chain passed through the limit lever (All models). ▪ The load chain anchor is sound (both live and slack end). ▪ Check for damage to the hoist, pendant and control lines. ▪ Do not operate below -20°C or above 60°C without contacting Red Rooster. HOIST CHECKS (AIR SUPPLY ON) ▪ The pendant buttons, levers or cords should be smooth to operate and return to neutral when released (hoist stops and does not run on). ▪ The hoist is run up and down on a regular basis. Where hoists are hanging in a dry and protected area they should be run weekly, where the hoist is outside and not protected it should be checked and run daily.

  • Page 10: Hoist Controls

    ALMOST in the vertical position. When the load is applied, the tension in the sling will be slack. THE SLING IS NOT CAPABLE OF HOLDING THE LOADS CARRIED BY THE HOIST M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪...

  • Page 11: Lubrication

    Note 1 DANGER All Red Rooster hoist chain must be lubricated to prevent wear. Keeping load chain clean and lubricated will greatly increase the lifetime of the chain and prevent costly replacement. Very little lubricant is needed and can be easily applied to the chain by cloth, brush or spray.

  • Page 12: Safe Operation

    ▪ Only use the hoist to make a lift safe when a warning alarm has been activated in the area and then isolate the hoist. AT ALL TIMES THINK BEFORE YOU ACT - PLAN EVERY LIFT M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 13 Fig. A Fig. B Fig. C Fig. D Fig. E Fig. F Fig. G Fig. H M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...

  • Page 14: Safety Equipment - Ppe

    If another hoist cannot be used to lower the load it is possible to release the brake by slackening the brake cover screws but this should only be done by a RRIUK engineer or after discussions with Red Rooster as it is not always possible or safe to do so.

  • Page 15: Maintenance

    It is recommended that the load chain and linkages are lubricated as part of this inspection routine. When repairing Red Rooster air hoists only original Red Rooster products should be used. Only minor repairs such as silencers, safety catches, pendant repairs, replacing shorter lengths of load chain and inspections should be done in location after this the hoist should be lowered to ground level and taken to a workshop.

  • Page 16: Silencing

    Before carrying out any work on the hoist the main air supply should be turned off and the residual air vented or the hoist run to dissipate the air pressure. Red Rooster hoists normally do not require any adjustment as the brake springs take up any wear and the load limiter and limits should not need adjustment once set. The load chain should be checked monthly for lubrication and oiled if necessary. Where the load chain is not lubricated for operational reasons the chain should be inspected weekly as a dry chain can wear rapidly.

  • Page 17: Fitting Or Replacing Load Chain

    Otherwise the chain will become trapped DANGER and damaged. Only use quality load chain approved by Red Rooster for use on our hoists. DANGER ITEM...

  • Page 18: Types Of Chain

    EN818-7 ISO 3077 DIN5684 - 8 + EN818/7 ISO 3077 NOTE: Spark resistant hoists are fitted with KITO nickel plated heavy duty chain or 60 stainless steel chain. Please refer to supplier. When supplied new, only quality chain from a reputable supplier has been fitted to the hoist. Your supplier will be able to offer replacement chain of like quality. M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 19 End Stopper Gear Box Chain Lever Hook Safety Latch Lower Hook Cord Lever Cord Control Pendant Control M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...

  • Page 20: Service Data

    If the pin is replaced, replace the needle bearing and star gear at the same time. Wheel Replace if loadsheave part is badly damaged or worn. M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 21 Also replace if the link chain is severely damaged. Load Chain 5 links L Measure the chain diameter (d) with point caliper. M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...

  • Page 22: Laying Up The Hoist

    Store in a dry ventilated area. ▪ Secure hoist in a crate or suitable pallet. Transportation - Moving your Red Rooster hoist between locations. Carefully disconnect from suspension point and lower under control to ground level. Be sure that chain collector, valves and trolley drives are not damaged. Carefully lay the pendant on top of the hoist making sure tubes or hoses are not damaged.

  • Page 23: Chain Collectors

    ▪ When the load chain is dry it may not run freely into the chain collector and over fill the collector, so the chain must be kept lubricated to prevent it running out of the collector. ▪ Make sure the chain collector brackets have not been damaged during installation. ▪ Make sure the chain collector is free to move when the hoist is loaded and un-loaded. ▪ Make sure the bottom hook does not connect with the chain collector. Limit the lifting height of the bottom hook if necessary. ▪ For any assistance required on chain collectors please contact Red Rooster Lifting Ltd. M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 24 USER MANUAL CHAIN COLLECTORS TCS-500 TCS-500 M8 x 65 M6 x 25 Chain Bag M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...

  • Page 25: Speed Adjustment

    NOTE: The speed adjustment mechanism is set at the highest speed when shipped from the factory. Adjust screw lowering speed Adjust screw lifting speed Highest speed setting Lowest speed setting M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...

  • Page 26: Operational Breakdown / Troubleshooting The Tcr & Tcs Hoist

    Find cause of vibration. Hoist constantly operating at close headroom Fit a ball bearing swivel below the hook. M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101...

  • Page 27: Periodic Examination & Testing

    SIX MONTHLY OFFSHORE INSPECTION Arrange to have the hoist examined by a person specifically trained and experienced in the examination of lifting machines. This can be done by a Red Rooster engineer or an independent competent person. Ensure that the party is operating to a detailed inspection procedure or code of practice. SERVICE We would recommend the hoist is returned every 5 years for a full inspection and service.

  • Page 28: Duty Ratings

    Load chain must be to manufacturer’s specification. Special chains are excluded (consult your supplier). Mode of use must be in accordance with manufacturer’s recommendation. M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101...

  • Page 29: Explosion Protection

    TROLLEYS AND OVERHEAD CRANES Red Rooster trolleys and overhead cranes use standard steel wheels for use in a Zone 2 + 22 area and normally with Bronze wheels in a Zone 1 + 21 area with a Gas group of IIB or IIC and Dust group IIIB or IIIC. The normal running speeds of our trolleys and overhead cranes are less than the 1 m/s that the standard allows.
  • Page 30 The Hose should always have a higher Safe Working Pressure that the hoist and above that of the air supply from the compressor. Air supply hoses need to be certified with a current report on the condition of the hose and checked before fitting to the hoist. The burst of a hose or connection failure can create a dust cloud and also create a static charge. Hose safety whip cables should be used to prevent hoses flying if a connection fails to limit the dust cloud and the flying hose. *Red Rooster hoists should only be operated with compressed air. DANGER ▪ During use the operator must avoid loads or the bottom hook impacting with surrounding steel equipment and structural steel which may result in sparking or frictional sparks caused by dragging loads past fixed structures.
  • Page 31 RA I SIN G EX P EC TATI ONS TCS-500-LF is a 500 kg lubrication free high speed chain hoist from Red Rooster Lifting. This is part of our air hoist hook suspension range for lifting equipment applications in industry.
  • Page 32 19.0 kg ADDITIONAL METRE HOL 0.8 kg C = CORD CONTROL PE = PENDANT CONTROL RED ROOSTER LIFTING LIMITED T: +44 (0) 1651 872101 sales@redroosterlifting.com REDROOSTERLIFTING.COM Nauta House, The Meadows, Oldmeldrum, Inverurie, Aberdeenshire, UK, AB51 0EZ M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪...
  • Page 33 USER MANUAL DRAWINGS & PARTS LISTS M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 34 D01-AH12-LF REV0 17.09.15...
  • Page 35 Brake Gears Suspension Body - TCS-500-LF D01-AH12-LF REV0 17.09.15...
  • Page 36 Brake Gears Suspension Body - TCS-500-LF D01-AH12-LF REV0 17.09.15 Fig. Part Number Part Name Parts Fig. Part Number Part Name Parts Hoist Hoist 426230A00 CENTRE HOUSING 420620P11 HOOK SAFETY CLAW 426230A50 LOAD SHEAVE 131704028 HEX SOCKET HEAD CAP SCREW M4X28...
  • Page 37 Motor Valve Body - TCS-500-LF (Pendant) D01-AH12-LF REV0 17.09.15...
  • Page 38 Motor Valve Body - TCS-500-LF (Pendant) D01-AH12-LF REV0 17.09.15 Fig. Part Number Part Name Parts Fig. Part Number Part Name Parts Hoist Hoist 420215VB0 THROTTLE VALVE 131706014 HEX SOCKET HEAD CAP SCREW M6X14 426230E90 VALVE BUSHING (U) 131103012 O-RING S-14...
  • Page 39 Motor Valve Body - TCS-500-LF (Cord) D01-AH12-LF REV0 17.09.15...
  • Page 40 Motor Valve Body - TCS-500-LF (Cord) D01-AH12-LF REV0 17.09.15 Fig. Part Number Part Name Parts Fig. Part Number Part Name Parts Hoist Hoist 420215VB0 THROTTLE VALVE 131706014 HEX SOCKET HEAD CAP SCREW M6X14 426230E90 VALVE BUSHING (U) 131103012 O-RING S-14...
  • Page 41 Pendant - VRD-2R D01-AH12-LF REV0 17.09.15 D01-P7 REV1...
  • Page 42 Pendant - VRD-2R D01-AH12-LF REV0 17.09.15 D01-P7 REV1 Fig. No. Part Number Part Name Parts Hoist 131705008 HEX. SOCKET HEAD CAP SCREW M5X8 420228VRD PENDANT VALVE ASSEMBLY 420218VB0 THROTTLE VALVE 420228VR0 VALVE BODY 420218VF0 BUSHING 420223W40 LEVER D 420223W30 LEVER U 130402053 LEVER PIN 130802220...
  • Page 43 Pendant - VTP2M D01-AH12-LF REV0 17.09.15 D01-P2 REV1                            ...
  • Page 44 Pendant - VTP2M D01-AH12-LF REV0 17.09.15 D01-P2 REV1 Fig. No. Part Number Part Name Parts Hoist 105P M4 X 20 CHEESE HEAD SCREW E/STOP/GUARD01 YELLOW E-STOP GUARD 113/1P M4 NYLOCK NUT BIK3206P-BS54 EMERGENCY STOP BUTTON 304P 8mm TO 6mm BANJO P118 90º...
  • Page 45 USER MANUAL ACCESSORIES M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 46 Valve model: DV/0.25 AIR SERVICE EQUIPMENT An air set should be used with all Red Rooster hoists and trolleys. AIR SERVICE UNITS: The correct size of air service unit for each hoist type is stated in the table on page 4.
  • Page 47 When the bowl is installed, install them so that the lock button lines up to the groove of the front (or the back) of the body to avoid dropping or damage of the bowl. Orange mark Lock button Image for illustration purposes only M01-AH12-LF REV0 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 49 LOG BOOK LOG BOOK M01-AH12 REV3 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 50 Check the condition and setting of the anti-tip rollers. Check air supply lines and control lines for fitting, wear or damage. Check load chain for excessive corrosion. Check hoist body for excessive corrosion. M01-AH12 REV3 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 51 TROLLEY CHAIN: Check geared trolley hand chain and drive. When detecting any abnormality during inspection due to erroneous use, instruct the operator and user for correct use of the chain hoist. M01-AH12 REV3 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪...
  • Page 52 LOG BOOK M01-AH12 REV3 ▪ Red Rooster Lifting Limited ▪ Nauta House, The Meadows, Oldmeldrum, Aberdeenshire, AB51 0EZ ▪ Tel: +44 (0) 1651 872101 ▪...
  • Page 53 TO BE CARRIED OUT MONTHLY IN PRODUCTION OPERATIONS WHERE HEAVILY USED OR IN HARSH WORKING CONDITIONS. TO BE CARRIED OUT THREE MONTHLY WHEN THE HOIST IS ONLY USED OCCASIONALLY. PLEASE CONTACT RED ROOSTER TO CONFIRM IF MONTHLY OR THREE MONTHLY MAINTENANCE CHECKS ARE REQUIRED IF YOU ARE NOT SURE.
  • Page 54 Head Office: +44 (0) 1651 872101 Nauta House Oldmeldrum E: sales@redroosterlifting.com The Meadows Aberdeenshire, AB51 0EZ W: www.redroosterlifting.com Depot: Unit 26 Kelvin Way +44 (0) 121 525 4162 Kelvin Way Trading Estate West Bromwich, B70 7TW...
