Lippert Components OneControl HVAC CONTROL 2.0 Owner's Manual page 8

Breaker Box
AC Hot
AC Neut
Gnd
Rev: 02.05.21

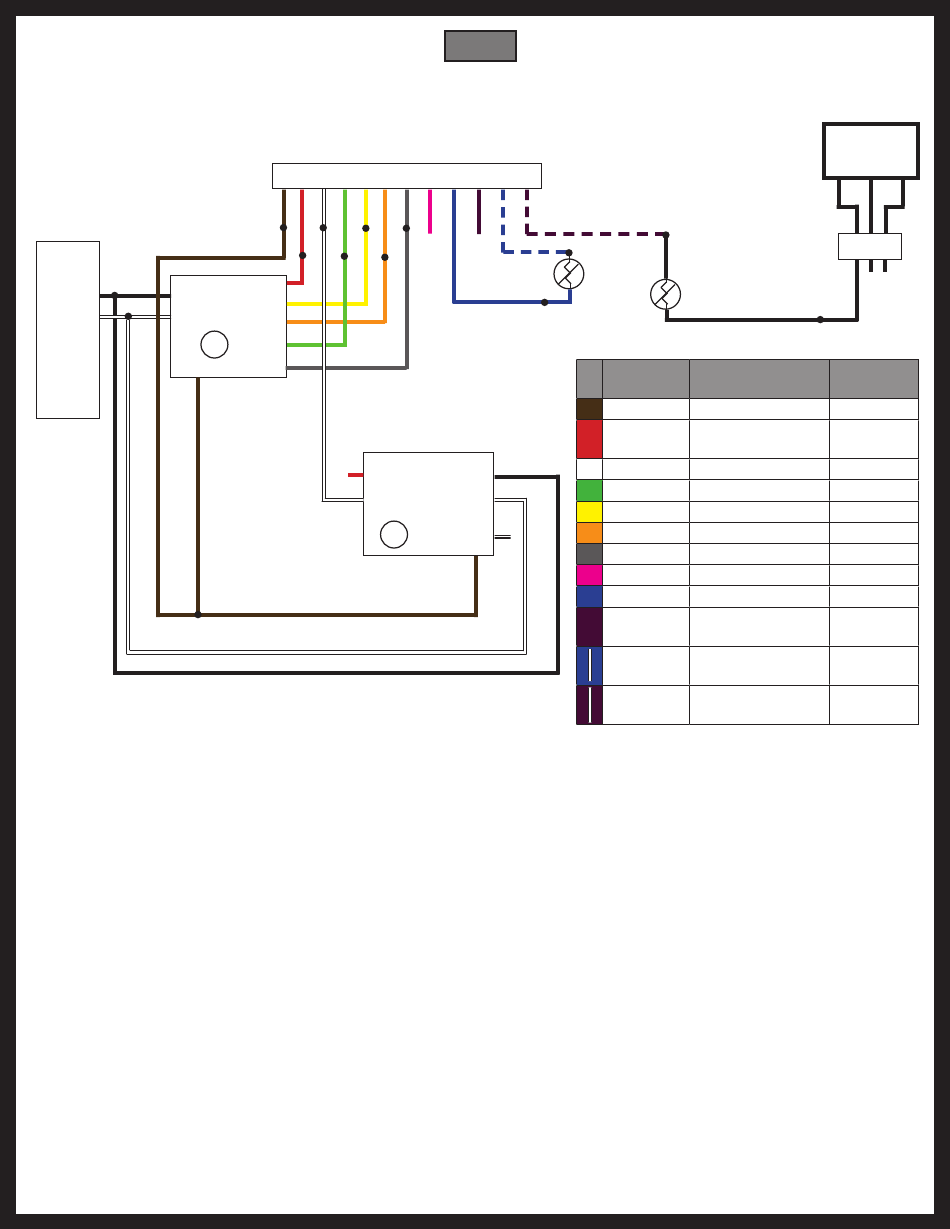

OneControl® HVAC Zone Wiring Diagram
Furnace, AC, Heatpump, Dual-speed Fan
Zone Connector (406350 Controller)
1 7 2 8 3 9 4 10 5 11 6 12
12V to Zone
Compressor
Rev. Valve
High Fan
Low Fan
12V to Zone
Heat Demand
Fig. 10
THERM
T
T
Zone T Sense
AC Hot
AC Neut
LP Gas Supply
Gnd
Page 8
T THERM
T
Outdoor T Sense (optional)
Color Signal
Brown Gnd
Zone Power
Red
(+12V DC)
White Gas Heat
Green High Fan
Yellow Compressor
Orange Rev. Valve
Gray Low Fan
Pink Reserved
Blue Zone Temp Input
Freeze Detect
Purple
Input
Blue w/
Sensor Power
stripe
Purple
Sensor Power
w/stripe
Generator
(optional)
1 2 3
4 5 6
Zone
Connect
1
7
2
8
3
9
4
10
5
11
6
12
CCD-0001448
