GIT G-scan3 Parts Replacement Manual page 22

GIT-EZDS Aftermarket Distributorship Manual
Repair Procedure

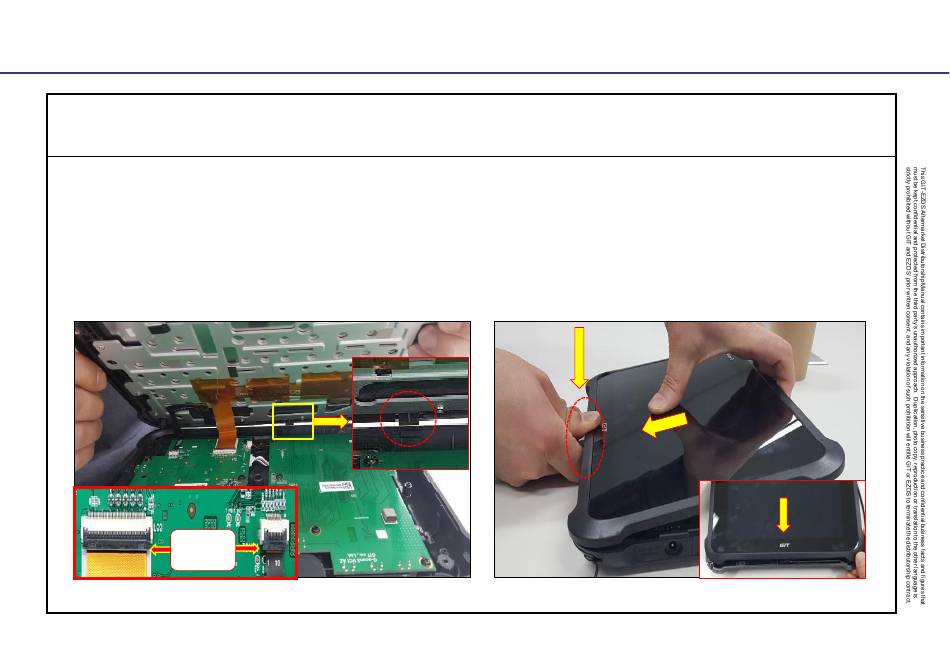

6. Assembling Front Case
6.1. Parallel up the touch pad and LCD F-PCB board to assemble in correct line.
6.2. Bottom of the front case should be slide in first and then clip the top part of case
* Make sure the F-PCB board to be cleaned and do not put too much pressure on the parts to be over torqued.
F-PCB
wires must
be aligned
on the line
th
Feb 20 , 2019 FIRST EDITION
GIT-EZDS Aftermarket Distributorship Manual
PR6-3
ADM-SVC:2.01
Slide in
GIT-EZDS
