GIT-EZDS Aftermarket Distributorship Manual
Repair Procedure
2. Case Opening

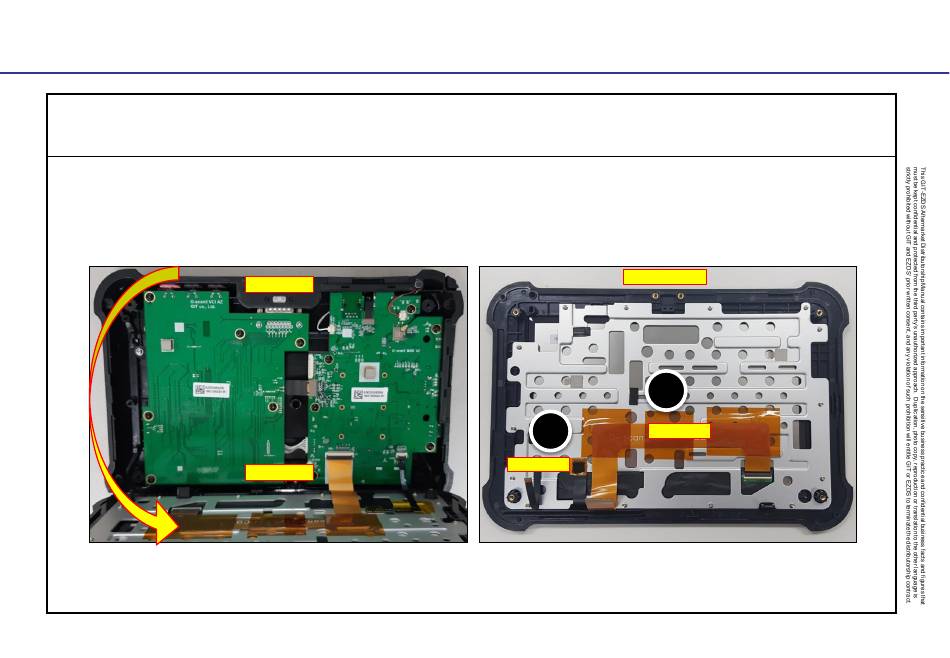

2.7. Widen up the top and bottom, and remove all the FPCB cables from LCD and Touch Panel.
th
Feb 20
, 2019 FIRST EDITION
TOP
BOTTOM
** An individual LCD module itself cannot be replaced. Only the front case assembled with LCD shall be replaced at one go.
GIT-EZDS Aftermarket Distributorship Manual
ADM-SVC:2.01
1
FPCB Cables
2
1
LCD F-PCB
Touch F-PCB
PR2-9
Disassemble
GIT-EZDS
