GIT G-scan3 Parts Replacement Manual page 13

GIT-EZDS Aftermarket Distributorship Manual
Repair Procedure
3. LCD Replacement
3-1. Put the new LCD in place following the reversed procedure.

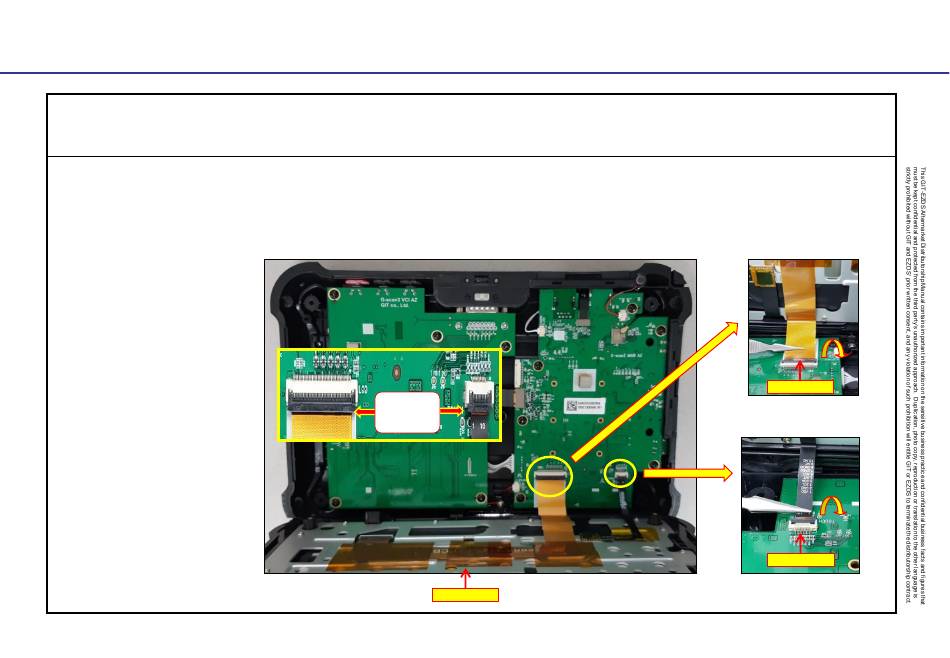

3-2. When connecting the F-PCB cables, make sure the wires must be aligned on the line
* Kapton tape should be re-
attached after replacing the
LCD
* Make sure not to bend the
LCD F-PCB cable
* Power on and see if the
LCD is working correctly.
th
Feb 20 , 2019 FIRST EDITION
F-PCB
wires must
be aligned
on the line
Kapton Tape
GIT-EZDS Aftermarket Distributorship Manual
PR3-2
ADM-SVC:2.01
Disassemble
Locking Bar
Locking Bar
