Circuit Diagram

Trouble Shooting
Problem
Grill plates do not heat even though
power indicators are lit.
Temperature can not be controlled.
Heating appears normal but power
indicators are not lit.
Do not use the machine if any of the above occur.
Any troubleshooting corrections should be performed by a qualified technician

Daily Check

Before using the machine, visually inspect for any signs of damage or frayed power cord. Be
certain machine is on a level countertop.
After turning it on, check for anything unusual before you use it.
Inspect the machine every day before using. If there is any question about operation, do not
use.
MODEL:PG811 with On &Off Power Switch
Possible Cause
Defective controller
Defective heater(s)
Defective controller
Defective indicator(s)

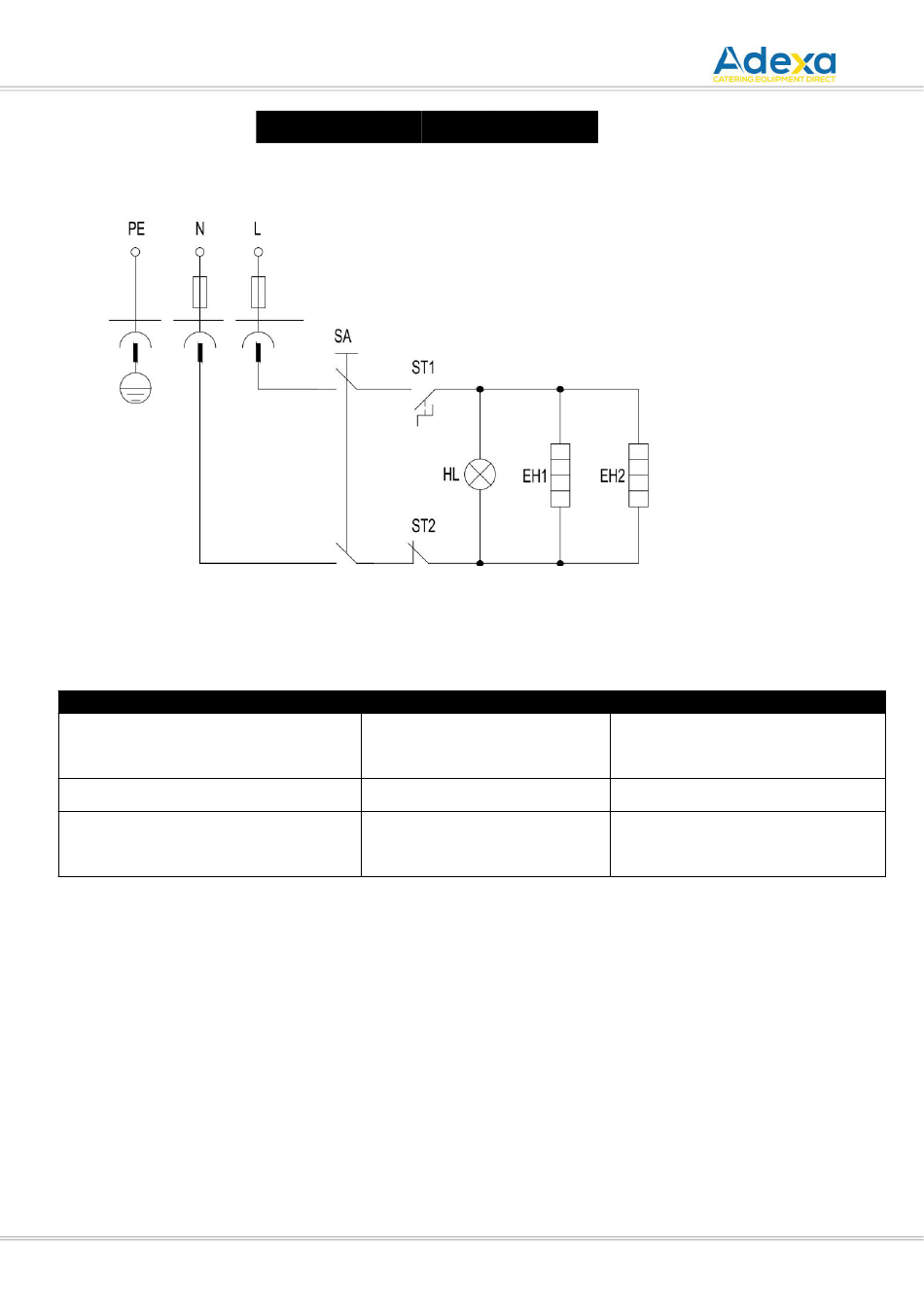

ST1:Thermostat
SA:Power Switch
HL:Heater Indicator
EH1:Heater
EH2:Heater
ST2:Temperature Limiter
Action
Replace controller
Replace heater(s)
Replace controller
Replace
