Summary of Contents for Adexa EG604

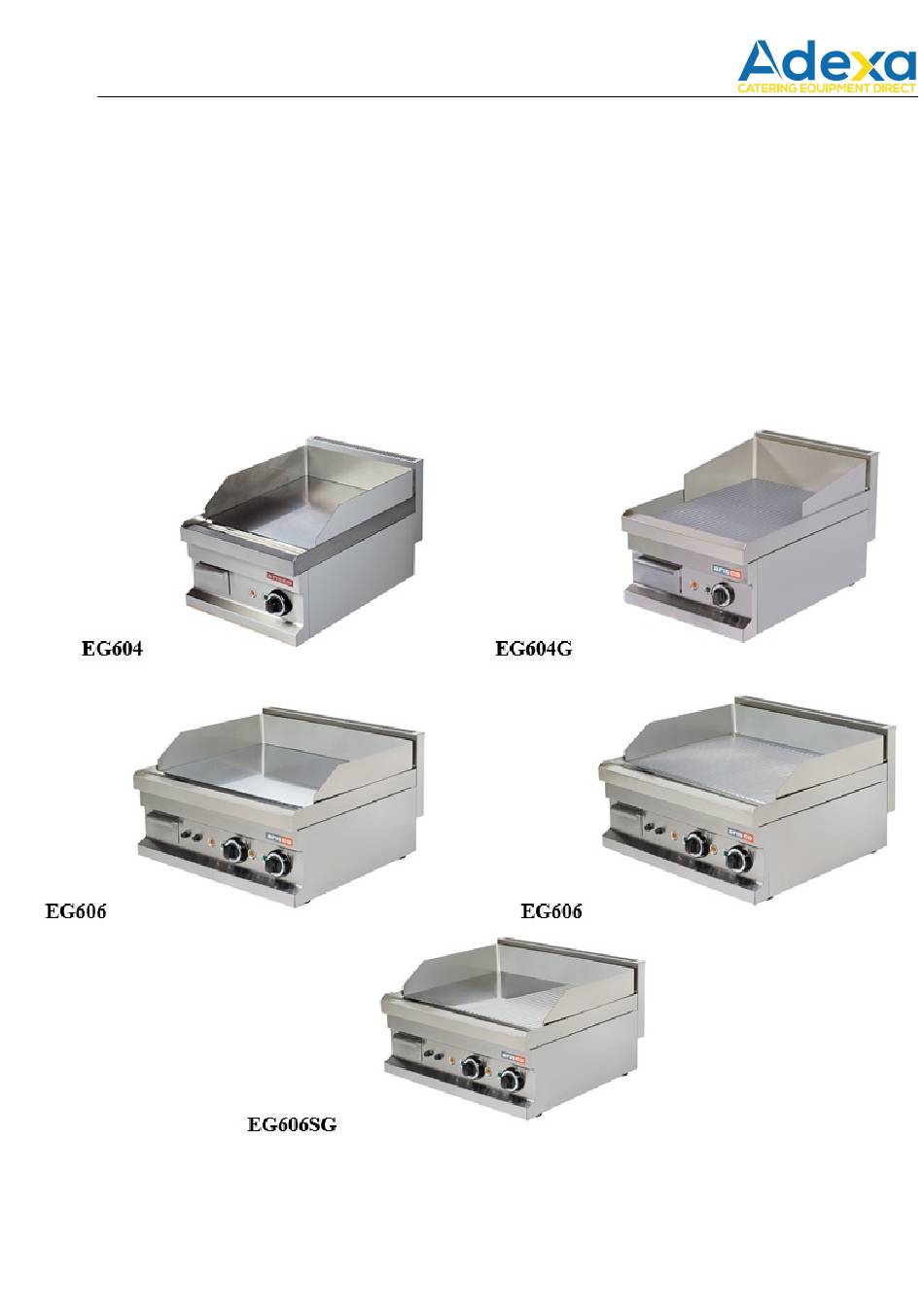

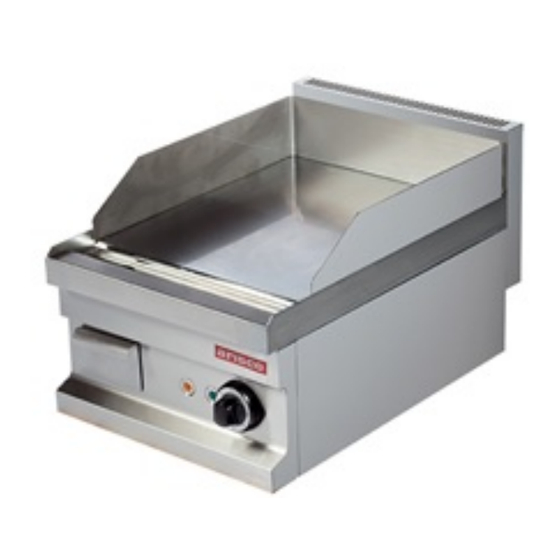

- Page 1 ELECTRIC GRILL INSTRUCTION MANUAL...
-
Page 3: Table Of Contents
CONTENTS AIMS AND SCOPE RESPONSIBILITIES SIGNS TECHNICAL DATA (BASIC FEATURES) TRANSPORTATION AND INSTALLATION GENERAL PRINCIPLES INFORMATIONS AND EQUIPMENTS RELATED TO PRODUCT DESCRIPTION OF DEVICE WITH EXPLANATIONS REPLACING THE DEVICE AND PREPARING FOR START UP INSTALLATION BEFORE ASSEMBLING PREPARATION FOR START UP FINAL CHECK BEFORE START UP START UP ELECTRICAL DIAGRAM... -
Page 4: Aims And Scope
AIMS AND SCOPE Descriptions for safe use and maintenance of the product RESPONSIBILITIES Responsibilities of Product’s Owner: The product’s owner is responsible for applying of safety rules stated in this Instruction Manual or getting them applied by delegating his authorities and risks, which may arise due to not applying. The product’s owner is also responsible for the periodical maintenance of the machine. -
Page 5: Technical Data (Basic Features)
TECHNICAL DATA EG604, EG604G EG606, EG606SG, EG606G MODEL Ölçü:ExBxY VOLTAJ GÜÇ BESLEME KABLOSU -Table 1 - EG606/G/SG 600X600X265 380-400 V ~ 5,4 kW 5X2,5 mm² EG604/G 400X600X265 380-400 V ~ 4,05 kW 5X2,5 mm² 5 / 14... -
Page 6: Transportation And Installation
MODEL Kaçak Akım Rölesi EG606/G/SG 3x16 A – 30 mA EG604/G 3x10 A – 30 mA - Table2 - The cover of any machine should not be opened during the period of working. Be careful not to squeeze your hands while closing the covers. -
Page 7: Informations And Equipments Related To Product
The manufacturer reserves the right to make any modification or amendments partially or entirely on any part of machine, if it considers necessary or beneficial or to be in favor of user or product without any previous notification. Besides, the producer guarantees that the fundamental functionality and security specifications of the machines should also be kept as required In the event of any fault, switch off all electric/Water connections then apply to the authorized service staff. -
Page 8: Preparation For Start Up
PREPARATION FOR START UP Assuming that electrical installation connections have already made by competent technicians, the user must implement the following simple inspections Be sure that in electrical operated devices, the electricity current has been supplied in adequate features as stated in TECHNICAL DATA catalogue and grounding connection has been complemented. - Page 9 CONTROL PANEL EG604/EG604G A- 50-320 ° C thermostat B- Energy signal lamp C- Heater on signal lamp EG606/EG606G/EG606SG A-Right side 50-320 ° C thermostat B- Right side Energy signal lamp C-Right side Heater on signal lamp D-Left side 50-320 ° C thermostat B- Left side Energy signal lamp C-Left side Heater on signal lamp...
-
Page 10: Electrical Diagram
11. ELECTRIC DIAGRAM EG604/EG604G 10 / 14... - Page 11 EG606/EG606G/EG606SG 11 / 14...
-
Page 12: Maintenance And Cleaning
12. MAINTANCE AND CLEANING Implement the following periodical maintenance so that the product should work in safe and long life DAILY MAINTANCE AND CLEANING Device must be cleaned every day after use, after being sure that it is completely cooled down. Cleaning must be made by a clean wet cloth by wiping the device. -
Page 13: Spare Parts List
15-SPARE PARTS LIST EG604, EG604G DESCRIPTION Foot Splash guard Grease Tray Oil Drain Heating Element Breaker Thermostat Limiter Signal Lamp Signal Lamp Cable Fitting Connector Knob EG606, EG606SG, EG606G DESCRIPTION Foot Splash guard Grease Tray Oil Drain Heating Element Breaker...
