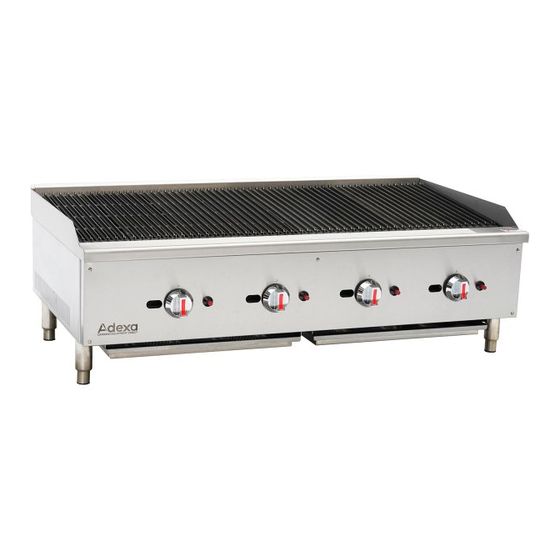

The Gas Charbroiler
Installation and Operation Instructions
Model:
ECB-48S, ECB-36S, ECB-24S, ECB-16S
Gas catering equipment (Type A) EN 203-1:2014 / BSEN 203-2-10:2007
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the
equipment. For Warranty Service and/or parts, this information is required.
These instructions are only valid if the country code appears on the appliance. If
the code does not appear on the appliance, refer to the technical instructions for
adapting the appliance to the conditions for use in that country".
WARNING: For your safety, do not store or use gasoline or other
flammable vapors or liquids in the vicinity of this or any other
appliances. Keep the area free and clear of
combustible.
WARNING ： Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury, or death. Read
the installation operating and maintenance instructions thoroughly
before installing, or servicing this equipment.
WARNING ： Instructions must be posted in a prominent location.
All safety precautions must be taken in the event the user smells
gas. Safety information can be obtained from your local gas supplier.
V0.Rev0.00-17
Advertisement
Table of Contents
Related Manuals for Adexa ECB-48S
Summary of Contents for Adexa ECB-48S
- Page 1 The Gas Charbroiler Installation and Operation Instructions Model: ECB-48S, ECB-36S, ECB-24S, ECB-16S Gas catering equipment (Type A) EN 203-1:2014 / BSEN 203-2-10:2007 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or parts, this information is required.
-
Page 3: Table Of Contents
Contents Introduction ....................1 Safety Notices and Precautions ............... 2 Specifications ................... 4 General Pack Contents Product specification list Pressure point Gas connection Feet adjusting height Gas categories and pressure values Dimensions ....................6 Installation ....................7 Installation Requirements Unpacking Location Clearances Assembly... -
Page 4: Introduction
Introduction Dear customers and users： We are confident that you will be delighted with your Gas LAVA ROCK GRILL, and it will become a most valued appliance for you. To ensure you receive the utmost benefit from your new Gas LAVA ROCK GRILL, there are two important things you can do. -
Page 5: Safety Notices And Precautions
Safety Notices and Precautions When using this equipment, safety precautions should always be followed, including the following: Please make sure that the operator is an authorized and licensed technician before you allow him/her to install and operate the products. Be sure to strictly follow this instruction guide during installation and using. - Page 6 Safety Notices and Precautions Always keep hands, hair and clothing away from heating source. Wait the unit cools down before cleaning. Because the unit is too hot to handle after using. The parts protected by the manufacturer or his agent shall not be adjusted by the installer. ...
-
Page 7: Specifications
The Gas LAVA ROCK GRILL • Four Feet • Instruction Manual • The gas lava rock • Product specification list: Total power orifice dia. Gas pres. ECB-48S ECB-36S ECB-24S ECB-16S 1.3mm 29mbar 6kWx4 6kW x3 6kW x2 1.2mm 37mbar 6kW x4... -
Page 8: Dimensions
Dimensions... -
Page 9: Installation
Installation Installation Requirements NOTE: • It is most important that this appliance is installed correctly and that operation is correct before use. Installation shall comply with local gas, health and safety requirements. • This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable concentrations of substances harmful to health. -
Page 10: Clearances
Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right Hand Side Not applicable 150mm Min. Rear Not applicable 150mm Min. Bottom Not applicable 150mm Min. Assembly NOTE: ... - Page 11 Installation LP Gas hose connection Nature gas connection NOTE: Manual Isolation Valve , Gas hose adaptor, seal gasket, gas pipe, LP or nature regulator and flexible hose were not included with current product. Purchase them in your local site. The gas type and gas pressure shall be matched with gas rating label in product body.
- Page 12 Installation Turn over gas LAVA ROCK GRILL , and needle type pressure joint screw arbor (Fig.1), then slip rubber tube of pressure gauge over needle type pressure joint; Start the equipment in accordance with the instructions, measuring gas supply pressure (dynamic pressure) in the work state;...
-
Page 13: Commissioning
Installation Commissioning Before leaving the new installation; a. Check the following functions in accordance with the operating instructions specified in the ‘Operation’ section of this manual. Turning 'Off' the Main Burner. Electrical battery installation Light the Main Burner. ... -
Page 14: Operation
Operation Operation Guide CAUTION: • This appliance is for professional use and is only to be used by qualified persons. • Only authorized service persons are to carry out installation, servicing or gas conversion operation operations. • Components having adjustments protected by the manufacturer should not be adjusted by the user/operator. -
Page 15: Lighting Main Burners
Operation Lighting Main Burners The LAVA ROCK GRILL are fitted with Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off the gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled. Before using electronic pulse ignition, open the bottom and put a No.7 battery in it Turn the knob to align”... - Page 16 conditions. All valves must be checked and lubricated periodically. This must be done by an authorized service representative in your area. Operation Note: Please wait at least 15 seconds to restart the main burners to maintain the best function of the thermostat valve after turning off the main burners.
-
Page 17: Cleaning And Maintenance
Cleaning and Maintenance CAUTION: Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean this appliance. GENERAL Clean the Gas LAVA ROCK GRILL regularly. A clean Gas LAVA ROCK GRILL looks better, will last longer and will perform better. - Page 18 Maintenance The following maintenance operations should be performed at least once a Half year: Checking for proper operation of all control and safety devices; Checking burner combustion, i.e.: 1. ignition; 2. combustion safety; 3. checking for proper operation throughout the entire HIGH-to-LOW control range. We recommend signing a service agreement providing for at least one check-up a Half year.
-
Page 19: Trouble Shooting
Trouble Shooting This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. - Page 20 Replacement Parts list IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch. When ordering replacement parts, please quote the part number and the description listing below.
-
Page 21: Explosion Drawing
Explosion Drawing ECB-48S - 18 -... - Page 22 Part Name top charcoal grill top housing assy body shell crumb tray front panel ignitor knob & insert pin valve angle connector sabaf gas valve CE11 pressure test plug inlet gas pipe Adjustable steel foot thermocouple fixation plate thermocouple ignitor pin with wire U shape burner Radiant plate Radiant plate small...
- Page 23 ADEXA DIRECT LIMITED GROUND FLOOR UNIT 1 214 PURLEY WAY CROYDON CR0 4XG LONDON UNITED KINGDOM service@adexa.co.uk www.adexa.co.uk +44 1483 931040 EC Declaration of Conformity Adexa Direct Limited declares that: Equipment Type: Gas grill Model: ECB‐16S, ECB‐24S, ECB‐36S, ECB‐48S Imported By: ADEXA DIRECT LIMITED GROUND FLOOR UNIT 1 214 PURLEY WAY CROYDON CR0 4XG LONDON, UNITED KINGDOM Serial Number: Year of Manufacture: Brand: ADEXA ...
