Summary of Contents for Adexa KLG 230-HG
- Page 1 KLG 231 HG Picture Electrical Doner Kebab Grill – Top Motor Series Moving Body & Thermal Glass KLG 230-HG, KLG 231-HG, KLG 232-HG To avoid the risk of accidents or damage to the appliance it is essential to read this operation manual...
-
Page 2: Table Of Contents
KLG 230-HG, 231-HG, 232-HG ........ -
Page 3: Presentation Of Appliance

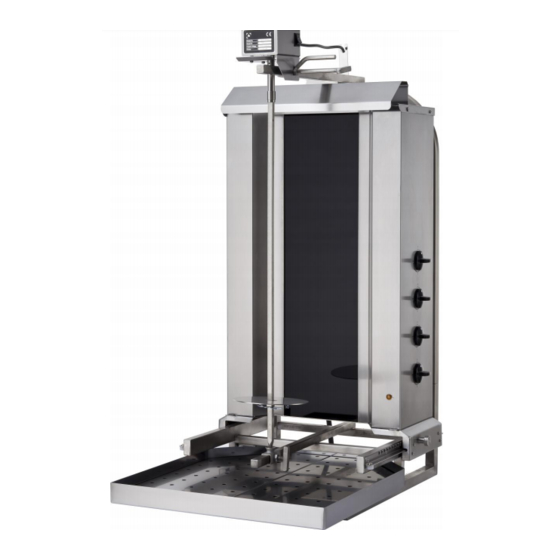

Presentation of Appliance Electrical Doner Kebab Grill – Top Motor & Moving Body KLG 230-HG, KLG 231-HG, KLG 232-HG KLG 231-HG Picture Fixed Frame Heater Mechanism (RADIANT) and Thermal Glass Heater Mechanism, On / Off Key Motor Body Motor Control Key... -
Page 4: Definition Of The Appliance, Working Principle Of The Appliance
Appliance Name Electrical Doner Kebab Grill (Top Motor) Model No KLG 230-HG, KLG 231-HG, KLG 232-HG Definition of the appliance: Electrical Doner Grill used for grilling foods such as meat wrapped around spits for Doner Kebab, etc. The appliance features; Robax Color S thermal glass, top motor and stainless steel body frame. -
Page 5: Safety Recommendations And Advices
➢ If the main cord is damaged, it must be replaced by ; a service center ADEXA authorised by ADEXA or similarly qualified persons in order to avoid a hazard. ➢ Defective parts may only be replaced by original spare parts. We as... -
Page 6: Protecting Equipment Against Damage
Authorized Service Centers may cause personal injury and appliance damage. Repairs should be performed by ADEXA Authorized Service Center during warranty period. Otherwise, repair of troubles that may subsequently occur shall not be covered by the warranty. -
Page 7: Things To Be Done Before First Operation
Things to be done Before First Operation Preliminary Information ➢ Keep Operation Manual and give it to the next owner of the equipment after you. ➢ Control the equipment before installation for any visible damages. Do not install or use any damaged equipment. Packaging ➢... -
Page 8: Switching On/Off
Operation Switching On/Off ➢ The Heaters work independently. ➢ The heaters (Radian) are turn on by On/Off Keys (3.) on the fixed frame. ➢ To turn the key on, turn and bring it to 1 , 2 , 3 or max position. -
Page 9: Cleaning And Maintenance
Operation ➢ When Doner grilling is completed, turn and bring On/Off Key (3.) of Heater Mechanism to “0” position. ➢ When Doner grilling is completed; to stop the skewer (or Doner kebab meat) bring the Motor (5.) to “0” Control Key position. -
Page 10: Technical Information
Troubleshooting Problem Possible Cause Solution * Appliance does not * The main fuse blown. * Check the main fuse. heat or burners do not operate * The On/Off Key is off. * Turn the On/Off Key on. * Heating element is out of order. * Switch off the fuse. -
Page 11: Electric Cable Connection
Technical Features T e chn ic al Sp ecif ica tion KLG 170 KLG 171 KLG 172 ( 3 Burners ) ( 4 Burners ) ( 5 Burners ) Height 900 mm 1065 mm 1230 mm Width 550 mm 550 mm 550 mm Depth 715 mm... -
Page 12: Electrical Circuit Diagram
Technical Features Electric circuit diagram... -
Page 13: Warning Signs
Customer Services ➢ Service operation is performed at the plant facility. Service Center Address: ADEXA DIRECT LIMITED GROUND FLOOR, UNIT 1 JAYCEE HOUSE 214 PURLEY WAY. CROYDON, CR0 4XG.UK. M.+44 74 1107 0110 www.adexa.co.uk Firm Address: ADEXA DIRECT LIMITED GROUND FLOOR, UNIT 1 JAYCEE HOUSE 214 PURLEY WAY. - Page 14 ADEXA. 6. The warranty does not cover normal wear of the Product or parts and the parts that could be used as spare parts.
