IRUS Attachment module 180 VIII Assembly Instructions

IRUS Attachment module 180 VIII Assembly Instructions

Information panels

Advertisement

Quick Links

assembly instructions for the
Information panels

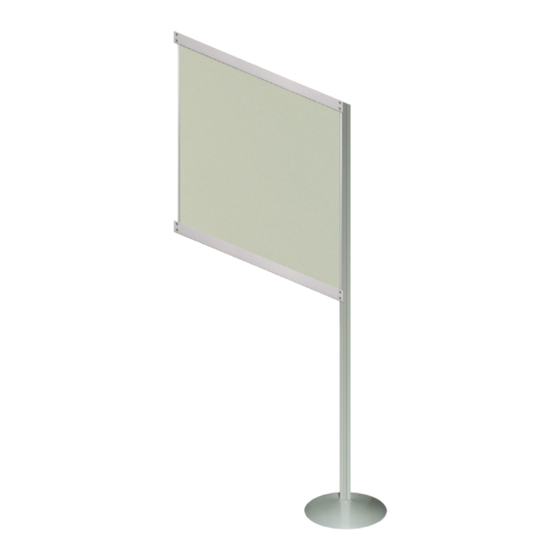

„Attachment module 180° VIII " 61.439
constisting of:
- 1x Round Base à 0,95 kg incl. Flat mushroom
- 2x Aluminium profile „Flexi-Long" à 1000mm
- 2x Cross profile „Flexi-Quick" with pointed screws for lower and upper mounting
- 1x PVC foam board à 955x979 mm
- 1x Extension bolts
- 2x Aluminium H-Profile à 967 mm to stabilize the plates
