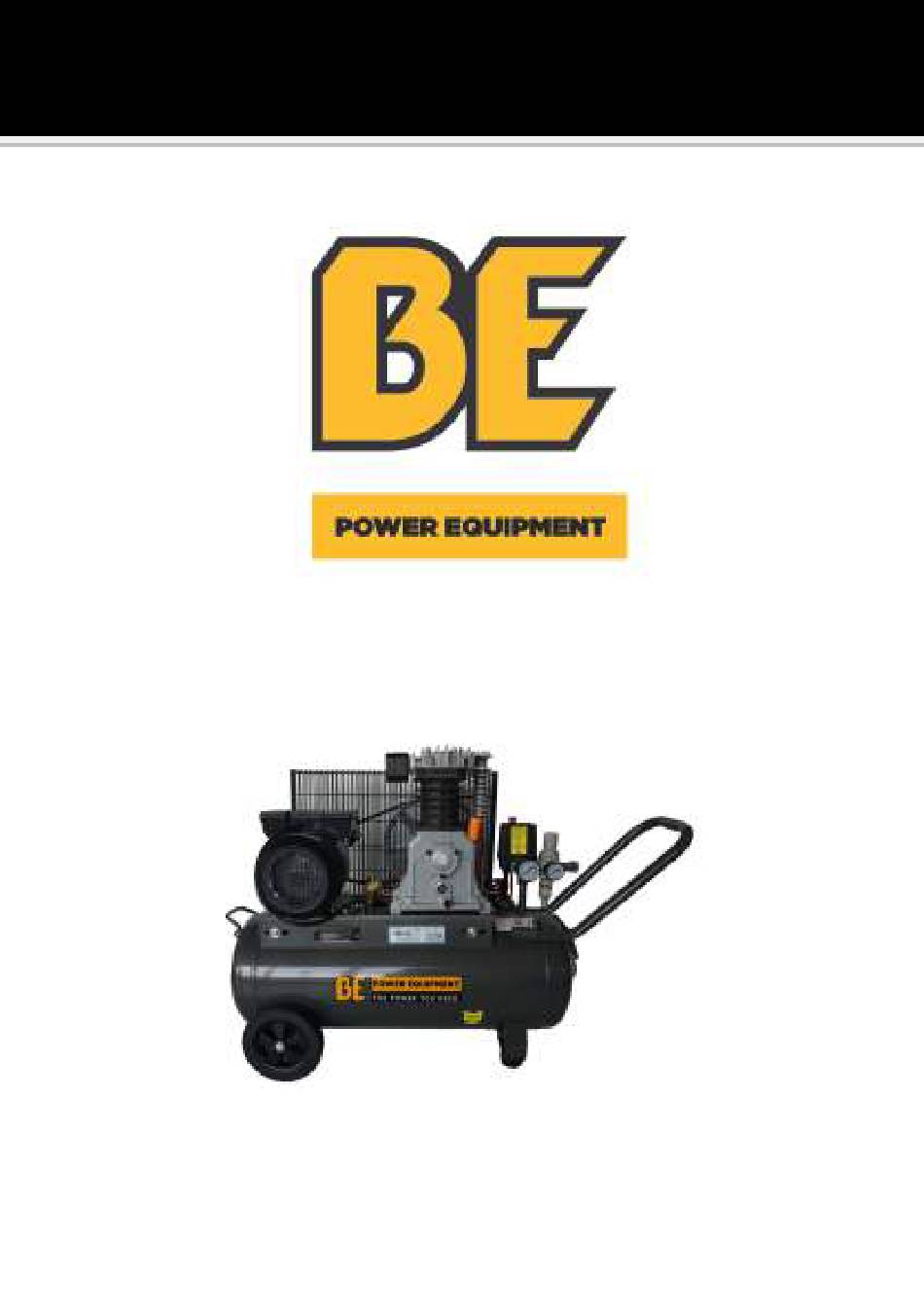

- Page 1 AIR COMPRESSOR OPERATORS MANUAL Version 5.1...
-
Page 2: Table Of Contents
Congratulations on purchasing your new BE Air Compressor Your BE Compressor has been designed to give many years of reliable service when used in accordance with the following instructions. The following should be carried out before using your new compressor: READ INSTURCTION MANUAL Carefully read this instruction manual and understand before starting your new compressor. -
Page 3: Knowing Your Air Compressor
SAFETY INSTRUCTIONS The information listed below should be read and understood by the operator. This information is given to protect the user while operating and storing the air compressor. We utilise the symbols below to allow the reader to recognize important information about their safety. - Page 4 This air compressor does not provide breathable air for anyone or any auxiliary breathing device. Spraying material always needs to be in an area away from the air compressor to prevent damage to the air compressor filter. Never utilise the air compressor in the rain or wet conditions.
-
Page 5: Specifications
DUTY CYCLE BE recommend a maximum duty cycle of 60% of on-load and 40% off-load for all BE Industrial compressors and 30% on load and 70% off load on domestic range. Cycle times over this may cause damage to your compressor. - Page 6 AIR COMPRESSOR PARTS AND FEATURES P a g e...
- Page 7 Pressure Switch: This controls the power to the motor and the cut-in/cut-out pressure settings. This switch serves as the Auto-On/Off positions for the unit. Air Intake Filter: Provides clean air to the pump and must always be kept free of debris. Check daily or before each use. Picture shown in assembly section.
-
Page 8: Installation & Assembly
The air compressor should always be in a level, clean, dry, and well-ventilated environment. The unit should have a minimum, 30cm of space on each side. The air filter intake should be free of any debris or obstructions. Check the air filter daily to be sure it is clean and in working order. -
Page 9: Lubrication And Oil
Adjust the filter regulator to a psi/kpa setting that is needed for your application and be sure it is within the safety standards required to perform the task. - Page 10 Water that remains in the air tank during storage will corrode and weaken the air tank which could cause it to rupture. To avoid serious injury, be sure to drain the tank after each use or daily. Do not use your electric or engine drive air Compressor outdoors while it is raining or on a wet surface. Either of these situations could result in electric shock or damage to the machine.
-
Page 11: Preventative Maintenance
To ensure efficient operation and longer life of the air compressor unit a routine maintenance schedule should be followed. The following schedule is geared toward a consumer whose compressor is used in a normal working environment daily. If necessary, the schedule should be modified to suit the conditions under which your compressor is used. -
Page 12: Storage
STORAGE For storing the air compressor, be sure to do the following: Turn the unit off and unplug the power cord from the receptacle. Remove all air hoses, accessories, and air tools from the air compressor. Perform the daily maintenance schedule. -
Page 13: Maintenance And Repair Record
MAINTENANCE AND REPAIR RECORD DATE OF MODEL SERIAL PLACE OF PURCHASE NUMBER NUMBER PURCHASE DATE MAINTENANCE AND REPAIR ACTIVITY 12 | P a g e... - Page 14 15 Hudson Place, Mulgrave, NSW, Australia 2756 Phone: 02 4577 2144 www.bargroup.com.au Distributed in New Zealand by CONTACT DETAILS BE Pressure Supply 541D Te Rapa Road, Te Rapa, Hamilton 3200, New Zealand Phone: 0800 237 769 www.bepressure.co.nz Errors and omissions excepted Specifications and performance may change Version 5.1;...
