SMC Networks IS10M-20-D Operation Manual

Pressure switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

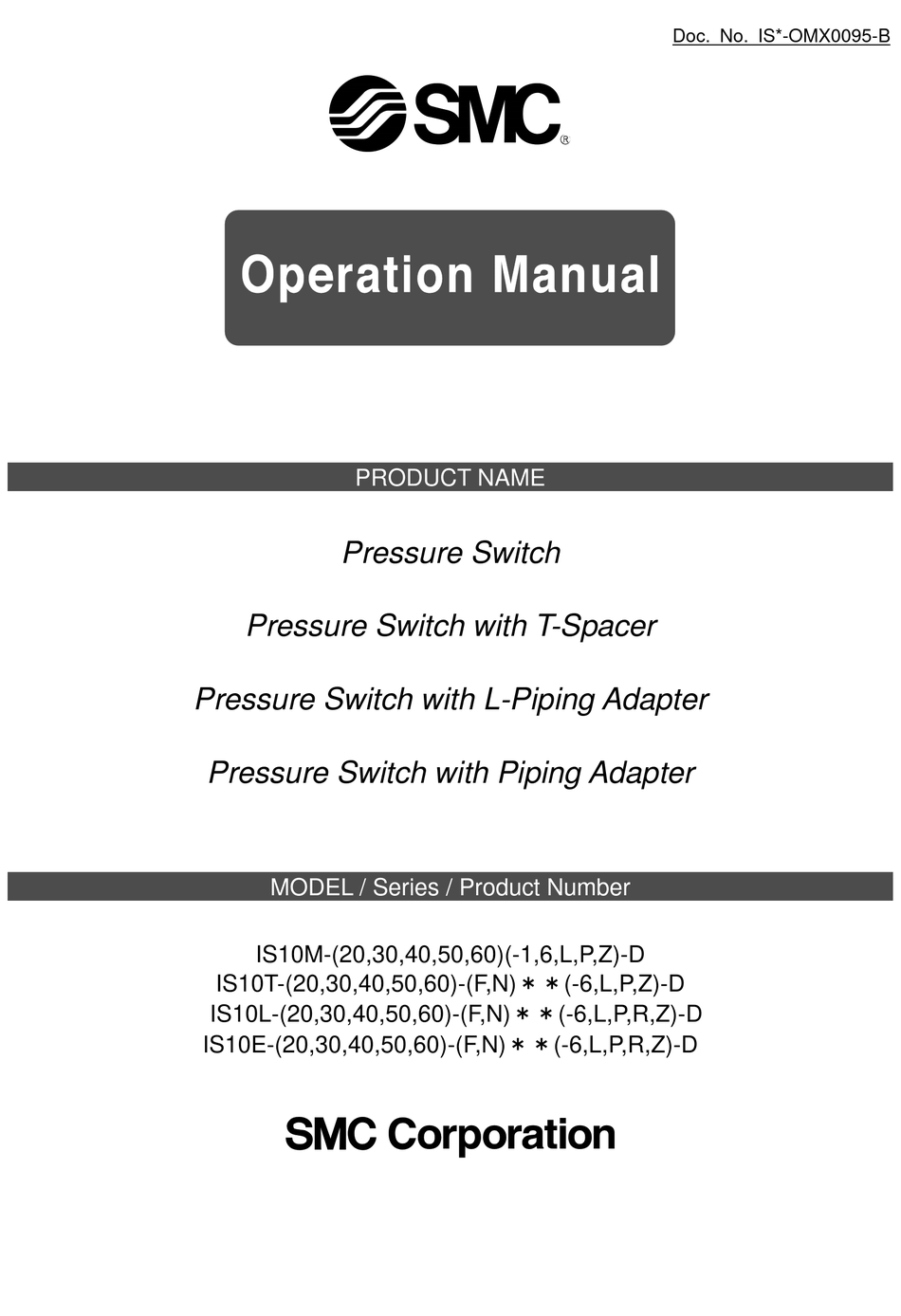

Doc. No. IS*-OMX0095-B
PRODUCT NAME
Pressure Switch
Pressure Switch with T-Spacer
Pressure Switch with L-Piping Adapter
Pressure Switch with Piping Adapter
MODEL / Series / Product Number
IS10M-(20,30,40,50,60)(-1,6,L,P,Z)-D
IS10T-(20,30,40,50,60)-(F,N)＊＊(-6,L,P,Z)-D
IS10L-(20,30,40,50,60)-(F,N)＊＊(-6,L,P,R,Z)-D
IS10E-(20,30,40,50,60)-(F,N)＊＊(-6,L,P,R,Z)-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS10M-20-D and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks IS10M-20-D

Summary of Contents for SMC Networks IS10M-20-D

  • Page 1 Doc. No. IS*-OMX0095-B PRODUCT NAME Pressure Switch Pressure Switch with T-Spacer Pressure Switch with L-Piping Adapter Pressure Switch with Piping Adapter MODEL / Series / Product Number IS10M-(20,30,40,50,60)(-1,6,L,P,Z)-D IS10T-(20,30,40,50,60)-(F,N)＊＊(-6,L,P,Z)-D IS10L-(20,30,40,50,60)-(F,N)＊＊(-6,L,P,R,Z)-D IS10E-(20,30,40,50,60)-(F,N)＊＊(-6,L,P,R,Z)-D...

  • Page 2: Table Of Contents

    Contents Page 1. Safety Instructions 2. Application 3. Standard Specifications 4. Electric circuit 5. Relation between Pressure setting and operating pressure 6. How to Order 11-14 7. Structural Drawing 8. Type of scale 9. Pressure Setting Method 10. Trouble Shooting 17-18 11.

  • Page 3: Safety Instructions

    Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
  • Page 4 Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
  • Page 5 Precautions for Design Warning (1) Keep the load/resistance within the specified range. Operation outside of the specification range may cause damage to the product or operation failure. (2) Air is the applicable fluid for this product. Please contact us when fluids other than air are used. Usage of inapplicable fluids may cause fluid leakage or malfunction.
  • Page 6 Piping Warning (1) Before piping is connected, it should be thoroughly blown out with air (flushing) or washed to remove chips, cutting oil and solid foreign material from inside the pipe. Contamination of piping may cause damage or malfunction. (2) When screwing together pipes and fittings, etc., be certain that chips from the pipe threads and sealant do not get inside the pipe.
  • Page 7 Wiring Warning (1) Make sure to connect a load to the product before turning the power supply on. The switch will damaged if no load is connected. (2) Wiring should be kept as short as possible. When the load which is operated by this product is an inductive load such as solenoid or relay, or the lead wire is 5m or longer, use the contact protection box shown in the table below.
  • Page 8 Pressure Setting Warning (1) Set within the display pressure range of the scale plate. If it is set outside of the pressure display range, it may cause operation failure or setting deviation. Caution (1) Use a screwdriver of a size suitable for the groove of the adjustment screw. (2) The switch setting display indicator shows the pressure when the switch is turned off.

  • Page 9: Application

    2. Application 　 This product is intended to check the supply pressure of a pneumatic line, 　 and control each pneumatic line with electric signals. 3. Standard specifications 　 3-1. 【PRESSURE SWITCH】IS10M-20-D to IS10M-60-D Model IS10M-20-D IS10M-30-D IS10M-40-D IS10M-50-D IS10M-60-D...
  • Page 10 　 3-3. 【PRESSURE SWITCH WITH L-PIPING ADAPTER】IS10L-20-D to IS10L-60-D Model IS10L-20-D IS10L-30-D IS10L-40-D IS10L-50-D IS10L-60-D Port size 1/8, 1/4 1/8, 1/4, 3/8 1/4, 3/8, 1/2 1/2, 3/4 1/2, 3/4, 1 Fluid Ambient and fluid temperature -5 to 60 C (with no freezing) Proof pressure 1.0MPa Max.

  • Page 11: Electric Circuit

    4. Electric circuit 5. Relation between Pressure setting and operating pressure OFF pressure ON pressure Set pressure scale MPa -10-...

  • Page 12: How To Order

    6. How to Order 6-1. 【PRESSURE SWITCH】IS10M-20-D to IS10M-60-D IS10 ❶ ❷ ❶ Symbol Description Body size ● ● ● ● ● 0.1 to 0.4MPa Set pressure range ● ● ● ● ● Note2) 0.1 to 0.6MPa ● ● ●...
  • Page 13 6-2. 【PRESSURE SWITCH WITH T-SPACER】IS10T-20-D to IS10T-60-D IS10 ❶ ❷ ➌ ➍ ❶ Symbol Description Body size ● ● ● ● ● ❷ Ｎ ● ● ● ● ● Pipe thread type Ｆ ● ● ● ● ● ● ● ●...
  • Page 14 6-3. 【PRESSURE SWITCH WITH L-PIPING ADAPTER】IS10L-20-D to IS10L-60-D Ｌ IS10 ❶ ❷ ➌ ➍ ❶ Symbol Description Body size ● ● ● ● ● ❷ Ｎ ● ● ● ● ● Pipe thread type Ｆ ● ● ● ● ● ●...
  • Page 15 6-4. 【PRESSURE SWITCH WITH PIPING ADAPTER】IS10E-20-D to IS10E-60-D IS10 ❶ ❷ ➌ ➍ ❶ Symbol Description Body size ● ● ● ● ● ❷ Ｎ ● ● ● ● ● Pipe thread type Ｆ ● ● ● ● ● ● ●...

  • Page 16: Structural Drawing

    7.Structural Drawing Structural Drawing 【PRESSURE SWITCH 【PRESSURE SWITCH】 【PRESSURE SWITCH WITH L-PIPING ADAPTER】 IS10M-20-D to IS10M-60-D WITH T-SPACER】 IS10L-20-D to IS10L-60-D IS10T-20-D to IS10T-60-D Adjusting screw Lead wire Indicator Scale plate Air flow Body Air flow Air flow 【PRESSURE SWITCH WITH PIPING ADAPTER】...

  • Page 17: Pressure Setting Method

    9. Pressure Setting Method Adjusting screw （Example: set 0.2MPa） Indicator Indicator Scale plate Pressure is adjusted by rotating the adjustment screw and setting the indicator to the figure on the scale. Set pressure increases by rotating the adjustment screw clockwise. Use a screwdriver of a size suitable for the groove (+) of the adjustment screw.

  • Page 18: Trouble Shooting

    10.TROUBLE SHOOTING In order to maintain product quality, the pressure switch's parts can not be replaced. The whole product needs to be replaced with a new one when any failure occurs. Failure Possible cause Countermeasure Switch does Power supply failure 1.
  • Page 19 10.TROUBLE SHOOTING Failure Possible cause Countermeasure Switch does Fused contact of the 1. The load conditions are outside of the specification. 1. and 2. Review the control circuit and not turn off. switch replace the pressure switch. 2. Overcurrent was applied to the switch 3.

  • Page 20: Dimensions

    11. Dimensions 11-1. 【PRESSURE SWITCH】IS10M-20-D to IS10M-60-D Model IS10M-20-D 77.6 60.1 IS10M-30-D 85.6 64.1 IS10M-40-D 93.6 68.1 IS10M-50-D 96.6 69.6 IS10M-60-D 106.6 74.6 11-2. 【PRESSURE SWITCH】IS10M-20-1-D to IS10M-60-1-D Model IS10M-20-1-D 10.6 83.8 66.3 IS10M-30-1-D 12.6 91.8 70.3 IS10M-40-1-D 14.6 97.8 72.3...
  • Page 21 11-3. 【PRESSURE SWITCH WITH T-SPACER】IS10T-20-D to IS10T-60-D Model Port size IS10Ｔ-20-D 1/8・1/4 77.6 60.1 IS10Ｔ-30-D 1/8・1/4・3/8 85.6 64.1 IS10Ｔ-40-D 1/4・3/8・1/2 93.6 68.1 IS10 Ｔ -50-D 1/4 ・ 3/8 ・ 1/2 ・ 3/4 96.6 69.6 IS10 Ｔ -60-D 3/8 ・ 1/2 ・ 3/4 106.6 74.6 11-4.
  • Page 22 11-5. 【PRESSURE SWITCH WITH PIPING ADAPTER】IS10E-20-D to IS10E-60-D Model Port size 1/8 ・ 1/4 ・ 3/8 IS10E-20-D 77.8 60.3 IS10E-30-D 1/4・3/8・1/2 85.8 64.3 IS10E-40-D 1/4・3/8・1/2・3/4 93.8 68.3 IS10E-50-D 96.8 69.8 3/4・１ IS10E-60-D 106.8 74.8 1 1/4 ・ 1 1/2 -21-...
  • Page 23 Revision history 50,60 size added,Corrected. May. 2021. 50,60 size added, Corrected to the cover. Oct. 2021. 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
