5.6
Mechanical Specifications
Weight
Ingress Protection
Enclosure
5.7

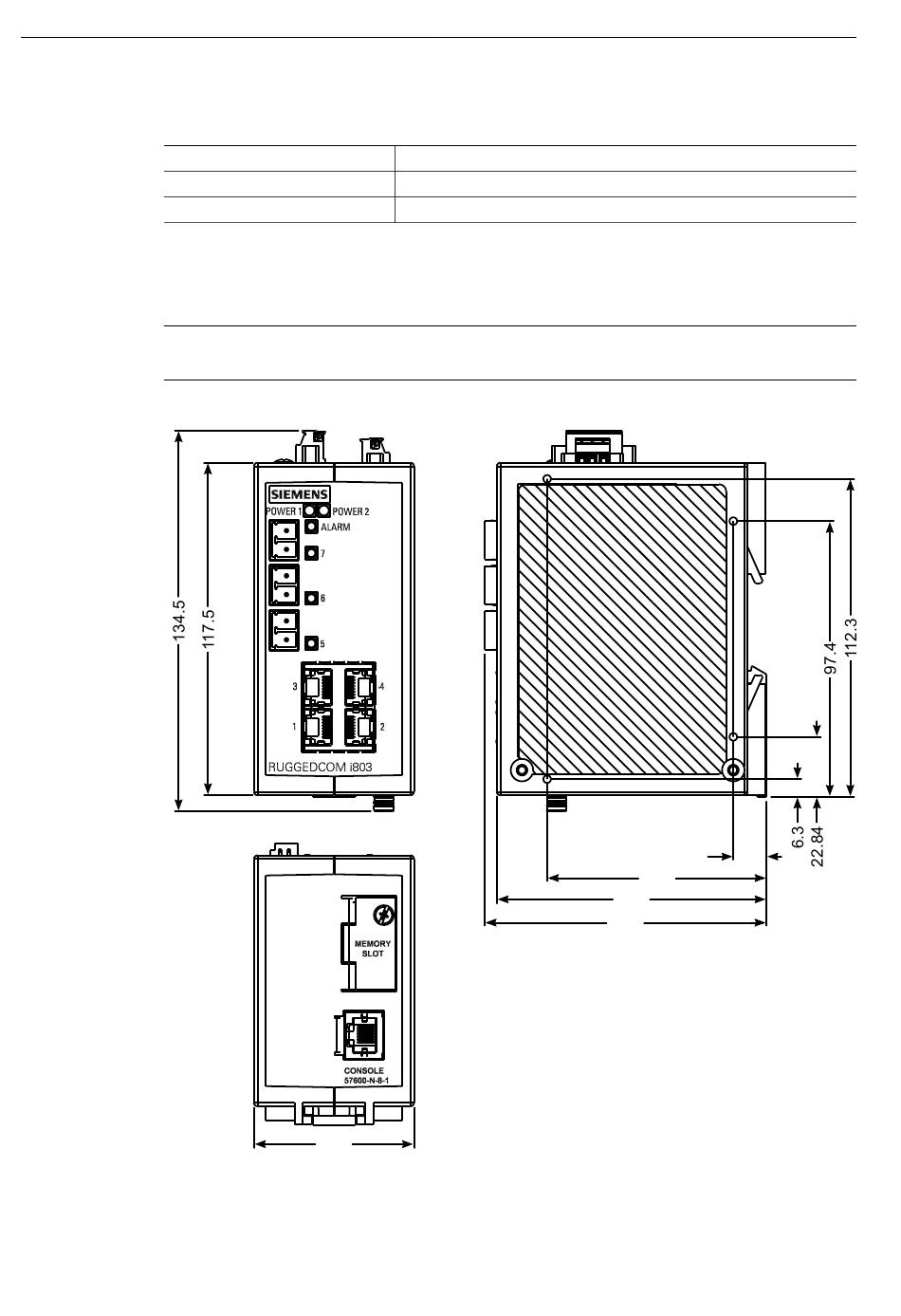

Dimension Drawings
Note
All dimensions are in millimeters, unless otherwise stated.
Figure 5.1
RUGGEDCOM i803
Installation Manual, 01/2021, C79000-G8976-1005-06
1.0 kg (2.2 lbs)
IP40 (1 mm or 0.04 in objects)
Cast Aluminum Enclosure
56.5
Overall Dimensions
Technical Specifications
5.6 Mechanical Specifications
11.7
77.5
95.3
99.5
21
