Note
For detailed dimensions of the device with the DIN rail adapter installed, refer to
"Dimension Drawings (Page
Mounting the Device
To mount the device to a DIN rail, do the following:
1.
2.
3.
RUGGEDCOM i803
Installation Manual, 01/2021, C79000-G8976-1005-06
Hook the top teeth of the adapter onto the DIN rail.
1
DIN Rail
1
DIN Rail Adapter
2

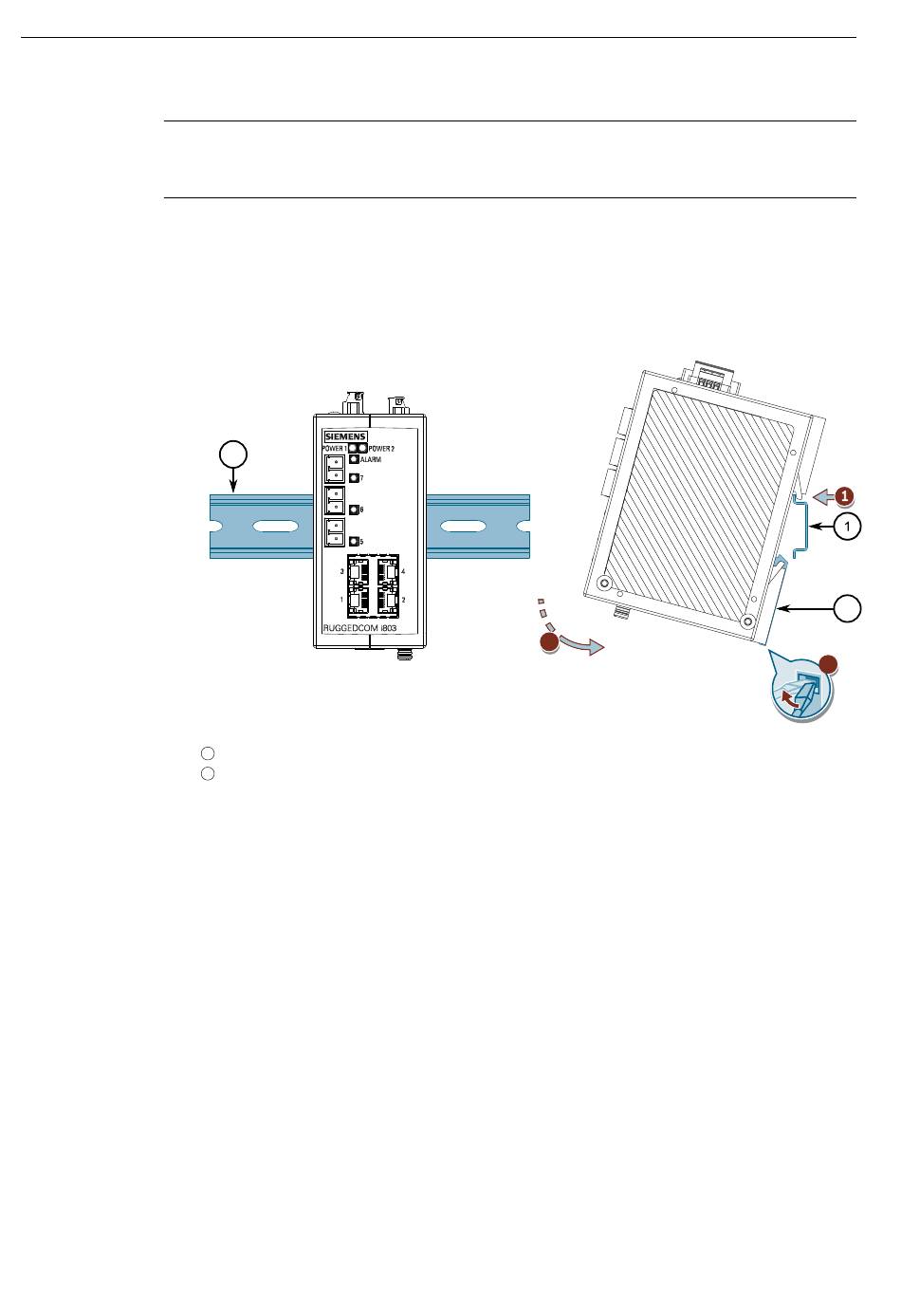

Figure 2.1
Mounting the Device to a DIN Rail
Insert a flathead screw driver into the slot of the sliding release and move it
down.
Push the device against the bottom of the DIN rail, then let go of the sliding
release to latch the device.
21)".
3
Installing the Device
2.3 Mounting the Device
2
2
7
