5. Special features
5.1. Ringing and off-hook handset relay detection

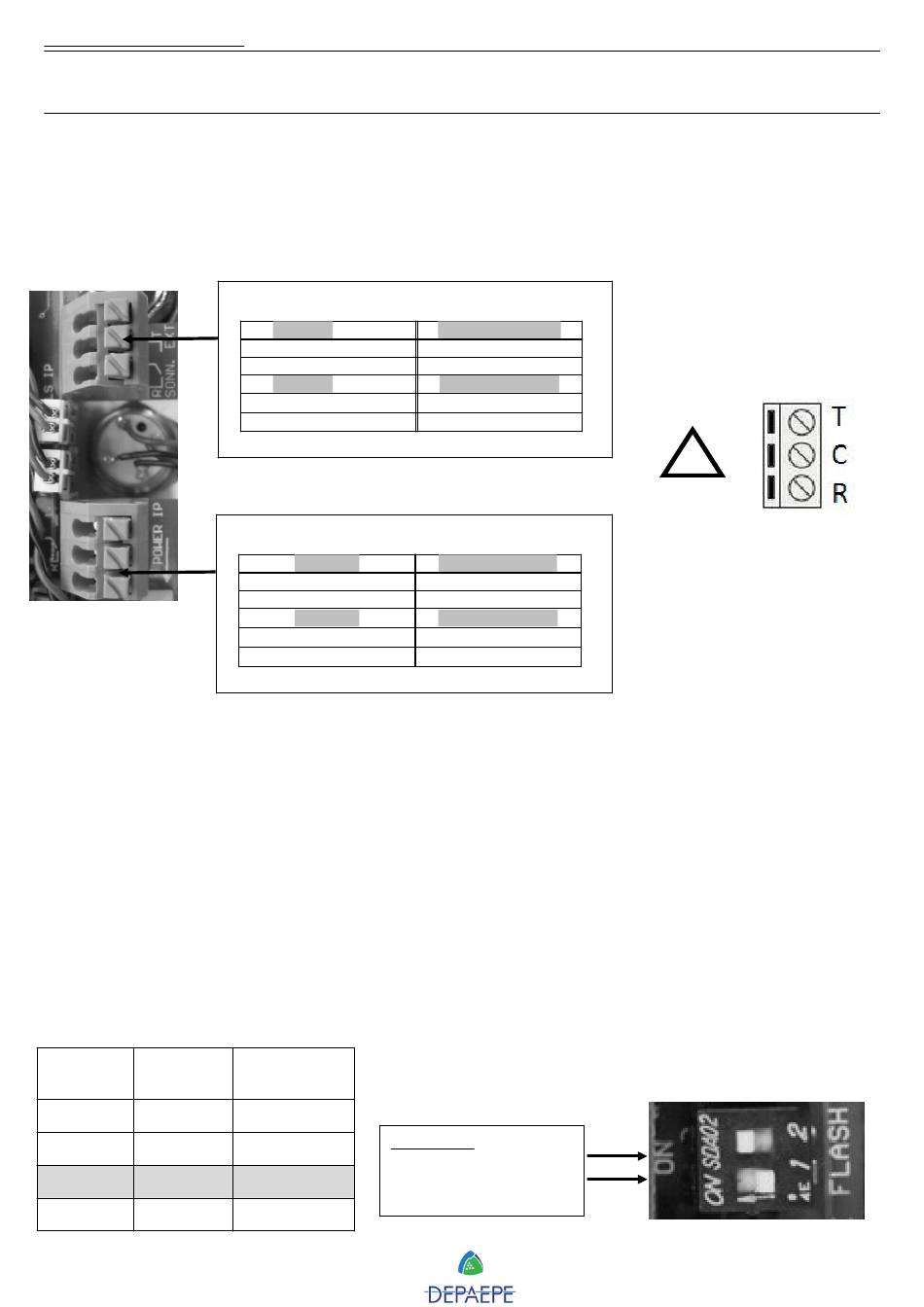

The SecurPhone IP is fitted with two common/NO/NC dry contacts (C/R/T) (see page
26), when ringing and (or) when going off-hook.
They can be used to drive an auxiliary ringer, an alarm, a camera, a light etc.
These 2 dry contacts accept up to 220V with a break capacity of 60VA/2A max (TRT3
TNV-3 access).
On a missed call, at the end of ringing, a delay of 3 seconds is effective on external
ringer contacts.
5.2. LEDs panel
Leds panel (see pictures pages 26&next) features 4 operating modes:
A=Permanent lighted panel and flashing when ringing.
B=Permanent lighted panel and no flashing when ringing.
C=No panel and no flashing when ringing.
D=No panel and flashing when ringing.
1 : Active 2 : Active
flash panel
ON ON
OFF ON
OFF OFF
ON OFF
Contact C/R/T for external ringer:
Ringing signal
Missing
Detected
Ringing signal
Missing
Detected
Contact C/R/T for handset:
Handset
On-hook
Off-hook
Handset
On-hook
Off-hook
Combination
N°
A

Leds panel

B
- Panel activation
- Flashing panel
C
activation
D
Contact on C/T
OPEN
CLOSED
Contact on R/C
CLOSED
OPEN
Contact on C/T
OPEN
CLOSED
Contact on R/C
CLOSED
OPEN
NO: normally open = R
NC: normally close = T
Common = C
!
