SecurPhone IP – User Guide

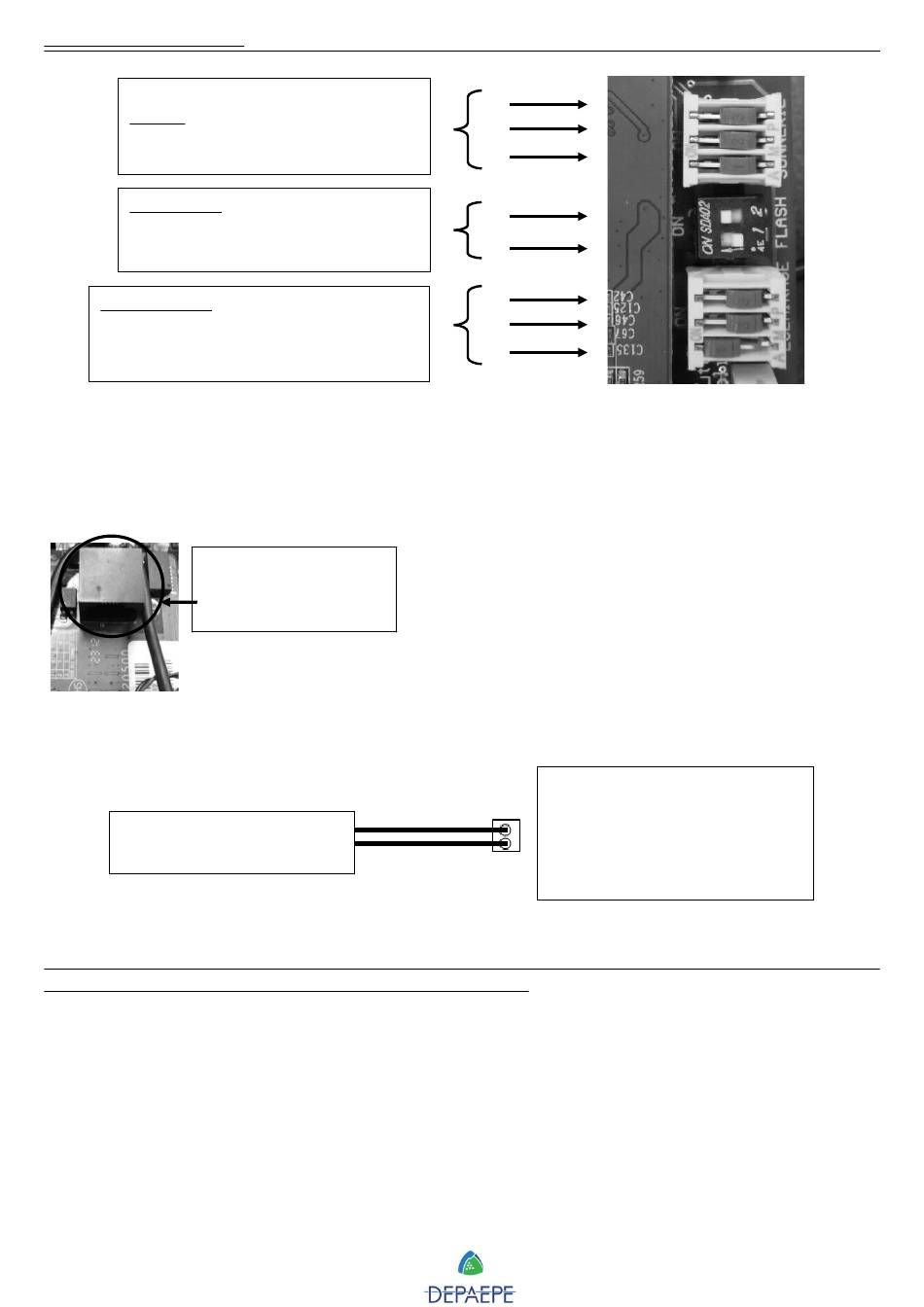

- Amplified speaker on off-hook
Ringer
- Amplified ringer
- Off ringer
Leds panel
- Panel activation
- Flashing panel activation
Back-lighting
- Lighting on off-hook
- Flashing when ringing deactivation
- Lighting on on-hook
Amplified ringing as well as lightning do not require any additional power supply.
A RJ45 plug provides a connection from SecurPhone IP to the Ethernet network with a
possibility of PoE powered thanks to Ethernet cable (see page 26).
TRT3 (TNV-3) access:
RJ45 plug for
Ethernet connection
If the phone is not PoE powered, an external power (included), whose specifications and
connection are here after, is required.
TRT3 (TNV-3) access :
Power connection 24V AC/DC
50Hz 600mA
Those ports are designed to be connected on a TRT3 (TNV-3) network in accordance
with EN 60950 amendments 1 to 11 specifications.
2.2. Drilling plans
See following pages
Power connection
24V AC/DC
27
