Installation manual

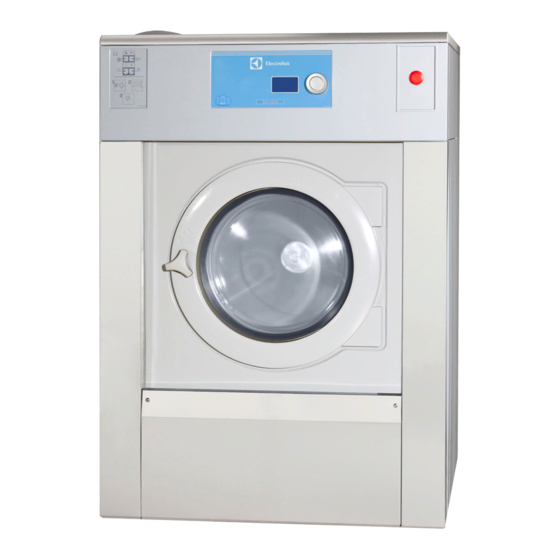

Washer extractor
W565H, W565HLE, W575H, W575HLE, W5105H,
W5130H, W5180H, W5240H, W5300H
Type W3...
438 9055-20/EN
Original instructions
2021.05.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W565H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electrolux W565H

  • Page 1 Installation manual Washer extractor W565H, W565HLE, W575H, W575HLE, W5105H, W5130H, W5180H, W5240H, W5300H Type W3... 438 9055-20/EN Original instructions 2021.05.04...
  • Page 3: Table Of Contents

    9.4.5 Central booking/payment (2F) ..................34 9.4.6 Machines with I/O module type 3 ..................35 Converting heating elements ....................36 9.5.1 W565H, W565HLE, W575H, W575HLE and W5105H can be converted from 400-415V 3AC to 230-240V 1AC with reduced power...............36 9.5.2 Converting heating elements ...................37 10 Steam connection ..........................37...
  • Page 5: Safety Precautions

    • The openings in the base, shall not be obstructed by a carpet. • Maximum mass of dry cloth: W565H, W565HLE: 7 kg, W575H, W575HLE: 8 kg, W5105H: 11 kg, W5130H: 14 kg, W5180H: 20 kg, W5240H: 27 kg, W5300H: 33 kg.
  • Page 6: General Safety Information

    Installation manual they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. – This appliance is intended to be used in household and similar applications such as: (IEC 60335-2-7) staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments, areas for communal use in blocks of flats or in...
  • Page 7: Warranty Terms And Exclusions

    Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time.
  • Page 8: Technical Data

    3 Technical data 3.1 Drawing 3.1.1 W565H, W565HLE, W575H, W575HLE, W5105H fig.8027 Operating panel Door opening, W565H, W565HLE, W575H, W575HLE: ⌀ 310 mm, W5105H: ⌀ 365 mm Detergent container Cold water Hot water Re-used water Drain valve Liquid detergent supply...
  • Page 9: W5130H

    Installation manual 3.1.2 W5130H fig.8028 Operating panel Door opening, W5130H: ⌀ 395 mm Detergent container Cold water Hot water Re-used water Drain valve Liquid detergent supply Electrical connection Steam connection W5130H 1340 1331 1044 W5130H 1243 1223 1123...
  • Page 10: W5180H, W5240H, W5300H

    Installation manual 3.1.3 W5180H, W5240H, W5300H fig.8029 Operating panel Door opening, W5180H, W5240H, W5300H: ⌀ 435 mm Detergent container Cold water Hot water Re-used water Drain valve Liquid detergent supply Electrical connection Steam connection W5180H 1426 1501 1130 W5240H 1020 1462 1545 1165...
  • Page 11: Technical Data

    Installation manual 3.2 Technical data W565H/ W575H/ W5105H W5130H W5180H W5240H W5300H W565HLE W575HLE Weight, net Drum volume litres Drum diameter Drum speed during wash Drum speed during extraction 1245 1245 1165 1115 1055 1005 G-factor, max. Heating: Electricity Heating: Steam Heating: Hot water 20.8...
  • Page 12: Setup

    4 Setup 4.1 Unpacking 4.1.1 W565H, W565HLE, W575H, W575HLE, W5105H The machine is delivered complete with expander bolts, supporting feet etc. The machine is delivered bolted onto the transport pallet and packed in a crate or box. Remove packing from the machine.
  • Page 13 Installation manual Remove the machine from the pallet. Note! When moving the machine, handle it with care. Make sure that the machine does not come down on the floor with either of the rear corners first. The side panel of the machine can be damaged. Place the machine on its final position.
  • Page 14: W5130H, W5180H, W5240H, W5300H

    Installation manual 4.1.2 W5130H, W5180H, W5240H, W5300H Note! Two persons are recommended for the unpacking. The machine is delivered complete with expander bolts, supporting feet etc. The machine is delivered bolted onto the transport pallet and packed in a crate or box. Remove packing from the machine.
  • Page 15: Siting

    Installation manual Remove the machine from the pallet. Note! When moving the machine, handle it with care. Place the machine on its final position. Mount the supporting feet. W5300H: Note the position of the two front feet. W5130H, W5180H, W5240H W5300H Remount the panels.
  • Page 16: Mechanical Installation

    The table shows the correct drilling points. W565H-W5105H: Mark and drill two holes (⌀ 8 mm) about 40 mm deep in the positions shown. W5130H-W5300H: Mark and drill two holes (⌀ 10 mm) about 50 mm deep in the positions shown.
  • Page 17: Marine Installation

    Installation manual 5 Marine installation The maximum inclination allowed in any direction is 4°. To ensure steadiness of the machine; the machine must be fastened to the floor.
  • Page 18: Water Connection

    Information is also available on the panel above the connections. Water type Water connection W565H, W565HLE, W575H, W575HLE W565H, W565HLE, W575H, W575HLE • Cold 1. Cold W565H, W565HLE, W575H, W575HLE,...
  • Page 19 Installation manual For WRAS-approved machines: Remove the three plastic covers (A). fig.7811B Water pressure: Miniumum: 50 kPa (0.5 kp/cm Maximum: 800 kPa (8 kp/cm Recommended: 200–600 kPa (2–6 kp/cm Note! If the water pressure is below the minimum value, the wash result can not be guaranteed for certain program. For WRAS-approved machines;...
  • Page 20: Connection Of External Dosing Systems

    Installation manual 7 Connection of external dosing systems 7.1 Connection of the hoses The machine is prepared for connection of external dosing systems or water re-use systems etc. The connections are closed at delivery. Open any of the connections that shall be used by drilling a hole where the hoses shall be connected.
  • Page 21: Electrical Connection Of External Dosing System

    Installation manual 7.2 Electrical connection of external dosing system The power supply to the external dosing system must never be connected to the machine’s incoming terminal block or to the edge connectors on the I/O-board. 7.2.1 Machine with connectors Connect the external dosing system to connections A and B on the machine. Connect the signal cable to B and the power supply to A.
  • Page 22: Machine Without Connectors

    Installation manual 7.2.2 Machine without connectors Connect the external dosing system to the I/O board, which is located to the right of the incoming power supply. The I/O board has edge connectors for connecting external dosing systems. Edge connectors on the I/O board can be loosened for connecting cables. fig.6572 11 = N 18 = Program run...
  • Page 23: Outputs

    Installation manual 7.2.3 Outputs Connect the power supply (e.g. 24V DC) for the external liquid supplies to 9 and 10. If an internal power supply (from the machine) is being used, it can be taken from 1 (N) and connected to 9 and from 2 (L) and connected to 10. Max load on the outputs 0.5 A.
  • Page 24: Inputs

    Installation manual 7.2.4 Inputs The signal level can be 5-24V DC/AC or 100- 240V AC. For 5-24V, the signal reference is connected to 3 and for 100-240V to 4. Potentials on the inputs cannot be mixed. Note! The I/O board will be damaged if the voltage on connection 3 is too high > 24V. Connection 8 may be connected if the program is to pause, e.g.
  • Page 25: Drain Connection

    Installation manual 8 Drain connection Connect a 75 mm (50 mm for models W565-W5105) pipe or rubber hose to the machine’s drain pipe, ensuring a downward flow from the machine. Avoid sharp bends which may prevent proper draining. The drainage pipe should be located over a floor drain, drainage channel or the like so that the distance between the outlet and the drain is at least 25 mm.
  • Page 26: Electrical Connection

    Installation manual 9 Electrical connection 9.1 Electrical installation The electrical installation may only be carried out by qualified personnel. Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break- er. It is important to know that the machines are designed to provide a high level of personal safety, which is why items of external equipment such as earth leakage circuit breakers are not necessary but is recommended.
  • Page 27: Electrical Connections

    Installation manual 9.2 Electrical connections W565H, W565HLE Heating alternative Main voltage Heating power Total power Recommended fuse Electric heated 220-240V 1 ~ 50/60 5.4/7.5 5.5/7.6 25/35 220-240V 1 ~ 50/60 2.0/3.0 2.1/3.1 16/16 220-240V 3 ~ 50/60 5.4/7.5 5.5/7.6 16/20...
  • Page 28 Installation manual W5180H Heating alternative Main voltage Heating power Total power Recommended fuse Electric heated 220-240V 3 ~ 50/60 18.0 18.3 380-415V 3N ~ 50/60 18.0 18.3 440V 3 ~ 18.0 18.4 480V 3 ~ 18.0 18.4 Non heated/Steam 220-480V 1 ~ 50/60 heated Max.
  • Page 29: Machine Connection

    Installation manual 9.3 Machine connection Connect the earth and other two wires as shown. Single-phase connection Three-phase connection 1NAC L2 L3 3N AC L2 L3 1N/1 3N AC L2/N Single phase machines may be powered either by connection between a phase and neutral or by connecting be- tween two phases.
  • Page 30: Functions For I/O-Cards

    Installation manual 9.4 Functions for I/O-cards The electrical schematic can be one of the following: 9.4.1 External coin meter/Central payment (2A) The signal received from external coin meters must be a pulse between 300–3000 ms (500 ms is recommended) with a minimum pause of 300 ms (500 ms is recommended) between two pulses. fig.6606A...
  • Page 31: Central Payment (2B)

    Installation manual 9.4.2 Central payment (2B) To start the machine from a central payment system, the payment system must transmit a start pulse to the machine. The start pulse can be either 230V or 24V. In order to receive a feedback signal once the machine has started, 230V or 24V must be connected to connection 19.
  • Page 32: Central Payment (2C)

    Installation manual 9.4.3 Central payment (2C) The central payment or booking system shall transmit an active (high) signal to the machine once permission has been granted to start the machine. The signal must remain active (high) until the machine starts. A feedback signal will be present on connection 18 and remain active (high) whilst the machine door is closed but the program has not started.
  • Page 33: Outputs For Detergent Signals And Inputs For Pause Signals, "Empty" Signal And Price Reduction (2D)

    Installation manual 9.4.4 Outputs for detergent signals and inputs for pause signals, "empty" signal and price reduction (2D) The figure shows standard function addressing for machines with the coin program package. By maintaining an active (high) signal on connection 5 ("Price red"), the price of the program can be reduced. This function has a number of uses, including providing reductions during a specific period of the day.
  • Page 34: Central Booking/Payment (2F)

    Installation manual 9.4.5 Central booking/payment (2F) The central payment or booking system shall provide an active (high) signal to the machine once permission has been granted to start the machine. The signal must remain active (high) until the machine starts. A feedback signal will be present on connection 18 and remain active (high) whilst the program is running.
  • Page 35: Machines With I/O Module Type 3

    Installation manual 9.4.6 Machines with I/O module type 3 By maintaining an active (high) signal on connection 3 "Price reduction”, the price of the program can be reduced. This function has a number of uses, including providing reductions during a specific period of the day. Whilst the sig- nal remains active (high), the price of the program is reduced by the percentage entered in the price programming menu.
  • Page 36: Converting Heating Elements

    Installation manual 9.5 Converting heating elements 9.5.1 W565H, W565HLE, W575H, W575HLE and W5105H can be converted from 400-415V 3AC to 230-240V 1AC with reduced power Disconnect the power to the machine. Demount the front panel and remove the cover to the heating elements.
  • Page 37: Converting Heating Elements

    Installation manual 9.5.2 Converting heating elements W5130H can be converted from 380-415V 3N AC to 220-240V 1N AC with reduced power Disconnect the power to the machine. Demount the cover panel to the electrical connections. Remove the cables that are connected to K21:2 and K22:6. Move the remaining cables from L2 and L3 to L1 or N ac- cording to the figure.
  • Page 38 Installation manual Mount the nipple to the steam valve. Mount the steam valve on the machine. Mount nipple, strainer and elbow. Note the direction of the strainer. Mount steam hose to the elbow. Check that there are no sharp angles or bends on the connected steam hose.
  • Page 39: At First Power Up

    Installation manual 11 At first power up When the installation is complete and the power is connected for the first time you will be forced to make the following settings. When one setting is ready you will automatically enter the next one. •...
  • Page 40: Function Check

    Installation manual 12 Function check May only be carried out by qualified personnel. A function check must be made when the installation is finished and before the machine can be ready to be used. Open the manual water valves. Start a program. •...
  • Page 41: Disposal Information

    Installation manual 13 Disposal information 13.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g.
