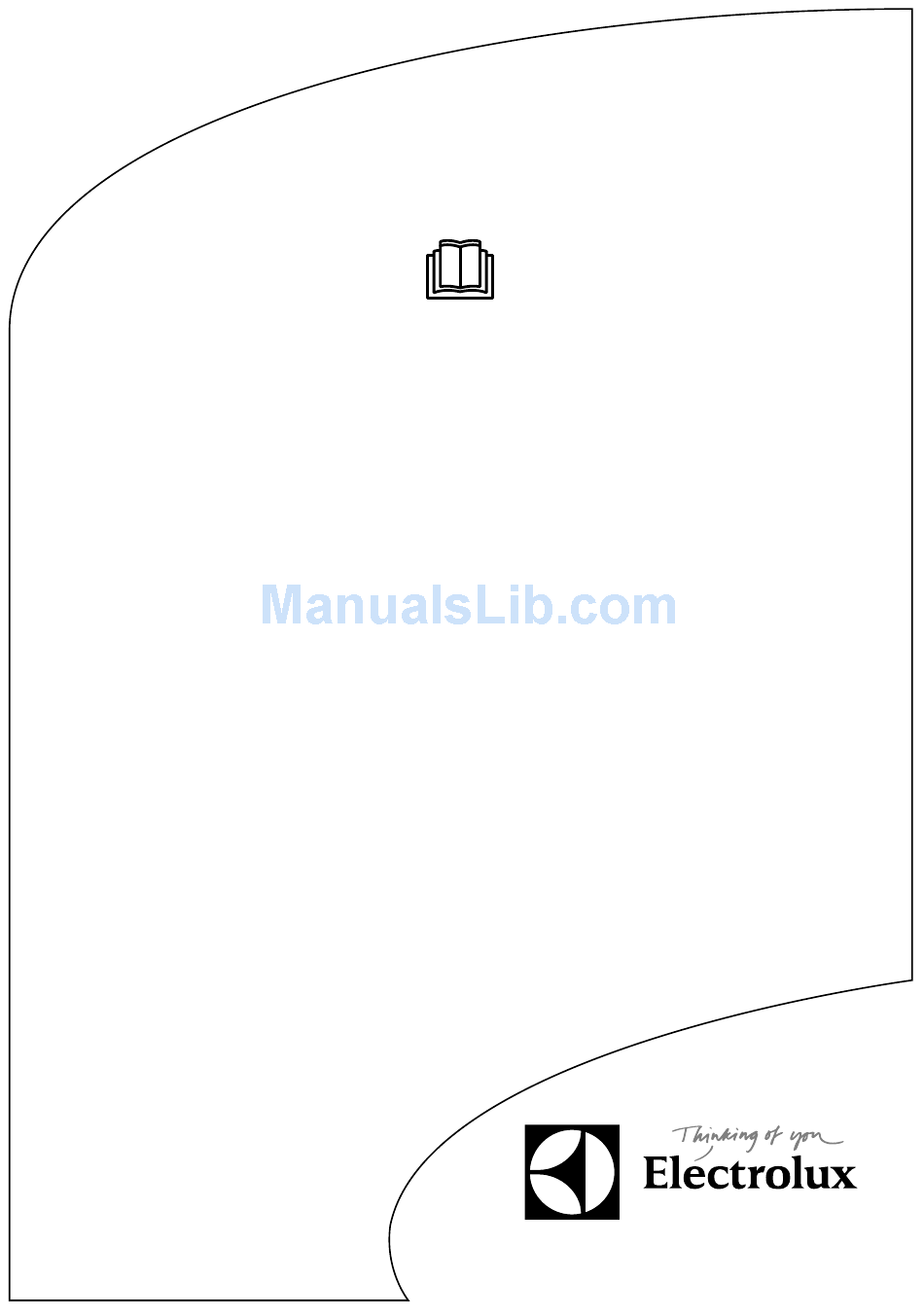

  • Page 1 Operating manual Washer extractor W555H Type W.55.H 438 9215-90/EN 2011.10.28 Operating manual in original language...

  • Page 3: Table Of Contents

    Contents Contents 1 Safety Precautions ......................5 2 Program description ......................6 2.1 General........................6 2.2 Program description ....................6 2.3 Option buttons ......................8 2.4 Load..........................9 3 Handling ..........................10 3.1 To start the machine ....................11 3.2 To start a coin operated machine ................12 3.3 When program has ended ..................

  • Page 5: Safety Precautions

    Safety Precautions 1 Safety Precautions The machine is only intended for water-wash use. Do not allow minors to use the machine. Do not hose down the machine with water. The machine's door lock must under no circumstances be bypassed. If the machine develops a fault, this must be reported to the person in charge as soon as possible. This is important both for your safety and that of others.

  • Page 6: Program Description

    Program description 2 Program description 2.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended. It is recommendet to follow the care labelling of the garment as far as possible. 2.2 Program description The following programs can be available: Program...
  • Page 7 Program description For special markets, for example, the following group of programs can be available: Group of program Description General Programs for normal household textiles and textiles in hotels and restaurants. Programs for mops and workwear. Special mop program for microfibres. Hygiene Hygiene programs to meet the demands and recommendations of standards in different countries.

  • Page 8: Option Buttons

    Program description 2.3 Option buttons The following options can be available: Description Option button Eco program Washes using less water and energy. Eco friendly wash for normally soiled textiles. Heavy soil Long wash for heavy soiled textiles. Quick program The program will be ready as quick as possible. Short wash for light soiled textiles.

  • Page 9: Load

    Program description 2.4 Load For normal white and normal colour: For an optimal result it is recommended to load the machine to half. The maximum load is 6 kg.

  • Page 10: Handling

    Handling 3 Handling Load the goods into the machine according to recommendations and close the door. Add the correct amount of detergent and softener according to recommendations. fig.6996A ① Softener, liquid. Main wash for liquid detergent. Alt. for mop machines, liquid mop chemicals in last rinse. Pre-wash, powder or liquid detergent, if option “pre-wash”...

  • Page 11: To Start The Machine

    Handling 3.1 To start the machine Select the desired program by turning the control knob. It is possible to select “Eco program”, “Heavy soil” or “Quick program” by pressing one of the buttons. “Eco program” is preselected. Eco program Heavy soil Quick program It is also possible to select one or more options by pressing the option button(-s).

  • Page 12: To Start A Coin Operated Machine

    Handling 3.2 To start a coin operated machine Select the desired program by turning the control knob. Start the machine by inserting the correct amount of coins. 3.3 When program has ended Leave the door open when ready. This is to prevent that moisture stays in the machine and develop bacteria and mould.

  • Page 13: Error Codes

    Error codes 4 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 11:1 NO WATER Water level acknowledgement not reached in time.

  • Page 14: Maintenance

    Maintenance 5 Maintenance 5.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that the following maintenance is performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components.

  • Page 15: Detergent Container

    Maintenance 5.3 Detergent container Clean the detergent container at regular basis to avaid that it is being clogged by detergent residue. Remove the detergent container from the machine. Remove the siphons (A) and clean the detergent container and siphons with hot water and for example a small brush. Also clean the plastic parts in the space where the detergent container was placed in the machine.

  • Page 16: Drain

    Maintenance 5.2 Drain If the machine is equipped with a drain pump, check the drain pump at regular basis. Clean if necessary. Open the door to the drain pump and pull out the hose. Remove the plug (A) to empty the drain into for example a baking plate or similar.
  • Page 17 Maintenance When remounting, place the cut on the filter part downwards when inserting it. Make sure the connections are tight. ⑥ At regular basis, check the drain connection, joints in the drain pipe etc and remove any lint and dust. Clean with for example a small brush. When remounting, make sure the connections are tight. fig.6998A ⑦...

  • Page 18: Water Inlet

    Maintenance 5.3 Water inlet At regular basis, check the filter at the water inlet. Clean if necessary. Demount the hose to the water inlet and pull out the filter (A). When remounting, make sure the filter is in position and that the connections are tight. ⑧...
  • Page 19 A11 (2003) WN3..., N5... EN 61000-3-11 (2001) EXSM.X. EN 61000-6-2 (2005) WN3..., N4..., N5... EN 61000-6-3 (2007) N4... Försäkran om överensstämmelse EF-samsvarserklæring Electrolux Laundry Systems Sweden AB Electrolux Laundry Systems Sweden AB SE-341 80 Ljungby, Sverige SE-341 80 Ljungby, Sverige, försäkrar under eget ansvar att denna produkt, med typbeteckning och enl. ovan, är tillverkad i erklærer på eget ansvar at dette produktet, med typebetegnelse og produksjonsnummer som överensstämmelse med följande direktiv: angitt nedenfor, er produsert i samsvar med bestemmelsene i følgende direktiver:...
  • Page 20 Translation table for model name to type of approval Commercial name Type Commercial name Type W455H W.55H. T4300S N3... W555H W.55H. T4290 N4... W465H W3... T4530 N4... W475H W3... T4650 N4... W4105H W3... T4900 N4... W4130H W3... T41200 N4... W4180H W3...
  • Page 21 Skrotning av maskin När maskinen inte längre skall användas måste den lämnas till en återvinningsstation för destruktion. Många detaljer i maskinen går att återanvända, men den innehåller även annat material som måste tas om hand på ett korrekt sätt. Lämna därför aldrig maskinen eller delar av maskinen i hushållsavfallet, eftersom det kan leda till hälsorisker eller skador på...
