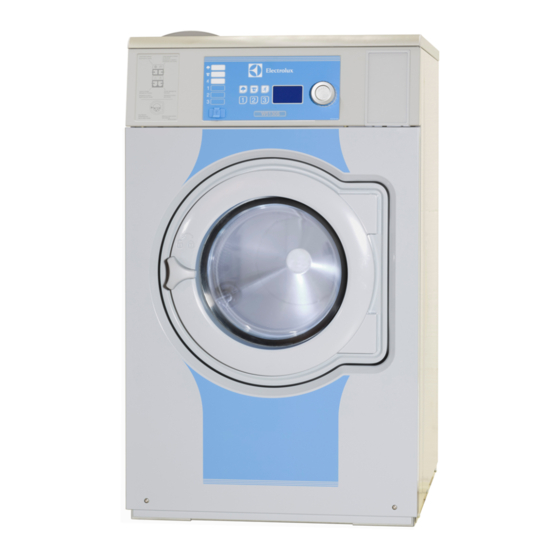

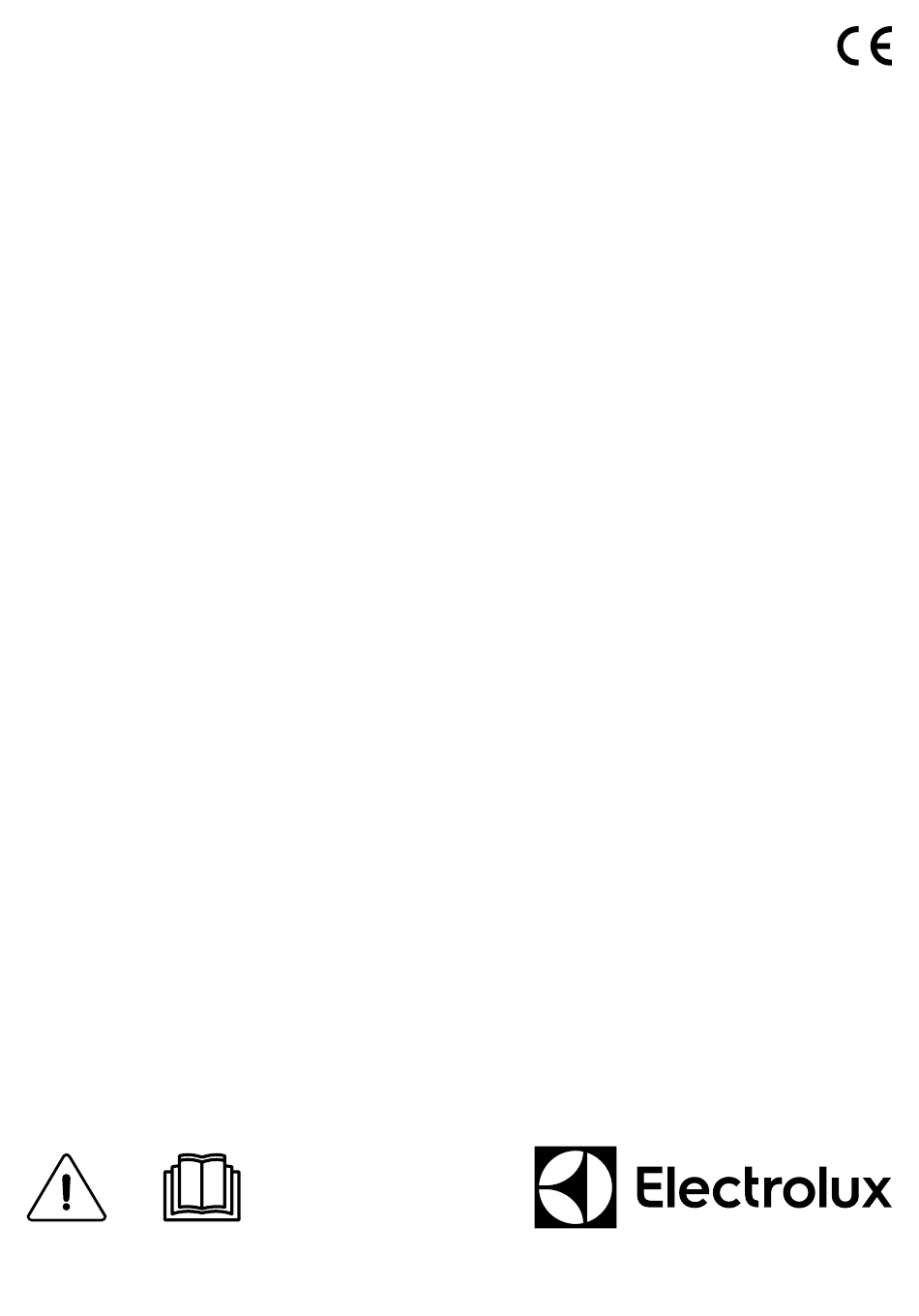

- Page 1 Installation manual Washer extractor W575N, W585N, W5105N, W5130N, W5180N, W5250N, W5330N Type W3... 438 9055-30/EN Original instructions 2019.01.30...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................6 Commercial use only........................6 Symbols............................6 2 Technical data.............................7 Drawing ............................7 2.1.1 W575N, W585N, W5105N ....................7 2.1.2 W5130N .........................8 2.1.3 W5180N .........................9 2.1.4 W5250N, W5330N ......................10 Technical data ......................... 11 Connections ..........................11 3 Setup ...............................12 Unpacking ..........................12 Siting ............................13... -
Page 5: Safety Precautions
Installation manual 1 Safety Precautions • Only use detergent intended for water-wash of textiles. Never use dry cleaning agents. • The machine shall be connected with new water hoses. Re-used water hoses must not be used. • The machine's door lock must under no circumstances be bypassed. •... -
Page 6: General Safety Information
Installation manual • Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR, UK: –... -
Page 7: Technical Data
Installation manual 2 Technical data 2.1 Drawing 2.1.1 W575N, W585N, W5105N fig.8030 Operating panel Door opening, W575N, W585N: ⌀ 310 mm, W5105N: ⌀ 365 mm Detergent container Cold water Hot water Re-used water Drain valve Liquid detergent supply Electrical connection Steam connection W575N 1131... -
Page 8: W5130N
Installation manual 2.1.2 W5130N fig.8031 Operating panel Door opening, W5130N: ⌀ 365 mm Detergent container Cold water Hot water Re-used water Drain valve Liquid detergent supply Electrical connection Steam connection W5130N 1216 1337 W5130N 1119 1099... -
Page 9: W5180N
Installation manual 2.1.3 W5180N fig.8032 Operating panel Door opening, W5180N: ⌀ 395 mm Detergent container Cold water Hot water Re-used water Drain valve Liquid detergent supply Electrical connection Steam connection W5180N 1345 1440 1048 W5180N 1247 1227 1127 W5180N... -
Page 10: W5250N, W5330N
Installation manual 2.1.4 W5250N, W5330N fig.8033 Operating panel Door opening, W5250N, W5330N: ⌀ 435 mm Detergent container Cold water Hot water Re-used water Drain valve Liquid detergent supply Electrical connection Steam connection W5250N 1029 1426 1599 1129 W5330N 1114 1465 1686 1168 W5250N... -
Page 11: Technical Data
Installation manual 2.2 Technical data W575N W585N W5105N W5130N W5180N W5250N W5330N Weight, net Drum volume litres Drum diameter Drum speed during wash Drum speed during extraction G-factor, max. Heating: Electricity Heating: Steam Heating: Hot water Frequency of the dynamic force Floor load at max extraction 1.6 ±... -
Page 12: Setup
Installation manual 3 Setup 3.1 Unpacking Note! For W5130N-W5330N two persons are recommended for the unpacking. The machine is delivered bolted onto the transport pallet and packed in a crate or box. Remove packing from the machine. Remove the front and rear panel. Remove the bolts between the machine and pallet. -
Page 13: Siting
Installation manual 3.2 Siting Install the machine close to a floor drain or open drain. The machine should be positioned so that there is plenty of room for working, both for the user and service personnel. The figure shows minimum distance to a wall and/or other machines. 500 mm / 25 mm / 25 mm /... -
Page 14: Mechanical Installation
Installation manual 3.3 Mechanical installation If the machine is not to be mounted on a base the machine must be fastened to the floor with the enclosed M16 bolts. The table shows the correct drilling points. Mark and drill four holes for the M16 bolts in the positions shown. Note! For W5330N two expansion bolts (1) MUST also be fitted to the front section of the machine. - Page 15 Installation manual Level the machine by using stainless or galvanized steel washers between the machine and the floor. The washers must be of a size to cover the support surface. Fit the washers and self-locking nuts supplied with the machine and tighten well.
-
Page 16: Casting A Plinth
Installation manual 3.3.1 Casting a plinth A plinth should be used where the existing floor is less than 150 mm thick or in order to ensure that the machine is above the level of any water leakages. The plinth should be approximately 150 - 200 mm in height. 150-200 mm / 5 7/8-7 7/8 inch 40 mm /... -
Page 17: Chemical Bolts
Installation manual 3.3.2 Chemical bolts An alternative to breaking up the existing floor or foundation is to use chemical bolts M16. 1. Mark and drill four holes (⌀ 18 mm) 125 mm deep for the chemical bolts. Check the previous table for the correct position of the holes. 2. -
Page 18: Chemical Anchors
Installation manual 3.3.3 Chemical anchors If installation shall be done on vinyl floor coverings chemical anchors shall be used. 1. Mark and drill four holes for the chemical anchors. Check the previous table for the correct position of the holes. 2. -
Page 19: Marine Installation
Installation manual 4 Marine installation 4.1 Siting Install the machine close to a floor drain or open drain. The machine should be positioned so that there is plenty of room for working, both for the user and service personnel. The figure shows minimum distance to a wall and/or other machines. fig.X00959 25 mm 500 mm... -
Page 20: Mechanical Installation
Installation manual 4.2 Mechanical installation To ensure steadiness of the machine it is important to fasten the machine to the foundation. Level the machine by using stainless or galvanized steel washers between the machine and the floor. The washers must be of a size to cover the support surface. Fit the washers and self-locking nuts supplied with the machine and tighten well. -
Page 21: Casting A Plinth
Installation manual 4.2.1 Casting a plinth A plinth should be used where the existing floor is less than 150 mm thick or in order to ensure that the machine is above the level of any water leakages. The plinth should be approximately 150 - 200 mm in height. 150-200 mm / 5 7/8-7 7/8 inch 40 mm /... -
Page 22: Welding A Foundation
Installation manual 4.2.2 Welding a foundation A welded foundation shall be made where a concrete foundation can not be made. fig.5837C Bolt M10 Washer, welded 66 x 40 x 4 mm Machine frame Welded Bolt M16 x 45 mm Washer 44 / 16.5 x 6 mm Washer 72 x 72 x 8 mm L-profile dimensions: W575N-W5130N: 80 x 80 x 8, W5180N-W5330N: 100 x 100 x 10 mm W575N... -
Page 23: Water Connection
Installation manual 5 Water connection All water intake connections to the machine should be fitted with manual shut-off valves and filters, to facilitate instal- lation and servicing. Water pipes and hoses should be flushed clean before installation. The machine shall be connected with new water hoses. Re-used water hoses must not be used. Hoses are to be of an approved type and grade and comply with IEC 61770. -
Page 24: Connection Of External Dosing Systems
Installation manual 6 Connection of external dosing systems 6.1 Connection of the hoses The machine is prepared for connection of external dosing systems or water re-use systems etc. The connections are closed at delivery. Open any of the connections that shall be used by drilling a hole where the hoses shall be connected. -
Page 25: Electrical Connection Of External Dosing System
Installation manual 6.2 Electrical connection of external dosing system The power supply to the external dosing system must never be connected to the machine’s incoming terminal block or to the edge connectors on the I/O-board. 6.2.1 Machine with connectors Connect the external dosing system to connections A and B on the machine. Connect the signal cable to B and the power supply to A. -
Page 26: Machine Without Connectors
Installation manual 6.2.2 Machine without connectors Connect the external dosing system to the I/O board, which is located to the right of the incoming power supply. The I/O board has edge connectors for connecting external dosing systems. Edge connectors on the I/O board can be loosened for connecting cables. fig.6572 11 = N 18 = Program run... -
Page 27: Outputs
Installation manual 6.2.3 Outputs Connect the power supply (e.g. 24V DC) for the external liquid supplies to 9 and 10. If an internal power supply (from the machine) is being used, it can be taken from 1 (N) and connected to 9 and from 2 (L) and connected to 10. Max load on the outputs 0.5 A. -
Page 28: Inputs
Installation manual 6.2.4 Inputs The signal level can be 5-24V DC/AC or 100- 240V AC. For 5-24V, the signal reference is connected to 3 and for 100-240V to 4. Potentials on the inputs cannot be mixed. Note! The I/O board will be damaged if the voltage on connection 3 is too high > 24V. Connection 8 may be connected if the program is to pause, e.g. -
Page 29: Drain Connection
Installation manual 7 Drain connection Connect a 75 mm (50 mm for models W575-W5105) pipe or rubber hose to the machine’s drain pipe, ensuring a downward flow from the machine. Avoid sharp bends which may prevent proper draining. The drainage pipe should be located over a floor drain, drainage channel or the like so that the distance between the outlet and the drain is at least 25 mm. -
Page 30: Electrical Connections
Installation manual 8.2 Electrical connections W575N Heating alternative Main voltage Heating power Total power Recommended fuse Electric heated 220-240V 1 ~ 50/60 5.4/7.5 5.7/7.8 25/35 220-240V 1 ~ 50/60 2.0/3.0 2.3/3.3 220-240V 3 ~ 50/60 5.4/7.5 5.7/7.8 16/25 380-415V 3N ~ 50/60 5.4/7.5 5.7/7.8... - Page 31 Installation manual W5250N Heating alternative Main voltage Heating power Total power Recommended fuse Electric heated 220-240V 3 ~ 50/60 18.0 18.8 380-415V 3N ~ 50/60 18.0 18.7 440V 3 ~ 18.0 18.8 480V 3 ~ 18.0 18.8 Non heated/Steam 220-480V 1 ~ 50/60 heated Max.
-
Page 32: Machine Connection
Installation manual 8.3 Machine connection Connect the earth and other two wires as shown. Single-phase connection Three-phase connection 1NAC L2 L3 3N AC L2 L3 1N/1 3N AC L2/N Single phase machines may be powered either by connection between a phase and neutral or by connecting be- tween two phases. -
Page 33: Functions For I/O-Cards
Installation manual 8.4 Functions for I/O-cards The electrical schematic can be one of the following: 8.4.1 External coin meter/Central payment (2A) The signal received from external coin meters must be a pulse between 300–3000 ms (500 ms is recommended) with a minimum pause of 300 ms (500 ms is recommended) between two pulses. fig.6606A... -
Page 34: Central Payment (2B)
Installation manual 8.4.2 Central payment (2B) To start the machine from a central payment system, the payment system must transmit a start pulse to the machine. The start pulse can be either 230V or 24V. In order to receive a feedback signal once the machine has started, 230V or 24V must be connected to connection 19. -
Page 35: Central Payment (2C)
Installation manual 8.4.3 Central payment (2C) The central payment or booking system shall transmit an active (high) signal to the machine once permission has been granted to start the machine. The signal must remain active (high) until the machine starts. A feedback signal will be present on connection 18 and remain active (high) whilst the machine door is closed but the program has not started. -
Page 36: Outputs For Detergent Signals And Inputs For Pause Signals, "Empty" Signal And Price Reduction (2D)
Installation manual 8.4.4 Outputs for detergent signals and inputs for pause signals, "empty" signal and price reduction (2D) The figure shows standard function addressing for machines with the coin program package. By maintaining an active (high) signal on connection 5 ("Price red"), the price of the program can be reduced. This function has a number of uses, including providing reductions during a specific period of the day. -
Page 37: Central Booking/Payment (2F)
Installation manual 8.4.5 Central booking/payment (2F) The central payment or booking system shall provide an active (high) signal to the machine once permission has been granted to start the machine. The signal must remain active (high) until the machine starts. A feedback signal will be present on connection 18 and remain active (high) whilst the program is running. -
Page 38: Machines With I/O Module Type 3
Installation manual 8.4.6 Machines with I/O module type 3 By maintaining an active (high) signal on connection 3 "Price reduction”, the price of the program can be reduced. This function has a number of uses, including providing reductions during a specific period of the day. Whilst the sig- nal remains active (high), the price of the program is reduced by the percentage entered in the price programming menu. -
Page 39: Converting Heating Elements
Installation manual 8.5 Converting heating elements W5180N can be converted from 380-415V 3N AC to 220-240V 1N AC with reduced power Disconnect the power to the machine. Demount the cover panel to the electrical connections. Remove the cables that are connected to K21:2 and K22:6. Move the remaining cables from L2 and L3 to L1 or N ac- cording to the figure. - Page 40 Installation manual Mount the nipple to the steam valve. Mount the steam valve on the machine. Mount nipple, strainer and elbow. Note the direction of the strainer. Mount steam hose to the elbow. Check that there are no sharp angles or bends on the connected steam hose.
-
Page 41: At First Power Up
Installation manual 10 At first power up When the installation is complete and the power is connected for the first time you will be forced to make the following settings. When one setting is ready you will automatically enter the next one. •... -
Page 42: Function Check
Installation manual 11 Function check May only be carried out by qualified personnel. A function check must be made when the installation is finished and before the machine can be ready to be used. Open the manual water valves. Start a program. •... -
Page 43: Disposal Of Packing
Installation manual 12.2 Disposal of packing The packing must be disposed of in compliance with the current regulations in the country where the appliance is used. All the packing materials are environmentally friendly. They can be safely kept, recycled or burned in an appropriate waste incineration plant. Recyclable plastic parts are marked as following examples. - Page 44 Electrolux Professional AB 341 80 Ljungby, Sweden www.electrolux.com/professional Share more of our thinking at www.electrolux.com...
