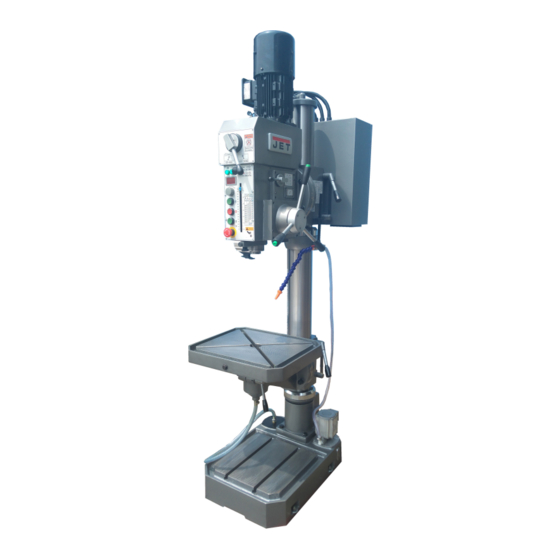

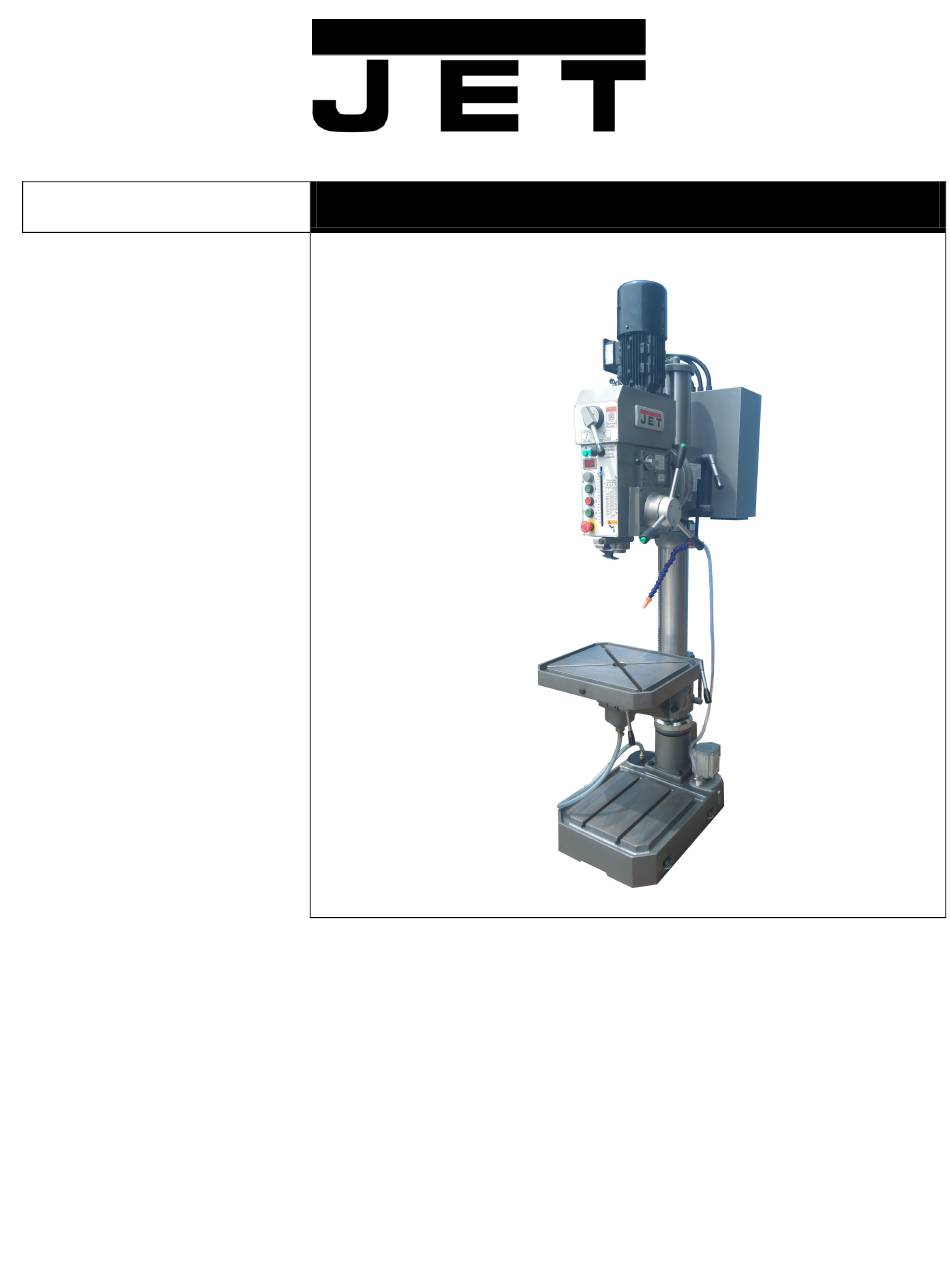

- Page 1 DRILL PRESS GHD-35PFV Original: Operating Instructions JPW (Tool ) AG Tämperlistrasse 5 CH-8117 Fällanden Switzerland Phone +41 44 806 47 48 +41 44 806 47 58 www.jettools.com M-50000966T 2016-04...
- Page 2 Total Model GHD-35PFV Operation Manual page Contents 1. Main use and features of the machine 2. Main technical data 3. Brief description of the driving system and its structure 4. Electrical system 5. Lubrication and coolant system 6. Hoisting and installation 7.
- Page 3 Total Model GHD-35PFV Operation Manual page Dear end-user, Thank you very much for choosing our products. Please let us have the model of your machine, series number, as well as the name, address and correspondence method of your company in order to facilitate us to let you have a good service.
- Page 4 1. Main use and features of the machine: GHD-35PFV vertical drilling machines are our new products designed and developed by our-self based on our accumulated experience in so many years in this field. It is a light, column type, superior quality and high efficiency machine vertical drilling machine.
- Page 5 Total Model GHD-35PFV Operation Manual page 2. Main technical data: 2.1 Main technical data Name of the items Unit Data Max. drilling diameter (steel) Max. taping diameter (steel) Distance between spindle center line to the center line of column Max. distance between spindle end to the surface of the worktable Max.
- Page 6 Total Model GHD-35PFV Operation Manual page 2.2 For the machine appearance and its main technical data, see diagram 1. 3. Brief description of the driving system and its structure: The machine consists of spindle box, column, machine base, worktable and its bracket, electric cabinet, coolant device and machine accessories, total seven component parts.
- Page 8 Total 24 Operation Manual page 6 drawing 2 picture of transmission...
- Page 9 Total 24 Model GHD-35PFV Operation Manual page 7 list of gear, worm wheel, worm and rack table（1） Number on the drawing GHD35PFV GHD35PFV GHD35PFV GHD35PFV GHD35PFV GHD35PFV GHD35PFV Part drawing -1-195 -1-020 -1-199 -1-152 -1-127 -1-128 -1-163 Number of teeth and...
- Page 10 Total 24 Model GHD-35PFV Operation Manual page 8 4.1 list of gear, worm wheel, worm and rack table（1） Number on the drawing GHD35PFV GHD35PFV GHD35PFV GHD35PFV GHD35PFV GHD35PFV GHD35PFV Part drawing -2-031 -1-087 -1-096 -1-086 -1-082 -1-103 Number of teeth and...
- Page 11 Total 24 Operation Manual page 9 drawing 3 picture of rolling bearing...
- Page 12 Total Model GHD-35PFV Operation Manual page Roller bearing table Table (2) Model Name Specification Q’ty Accuracy Deep racing ball bearing 1180909K；GB276 45×68×12 Deep racing ball bearing 7000108；GB276 40×68×9 Deep racing ball bearing 180104K；GB276 20×42×12 Deep racing ball bearing 180101K；GB276 12×28×8 Thrust ball bearing 8101；GB301...
- Page 13 Total 24 Operation Manual page 11 spindle motor M1 fan M1-1 handle button SB4 electric box B1 limit switch SQ2 pump button SX2 operation panel selection button for tapping SX1 handle button SB4 power supply button QS1 limit switch SQ3 transducer INV1 limit switch SQ1 illuminative lamp EL1...
- Page 16 Total Model GHD-35PFV Operation Manual page 4.2 Explanation of the circuit When using the machine, breaker QF1,QF2，which positioned electric box B1( drawing 4,5) must be closed, it can be opened when examined and repaired. The two breakers separately protect short circuit、over loading and short phase of spindle motor and pump motor .When close the chief switch QS1, the system is entering working state and the single lamp HL1 light up ,when break...
- Page 17 Total Operation Manual page Electric components list: Table (3) Code of Name Specification Q’ty Remark elements DZ108-2.5/4A Breaker DZ108-0.4/0.63A Breaker Instruction switch JCH13-20 CE4T-10R-02 Emergency stop button SB2,5 Push button CP1-10G-10 Push button CP1-10R-01 Push button Homemade SX1,2 Selection push button C2SS2-10B-10 SQ2,SQ3 Adjacent switch...
- Page 18 Total Model GHD-35PFV Operation Manual page 5. Lubrication and coolant system: 5.1 Lubrication system: Parts and bearings inside of the spindle box are all automatically lubricated. Oil level shall be a little bit higher than the centerline of the oil window when you fill lubrication oil. Too much oil filling will cause overflowing.
- Page 19 Total 24 Operation Manual page 17 VERTICAL DRILLING MACHINE Model ZWB5032A Total Current 4.85A Max. Drilling Capacity 32mm Net Weight 520kg Power Source 3PH/50Hz/400V Serial NO: Total Power 1.68kW Date: NANTONG SIEG MACHINERY PRODUCTION CO.,LTD Add: No.333,Zhonghua East Road,Sanchang Town, HaiMen City,Jiangsu Provice,China P.C.:226121 Tel:0086-513-82606111 E-mail:ntsieg@263.net drawing 6 picture of lubrication Chart of lubrication position...
- Page 20 Total 24 Operation Manual page 18 mm/r 0.10 0.20 0.30 drawing 7. picture of hoisting...
- Page 21 Total 24 Operation Manual page 19 mm/r 0.10 0.20 0.30 1600x1000 drawing 8 picture of installation of machine...
- Page 22 Total Model GHD-35PFV Operation Manual page Leveling the machine first, required tolerance should not be over 0.04/1000 both in horizontal and cross plane. Checking all items of the accuracy as per the table sheet of the certificate. Accuracy value for each checked item must not be over the required value.
- Page 23 Total Model GHD-35PFV Operation Manual page 7.4 Selection and operation of the spindle feed: There are three types of spindle feed selections for your choice as per the requirement of your machining: Manual feed: Simply moving the feed lever( 5 ) at the right side of the spindle box, the spindle will move down if turned the lever in counter clockwise and the spindle will move up if turned the lever in clockwise.
- Page 24 Total Model GHD-35PFV Operation Manual page 7.7Adjustment of worktable position: Symbols multi-use and convenience of the machine also reflects multi function of its worktable. Except its normal manual and auto up and down function, it can also be turned around the table itself, around the column and tilt in ±45°in horizontal position.
- Page 25 Total Model GHD-35PFV Operation Manual page 9. Machine use and maintenance: 9.1 Before running the machine, carefully read the Operation Manual first, fully understand the structure of the machine and its performance and needs to familiar with locations for all levers and buttons.
- Page 26 Total Model GHD-35PFV Operation Manual page 9.10 Do not extend spindle quill too much, instead, a proper working table height is suggested .Clean the spindle taper hole and tool taper shank first before tool mounting. Unqualified or rusted or damaged taper shank is forbidden to use.
- Page 27 Vertical Drilling Machine Model：GHD-35PFV Packing list Max. Drilling Diameter: 35mm Series Number:...
- Page 28 Total Model GHD-35PFV Packing list page Case No.: 1/1 Dimension ( L ×W × H): × × Gross weight: Net weight: Specification and Name Q’ty Remark marks Machine 1 piece Drill check with lever 1-13: GB6087 1 piece Drill check adaptor 1 piece 4-3;JB3477...
- Page 29 Vertical Drilling Machine Model：GHD-35PFV Ancillary page of Operation Manual Max. Drilling Diameter: 35 mm Series Number:...
- Page 30 、 文 反1 咱 4··EEl－J 虹（ l－－ 盼酣坡 ’ 也 咀 回 ． 市 力 － 、 ， 飞 、画，、‘ 四 ， 74·、叫且－ 秽 〉现／ ， h、平 ’’ ’ ” ’ ＇－ Parts Breakdown For GHD-35PFV Drill Press Drawing (1)
- Page 31 Part List for GHD-35PFV DRILL PRESS Part no. Descirption Size Qty. GHD35PFV-1-001 Knurled knob GHD35PFV-1-002 Taper pin 3X20 GHD35PFV-1-003 Knurled screw GHD35PFV-1-004 Rod screw Zn DM2X6 GHD35PFV-1-005 Cross Recess Head Screw GHD35PFV-1-006 Gasket Zn D2 GHD35PFV-1-007 Indicator sheet GHD35PFV-1-008 Slotted cheese head screws...
- Page 32 Part List for GHD-35PFV DRILL PRESS Part no. Descirption Size Qty. GHD35PFV-1-063 Slotted countersunk flat head screw M3x6 GHD35PFV-1-064 Sleeve GHD35PFV-1-065 3h9x3x10 GHD35PFV-1-066 Shaft GHD35PFV-1-067 Cross Recess Head Screw Cr. DM3x6 GHD35PFV-1-068 Label GHD35PFV-1-069 Slotted countersunk flat head screw M5x10...
- Page 33 Part List for GHD-35PFV DRILL PRESS Part no. Descirption Size Qty. GHD35FPV-1-125 Bearing 150202 GHD35FPV-1-126 External circlip GHD35FPV-1-127 Feed gear GHD35FPV-1-128 Feed gear GHD35FPV-1-129 Feed gear GHD35FPV-1-130 External circlip GHD35FPV-1-131 Spline shaft (Ⅲ) GHD35FPV-1-132 Bearing 180302K GHD35FPV-1-133 Bearing cover GHD35FPV-1-134...
- Page 34 Part List for GHD-35PFV DRILL PRESS Part no. Descirption Size Qty. GHD35FPV-1-187 Coil spring GHD35FPV-1-188 External circlip GHD35FPV-1-189 Slotted cheese-head screw M5x12 GHD35FPV-1-190 Bearing box GHD35FPV-1-191 Adjusting washer GHD35FPV-1-192 Circlip GHD35FPV-1-193 Bearing 180104K GHD35FPV-1-194 Adjusting washer GHD35FPV-1-195 Horizontal shaft GHD35FPV-1-196...
- Page 35 ↓ Parts Breakdown For GHD-35PFV Drill Press Drawing (2)
- Page 36 Part List for GHD-35PFV DRILL PRESS Part no. Descirption Size Qty. GHD35PFV-2-001 Base GHD35PFV-2-002 Drainage plate GHD35PFV-2-003 Washer GHD35PFV-2-004 Oil plug M16x1.5 GHD35PFV-2-005 Slotted countersunk flat head screw M3x6 GHD35PFV-2-006 Plate GHD35PFV-2-007 Cover GHD35PFV-2-008 Slotted cheese head screws M4x16 GHD35PFV-2-009...
- Page 37 Part List for GHD-35PFV DRILL PRESS Part no. Descirption Size Qty. GHD35PFV-2-063 Titled gear GHD35PFV-2-064 Shaft GHD35PFV-2-065 Worm GHD35PFV-2-066 Bearing 8103 GHD35PFV-2-067 Side cover GHD35PFV-2-068 Hexagon socket head cap screws M5x16 GHD35PFV-2-069 Taper pin 4x35 GHD35PFV-2-070 Handle GHD35PFV-2-071 Turing handle...
