Loading Media Roll - U-Line ZEBRA ZD410 Manual

1. Open the printer and pull the media guides away
from each other. (See Figure 3)
2. Pull the media guides open with your free hand and
place the media roll on the roll holders and release
the guides.
3. Orient the media roll so that its printing surface will
face up as it passes over the platen (drive) roller.
(See Figure 3)
4. Pull the end of the media roll so it extends out of the
front of the printer. Ensure the roll turns freely.
(See Figure 4)
NOTE: The media roll should be supported by
the media guides and should not sit in the
bottom of the media compartment.
5. Push the media roll under the media guides.
(See Figure 5)
6. Close the printer. Press down until the cover snaps
closed.
PAGE 4 OF 18

LOADING MEDIA ROLL

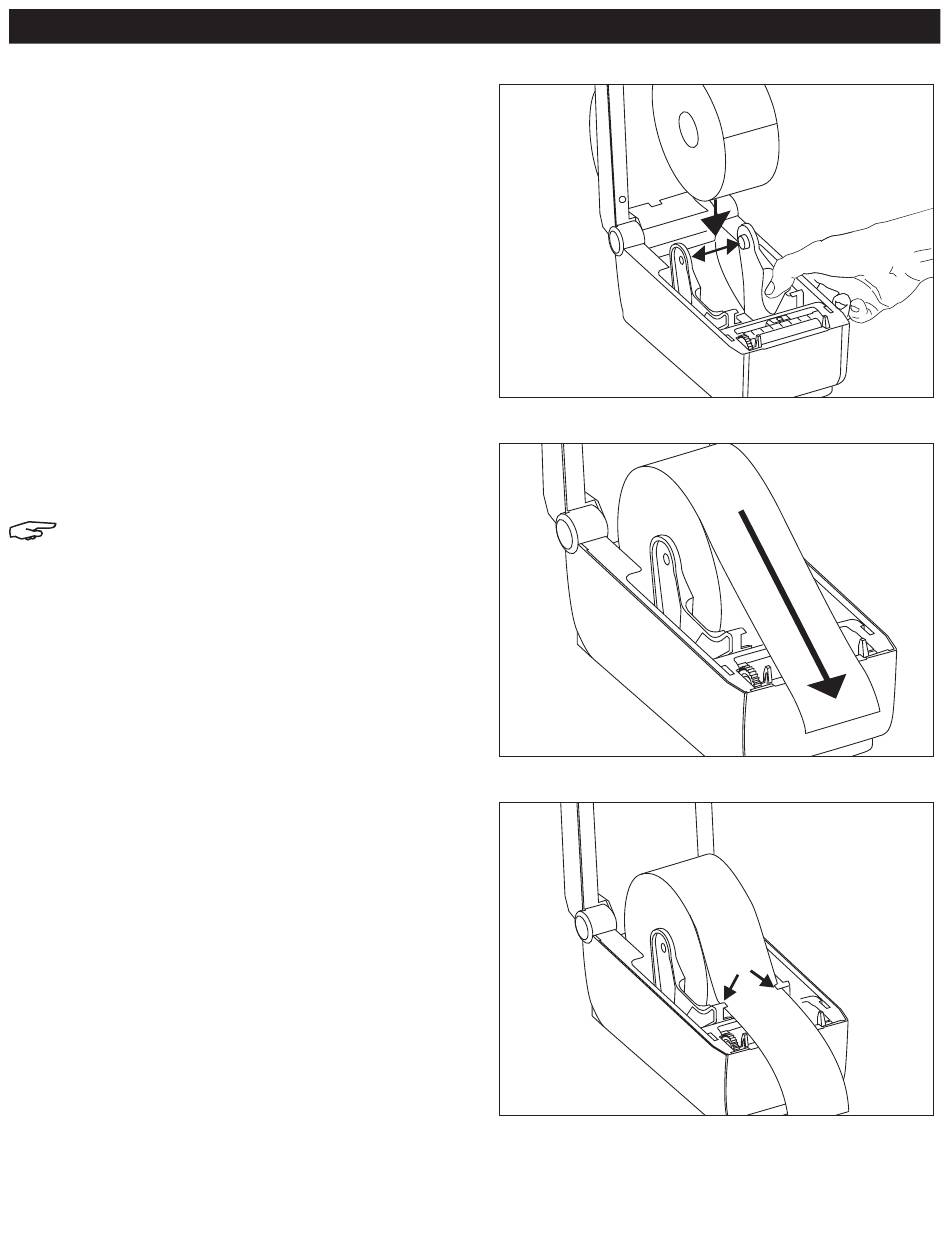

Figure 3
