π
H-8093
OHAUS SF40A
®
SCALE PRINTER
CONTROLS
CONTROL PANEL
SAFETY
The printer has been tested for the connections and
intended purposes documented in these operating
instructions. It is your responsibility to perform the
necessary tests related to the methods and purposes of
its intended use. Observe the following safety measures.
CAUTION! The printer must only be used indoors
and never in hazardous areas.
• The electronics of the printer are protected
against splashing water and dust. However,
since the printer housing is not watertight, it
should not be used in the presence of liquids.
PAGE 1 OF 33
1-800-295-5510
uline.com

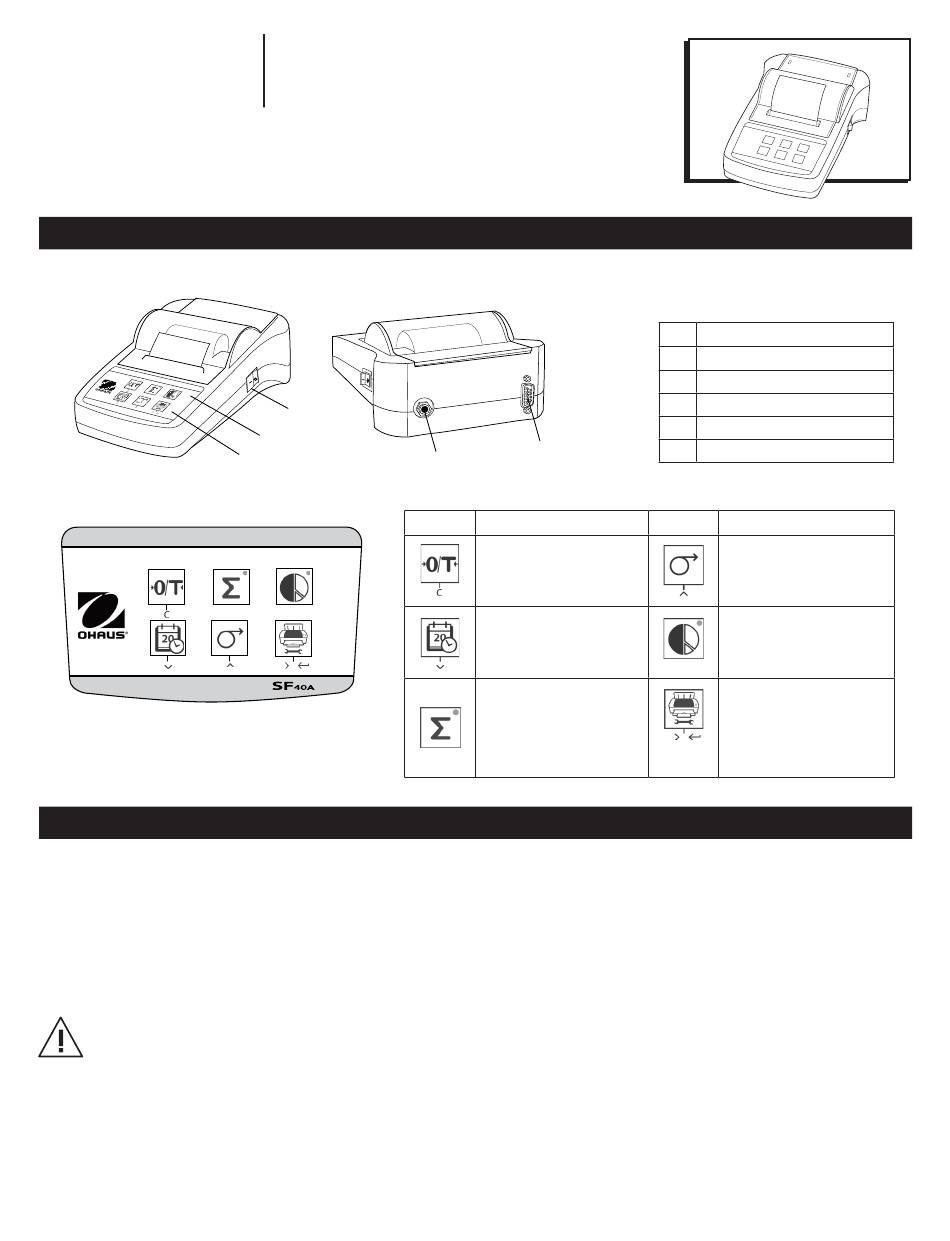

OVERVIEW OF CONTROLS
CONNECTIONS
1
2
3
CONTROL FUNCTIONS
5
4
KEY
DESCRIPTION
Zeroing/Taring the
balance
Abort – Exit
Printout of date and time
Scroll down menu option
Totalizing application
SETUP
• Follow cleaning instructions on page 8.
Protect power plug against wet conditions.
• Never open the printer housing. If you have
any problems with your printer, contact Uline
Customer Service at 1-800-295-5510.
• If the equipment is used in a manner not
specified by the manufacturer, the protection
provided by the equipment may be impaired.
POWER SUPPLY
The printer is supplied with an AC adapter with a country-
specific power cable. The power supply is suitable for all
line voltages in the range: 100 – 240V AC, 50 – 60 Hz.
(See Page 11 for Specifications)
Para Español, vea páginas 12-22.
Pour le français, consulter les pages 23-33.
CONTROLS AND CONNECTIONS
#
DESCRIPTION
1
On/Off Switch
2
Pilot Lamp – Status Indicator
3
Control Panel
4
Power Connection
5
Interface Connector
KEY
DESCRIPTION
Paper feed
Scroll up menu option
Statistics application
Printing of stable weight
values
Opening the menu –
select next menu option
Save settings
0819 IH-8093
