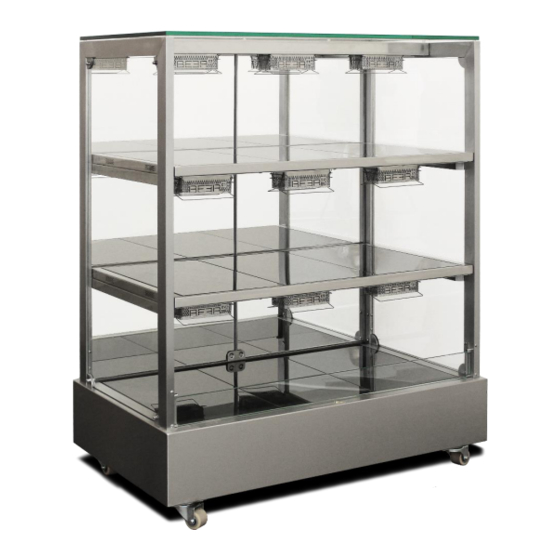

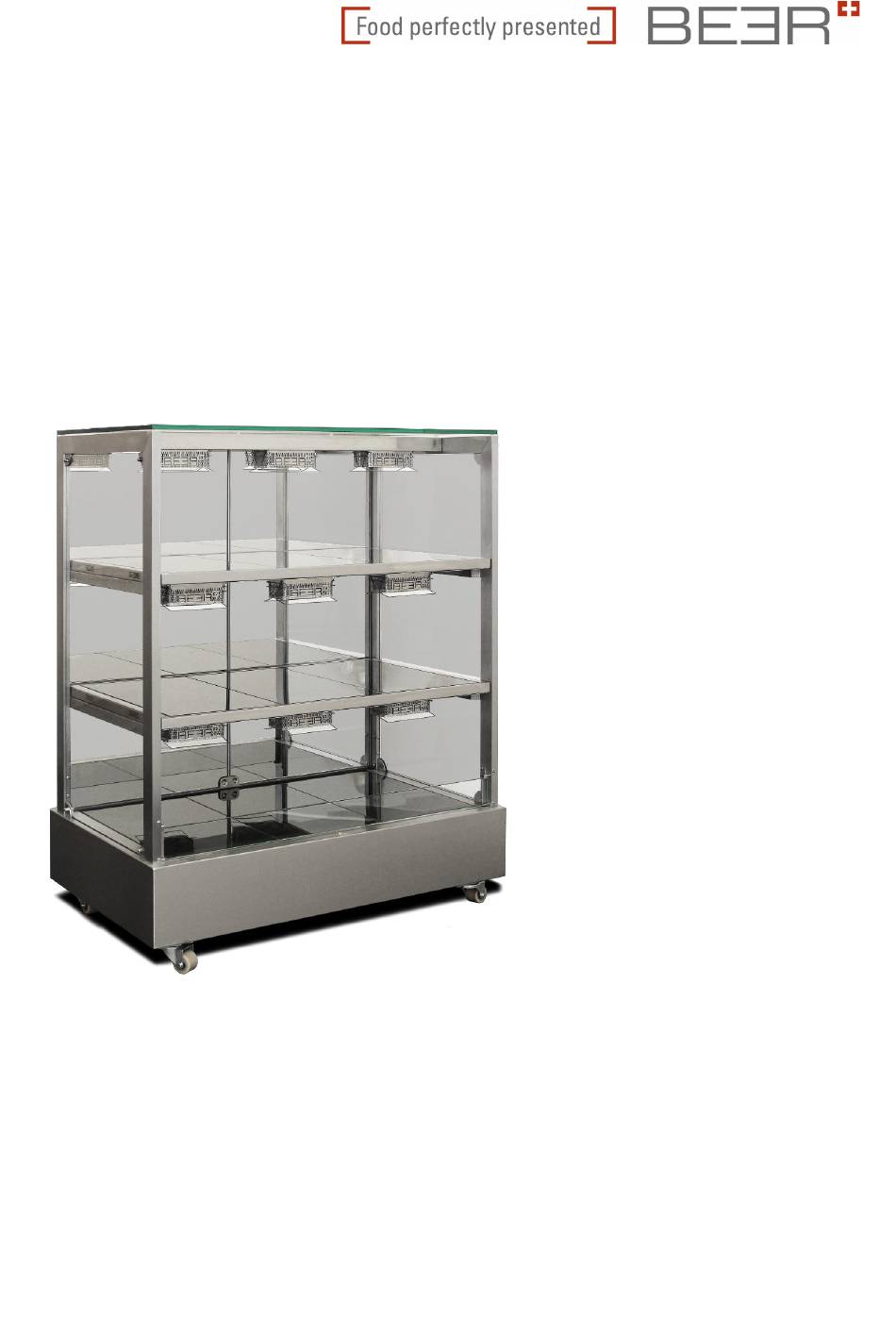

- Page 1 Beer Hot Tower Heated self-service showcase for convenience food in classy Beer design. Operating instructions Installation & Technical Data...
-
Page 2: Table Of Contents
CONTENTS Introduction .............................. 4 Welcome ............................4 Symbols used ..........................4 Technical data ............................5 Operating regulations and general information ................... 6 Operating regulations ........................6 General information ........................6 Security guidelines ........................6 Hazard warnings ............................7 Electrical energy ..........................7 General safety instructions ...................... - Page 3 We reserve the right to make technical changes Carefully read these installation and operating instructions before installing the appliance and putting it into service, and strictly follow the notices herein, thus contributing to keeping the appliance in a perfect and func- tioning state.
-
Page 4: Introduction
Introduction Welcome With the purchase of your new Beer Hot Tower you have chosen a product that combines the highest technical standards with practical service comfort. We recommend reading these operating and mainte- nance instructions carefully in order to become familiar with the product quickly. -
Page 5: Technical Data
This appliance may be used and operated by children aged at least 8 years and per- sons with reduced physical, sensory or mental abilities or lacking experience and / or knowledge, provided they are supervised or have been trained and instructed in the safe use of the appliance and understand the dangers possibly resulting from misuse. -
Page 6: Operating Regulations And General Information
Any changes or alterations of the appliance or the use of individual spare parts and especially parts essential for the functioning of the appliance that are not original Beer Grill parts as well as non-adher- ence to notes in the operating manual will cause the lapse of our warranty and the exclusion of liability claims. -
Page 7: Hazard Warnings
Hazard warnings Electrical energy Attention, switch off the appliance immediately in case of interruptions of power supply! Any work carried out on the electrical units or utilities may only be performed in accordance with electri- cal regulations by a qualified electrician or by a person instructed and supervised by a qualified electri- cian. -
Page 8: Behaviour In The Event Of Glass Breakage
Counter is again ready for operation. Glazing / Risk of accident The Beer glass structure of the sales counters is equipped with single-pane safety glass (ESG). Incorrect, badly mounted or damaged panels may fall out and cause serious injuries. Be sure to check before opening the counter, but also after cleaning the panels that: Are the side glasses or intermediate board glasses correctly inserted, i.e. -
Page 9: Warranty And Liability
Unauthorized repairs. Force majeure. Beer Grill AG grants a one-year guarantee on all parts of the Beer Hot Tower provided that the damage has not been caused by improper handling and the appliance has been operated in accordance with the operating and installation instructions. -
Page 10: Packing
Immediately check the delivery after receipt for completeness and transport damage. In case of exter- nally recognisable transport damage, do not accept the delivery or accept only with reservation. The extent of the damage must be noted on the transport documents / delivery note and a complaint started. File a complaint immediately for hidden damage, since compensation claims can only be asserted within the existing complaint period. -
Page 11: Set Up
Set up The following points must be observed when setting up the appliances: Solid substructure Make sure your warming units stand securely on a level surface. The appliance is not self-supporting, that means, they need a solid base for transport and installation with the dimensions corresponding to those of the units. -
Page 12: Connection
When connecting the unit, proceed as follows: Check if electrical data of mains correspond with those on the rating plate of the Beer Hot Tower. Connection to conform to IEC resp. CEI 335-1 and local regulations, i.e. fit the mains plug to the oil- resistant connecting cable that is heat-resistant up to 90°C, and connect to a mains socket. -
Page 13: Non-Intended Use
10.2 Non-intended use Warming units are not suitable for heating or even defrosting food. No foodstuffs having a lower temper- ature than indicated are to be filled into the tubs. Never fill too many or too cold goods into the display case. The manufacturer / supplier is not liable for any damages resulting from such actions. -
Page 14: Control
The appliance must be cleaned inside and outside daily according to the hy- giene regulations, because only this guarantees an optimal presentation of the goods. Attention, the Beer Hot Tower is an electrical appliance. Before cleaning disconnect the appliance of the mains (pull out plug / switch off main switch). -
Page 15: General Recommendations
Before cleaning, let the unit cool down to hand temperature. Use only a damp cloth with non-scoring cleaning agents. 11.1 General recommendations The appliance has to be cleaned daily. After cleaning with special cleaners you have to wash all parts with clear water and dry them so that there is no cleaner residue on these parts. -
Page 16: Maintenance
12.2 Behaviour in the event of malfunctions The appliance may no longer be used if components have failed or no longer function properly. In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. 12.3 Self-checking... -
Page 17: Guide To Install The Touch-Guard (Optional)
If the listed possibilities are not the cause of the malfunction, please contact the cus- tomer service. The Beer Grill company is not liable for any loss of goods, even if the appliance is still covered by warranty. It is therefore recommended that the temperature of the appliance be checked periodically. -
Page 18: Customer Service
The appliance may no longer be used if components have failed or no longer function properly. In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. Check the mains cable and fuses beforehand. -
Page 19: Appendix
14 Appendix Drawing 19Ma184-20 GN 2/1, mobile model Drawing 19Ma184-30 GN 3/1, mobile model Drawing 19Ma184-40 GN 4/1, mobile model Drawing 19Ea020-40 2. level GN 2/1 to GN 5/1, electrical diagram Drawing 19Ea030-40 3. level GN 2/1 to GN 5/1, electrical diagram Drawing 19Ea040-44 4. - Page 20 Massstab Format Blatt Fahrmodell Electrical connecting: 230 VAC, LN+PE, 2300 W Beer Grill AG Max. nominal current 10A CH - 5612 Villmergen 19Ma184-20E Tel.: +41 / (0) 56 618 78 00 Length of connect.cable ca. 3 m Fax: +41 / (0) 56 618 78 49 e-Mail: info@beergrill.com...
- Page 21 Massstab Format Blatt Fahrmodell Electrical connecting: 400 VAC, 3LN+PE, 3630 W Beer Grill AG Max. nominal current 5.3A CH - 5612 Villmergen 19Ma184-30E Tel.: +41 / (0) 56 618 78 00 Length of connect.cable ca. 3 m Fax: +41 / (0) 56 618 78 49 e-Mail: info@beergrill.com...
- Page 22 Massstab Format Blatt Fahrmodell Electrical connecting: 400 VAC, 3LN+PE, 4620 W Beer Grill AG Max. nominal current 6.8A CH - 5612 Villmergen 19Ma184-40E Tel.: +41 / (0) 56 618 78 00 Length of connect.cable ca. 3 m Fax: +41 / (0) 56 618 78 49 e-Mail: info@beergrill.com...
