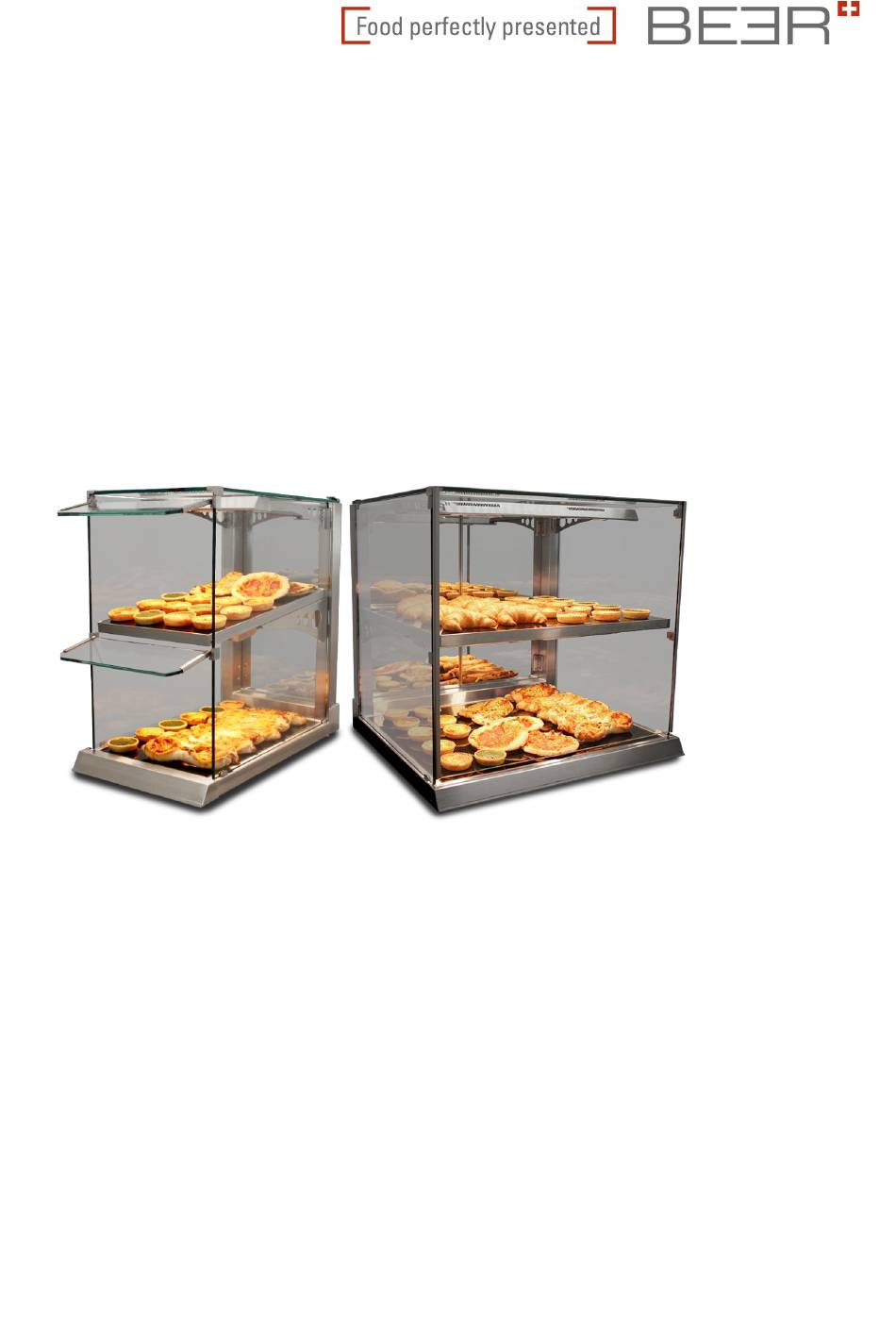

- Page 1 Beer Hot Cube Compact heated filigree design showcase for convenience food. Operating instructions Installation & Technical Specifications...
-
Page 2: Table Of Contents
DIRECTORY OF CONTENTS Introduction .............................. 4 Welcome ............................4 Symbols used ..........................4 Technical Data ............................5 Operating regulations and general information ................... 5 Operating regulations ........................5 General information ........................6 Hazard warnings ............................6 Electrical power ..........................6 General safety instructions ...................... - Page 3 We reserve the right to make technical changes Carefully read these installation and operating instructions before installing the appliance and putting it into service, and strictly follow the notices herein, thus contributing to keeping the appliance in a perfect and func- tioning state.
-
Page 4: Introduction
Introduction Welcome With the purchase of your new Beer Hot Cube you have chosen a product that combines the highest technical standards with practical service comfort. We recommend reading these operating and mainte- nance instructions carefully in order to become familiar with the product quickly. -
Page 5: Technical Data
Any changes or alterations of the appliance or the use of individual spare parts and especially parts essential for the functioning of the appliance that are not original Beer Grill parts as well as non-adher- ence to notes in the operating instructions will cause the lapse of our warranty and the exclusion of... -
Page 6: General Information
General information The appliance is designed for commercial use and may only be operated by trained and qualified personnel. The appliance must be checked and serviced regularly, at least once per year, by qualified per- sonnel. Suitable tools are recommended for operating the appliance. The operator of the appliance must be thoroughly instructed by the owner. -
Page 7: Behaviour With Broken Glass
Behaviour with broken glass Attention, glass splinters! The Beer Hot Cube is equipped with lamp bursting alarm (see operation manual). In case of lamp burst- ing glass shelves, sneeze screen, front and lateral glasses, proceed immediately as follows: Switch off and close counter. -
Page 8: Removing Side Glass Panels
Warranty and liability Basically, the «General Terms and Conditions» of the Beer Grill AG company, Allmendstrasse 7, CH-5612 Villmergen, apply in which the details of the guarantee claims are regulated. Claims under warranty and liability for personal injury and damage to property are impossible if they are due to one or more of the following reasons: Improper use of the unit. -
Page 9: Transport
Operating the unit with defective safety appliances or safety appliances which have not been in- stalled properly and are not in working condition. Disregard of the references in the operating instructions concerning transportation storage, installa- tion, start-up, operation, maintenance and assembling of the unit. Unauthorized mechanical or electrical changes to the unit. -
Page 10: Packing
Packing Before commissioning, completely remove the external and internal packaging material from the device. If you wish to dispose of the packaging, observe the regulations in force in your country. Recycle recyclable packaging materials. Please check that the device and its accessories are complete. If any part should be missing, please contact our customer service. -
Page 11: Connection
When connecting the unit, proceed as follows: Check if electrical data of mains correspond with those on the rating plate of the Beer Hot Cube. The type plate is located on the bottom right behind the water drainage channel [1]. A second type plate is located on the right inside the lower control unit. -
Page 12: Start-Up / Operating Instructions
10 Start-up / Operating instructions The simple manual control unit with toggle and rotary switch is described below. 10.1 Control panel / Keys 1 Rotary On / Off switch 2 Rotary switch for the heating plates on the 1st level 3 On / Off switch for IR lighting on the 1st level 4 Rotary switch for the heating plate on the 2nd level (Duplex only) 5 On / Off switch for IR lighting on the 3rd level... -
Page 13: Settings On The Levels
The appliance must be cleaned inside and outside daily according to the hy- giene regulations, because only this guarantees an optimal presentation of the goods. Attention, the Beer Hot Cube is an electrical appliance. Before cleaning disconnect the appliance of the mains (pull out plug/switch off main switch). -
Page 14: Cleaning Agents
11.2 Cleaning agents Glass cleaner The surface of the display is made of glass. Use a standard, non-abrasive, mild glass cleaner for cleaning. Do not spray the detergent directly on the display. Stainless steel cleaner The stainless steel surfaces should be only cleaned with a stainless steel cleaner. Lighting The lamps are to be cleaned only with soft paper or cloth. -
Page 15: Cleaning The Glasses
12.1 Behaviour in the event of malfunctions The appliance may no longer be used if components have failed or no longer function properly. In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. -
Page 16: Lighting And Heaters
12.2 Lighting and heaters The following lamps are used: Lighting channel on the 1st level 150 Watt Lighting channel on the 2nd level 150 Watt Lighting channel on the 3rd level 150 Watt Attention, Observe the correct wattage specifications for the IR radiators. Lighting channel for150 W shelf display. -
Page 17: Self-Checking
12.4 Self-checking If the warming device does not work at all (operating light is dark), please check the following points before contacting the customer service: Is the power supply interrupted? Has a fuse blown (check auxiliary appliances)? Is the plug correctly inserted in the socket? Has the On switch been turned on? Have the electronics been set incorrectly? If the warming device is working, but incorrect (the products are too lukewarm or too hot), please check... -
Page 18: Customer Service
The appliance may no longer be used if components have failed or no longer function properly. In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. Check the mains cable and fuses beforehand. - Page 19 Electrical connecting: Hot Cube - Table top model 230VAC, LNPE, 490W 1 : 10 Max. nominal current 2.2A Beer Grill AG CH - 5612 Villmergen Length of connect.cable ca. 2 m 23Ma050-11 Tel.: +41 / (0) 56 618 78 00...
- Page 20 Electrical connecting: Hot Cube - Table top model 230VAC, LNPE, 870W 1 : 10 Max. nominal current 3.8A Beer Grill AG Length of connect.cable ca. 2 m CH - 5612 Villmergen 23Ma050-21 Tel.: +41 / (0) 56 618 78 00...
- Page 21 Electrical connecting: Hot Cube - Table top model 230VAC, LNPE, 980W 1 : 10 Max. nominal current 4.3A Beer Grill AG Length of connect.cable ca. 2 m CH - 5612 Villmergen 23Ma050-12 Tel.: +41 / (0) 56 618 78 00...
- Page 22 Electrical connecting: Hot Cube - Table top model 230VAC, LNPE, 1740W 1 : 10 Max. nominal current 7.6A Beer Grill AG Length of connect.cable ca. 2 m CH - 5612 Villmergen 23Ma050-22 Tel.: +41 / (0) 56 618 78 00...
- Page 23 Electrical connecting: Hot Cube - Table top model 230VAC, LNPE, 1470W 1 : 10 Max. nominal current 6.4A Beer Grill AG Length of connect.cable ca. 2 m CH - 5612 Villmergen 23Ma050-13 Tel.: +41 / (0) 56 618 78 00...
- Page 24 Hot Cube - Table top model 1 : 10 230 / 400VAC, LNPE / 2LNPE, 2610W Max. nominal current 11.4 / 7.5A Beer Grill AG CH - 5612 Villmergen 23Ma050-23 Length of connect.cable ca. 2 m Tel.: +41 / (0) 56 618 78 00...
- Page 25 Electrical connecting: Hot Cube - Table top model 230VAC, LNPE, 490W 1 : 8 Max. nominal current 2.2A Beer Grill AG Length of connect.cable ca. 2 m CH - 5612 Villmergen 23Ma071-11B Tel.: +41 / (0) 56 618 78 00...
