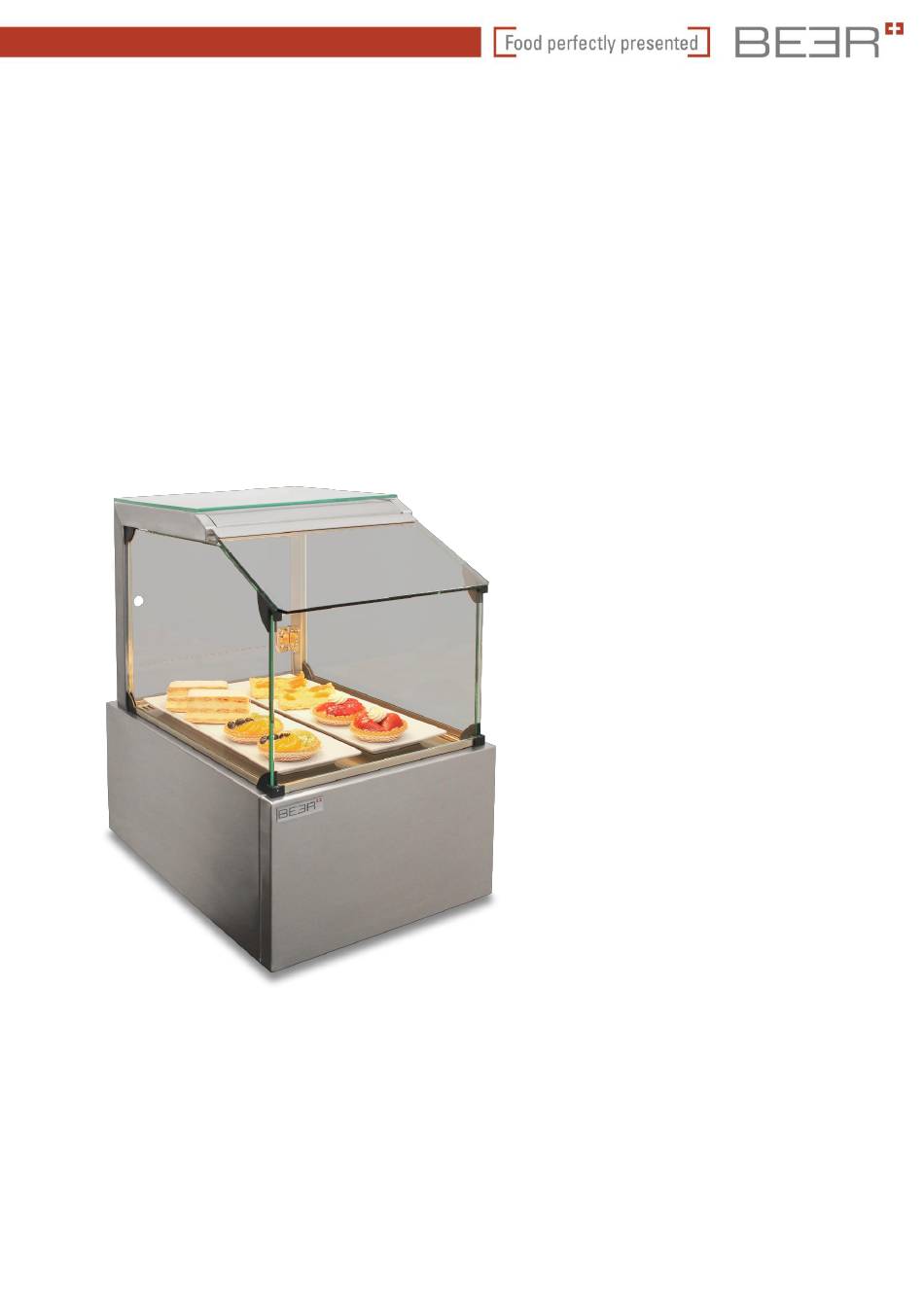

  • Page 1 Uno Top Cold The world's most compact refrigerated showcase system Operation Manual Installation & Technical Specifications...
  • Page 2: Table Of Contents

    Procedure by lamp bursting and breakage of glass ........... 8 Glazing/Danger of accident ..................8 Warranty and liabilities ......................9 Transport of Uno Top Cold ....................10 Packaging of Uno Top Cold ....................10 Installation of Uno Top Cold ....................11 Setting up and moving the device ................
  • Page 3 Warranty claims can only be forwarded if all instructions are strictly followed. Version Datum Mutation 1.00 21.05.2019 create Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com CH –...
  • Page 4: Introduction

    Introduction Welcome With the purchase of your new Uno Top Cold you have chosen a product that combines the highest technical standards with practical service comfort. We recommend reading these operating and maintenance instructions carefully in order to become familiar with the prod- uct quickly.
  • Page 5: Technical Data

    Any changes or alterations of the appliance or the use of individual spare parts and especially parts essential for the functioning of the appliance that are not original Beer Grill parts as well as non-adherence to notes in the operating manual will cause the lapse of our warranty and the exclusion of liability claims.
  • Page 6: General Information

    Directive 93/43/EWG: Hygiene rule • Directive 89/336 and 73/23/EWG: Low voltage directive • Directive 2006/42 general machinery guidelines Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com...
  • Page 7: Safety References

    The manufacturer accepts no liability for damage or injury to persons caused by not ob- serving the instructions and precautionary measures contained in this handbook. In case of doubt, please contact the DEALER. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel.
  • Page 8: Procedure By Lamp Bursting And Breakage Of Glass

    Counter is ready for reopening. Glazing/Danger of accident Beer counters are equipped with one sheet safety glass (ESG). Incorrectly, badly mounted or damaged panels may fall out and cause serious injuries. Be sure to check all glazing before opening the self-service counter, but also after cleaning the glass (especially the front- glass) that: •...
  • Page 9: Warranty And Liabilities

    Damaged glass panels must be replaced immediately, glass holders refitted by qualified personnel. In a pinch, continue working without the glass panels until the required spare parts arrive. Beer Grill take no responsibility for damage to glass panels due to improper handling during removal or replacement. Warranty and liabilities Basically, the "General Terms and Conditions"...
  • Page 10: Transport Of Uno Top Cold

    Transport of Uno Top Cold Use special caution when transporting or moving the appliance in order to avoid damage from impact, carless loading and unloading or shock. Immediately check the delivery after receipt for completeness and transport damage. In case of externally recognisable transport damage, do not accept the delivery or accept only with reservation.
  • Page 11: Installation Of Uno Top Cold

    Installation of Uno Top Cold Setting up and moving the device • Solid substructure The devices are not self-supporting, that means, tabletop and built-in models need a solid base for transport and installation with the dimensions corresponding to those of the devices.
  • Page 12: Preparation At The Installation Site

    Do not directly point spotlights to the Uno Top Cold. Exposing Uno Top Cold equipment to heat reduces its cooling power and in- creases operating costs.
  • Page 13: Connecting Uno Top Cold

    If food at room temperature is introduced into Uno Top Cold, you may not expect that these products will be cooled to core temperatures below +10 °C. Thus we kindly request you to put only cold or pre-cooled food with a maximum temperature of +5 °C into the counter.
  • Page 14 The parameters are documented in detail in the operating manual. The following principles apply: • As an optimum, the products in Uno Top Cold can maintain the temperatures at which they were put into the counter. Repeatedly, we have checked and recorded temperatures in graphic images. These reveal: •...
  • Page 15: Switching On The Unit

    1 Digital controls 2 Mains switch 3 On/Off for the lighting channel 4 Air intake fan (must not be obstructed) Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com...
  • Page 16: Setting The Temperature

    Fan running Defrosting (energy saving) Compressor running Alarm active Unit (°C or °F) (blinks in quick cooling mode) Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com CH –...
  • Page 17: Quick Configuration When Switching On

    Low temperature (-26 to -20 °C ) – deaerated cooling systems with electric defrosting App 5 (via temperature) none (no app selected), with simplified parameter list App 6 Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel.
  • Page 18: Menu Structures

    Application Sensor type Application 6-5-4-3-2-1 Search parameter names Search parameter groups Quick configuration by the "cFg" menu Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com CH –...
  • Page 19: Basic Operation 1

    - If the control panel is locked, "LoC" will be shown on the display when any key is pressed. - Press UP and DOWN keys simultaneously for three seconds to unlock the control panel. "unl" will then be displayed for 3 seconds. Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a...
  • Page 20: Cleaning

    The unit can be switched off during the night and outside of opening hours. Caution The Uno Top Cold is an electrical appliance. Disconnect the device of the mains (pull out plug/switch off main switch). 11.1 General recommendations •...
  • Page 21 In the heating-zone a heat accumulation will be created. This can cause damage to the ceran-glass, the silicone joint and later to the heating element! Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel.
  • Page 22: Maintenance

    Figure 1 Pull the sneeze screen forward Fit the front glass panel and turn it to the inside Push sneeze screen back into place Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel.
  • Page 23: In Case Of Malfunctions

    If the front glass is resting on the upper edge of the glass holder on one side (see figure 5), it can easily fall out and cause severe injuries if touched! Beer Grill AG decline any liability for damages resulting from wrongly fitted or damaged glass panels and glass holders.
  • Page 24: Disposal

    The appliance may no longer be used if components have failed or no longer function properly. In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. We are not liable for loss of goods, even if the appliance is still covered by warranty.
  • Page 25: After Sales Service

    The appliance may no longer be used if components have failed or no longer function properly. In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. When contacting after sales service always indicate serial number and type of the Uno Top Cold.
  • Page 26: Appendix

    15 Appendix Drawing No. 63Ma081-00 Technical data sheet Drawing No. 63Ea081-00 Electrical diagram Beer Grill AG Beer Grill GmbH Allmendstrasse 7 Tel. +41 (0)56 618 7800 Körnerstrasse 14 a Tel. +49 (0)71 61 659 876 info@beergrill.com CH – 5612 Villmergen D –...
  • Page 27 Elektrischer Anschluss Donn es lectriques Electrical connecting 230 VAC, LN+PE, 290 W 230 VAC, LN+PE, 290 W 230 VAC, LN+PE, 290 W UNO Top Cold, GN 1/1-100 Gezeich. M.B sch 06.10.2017 Max. Nennstrom 1.3A Courant nominal max. 1.3A Max. nominal current 1.3A Ausf hrung gerade Kabell nge ca.
