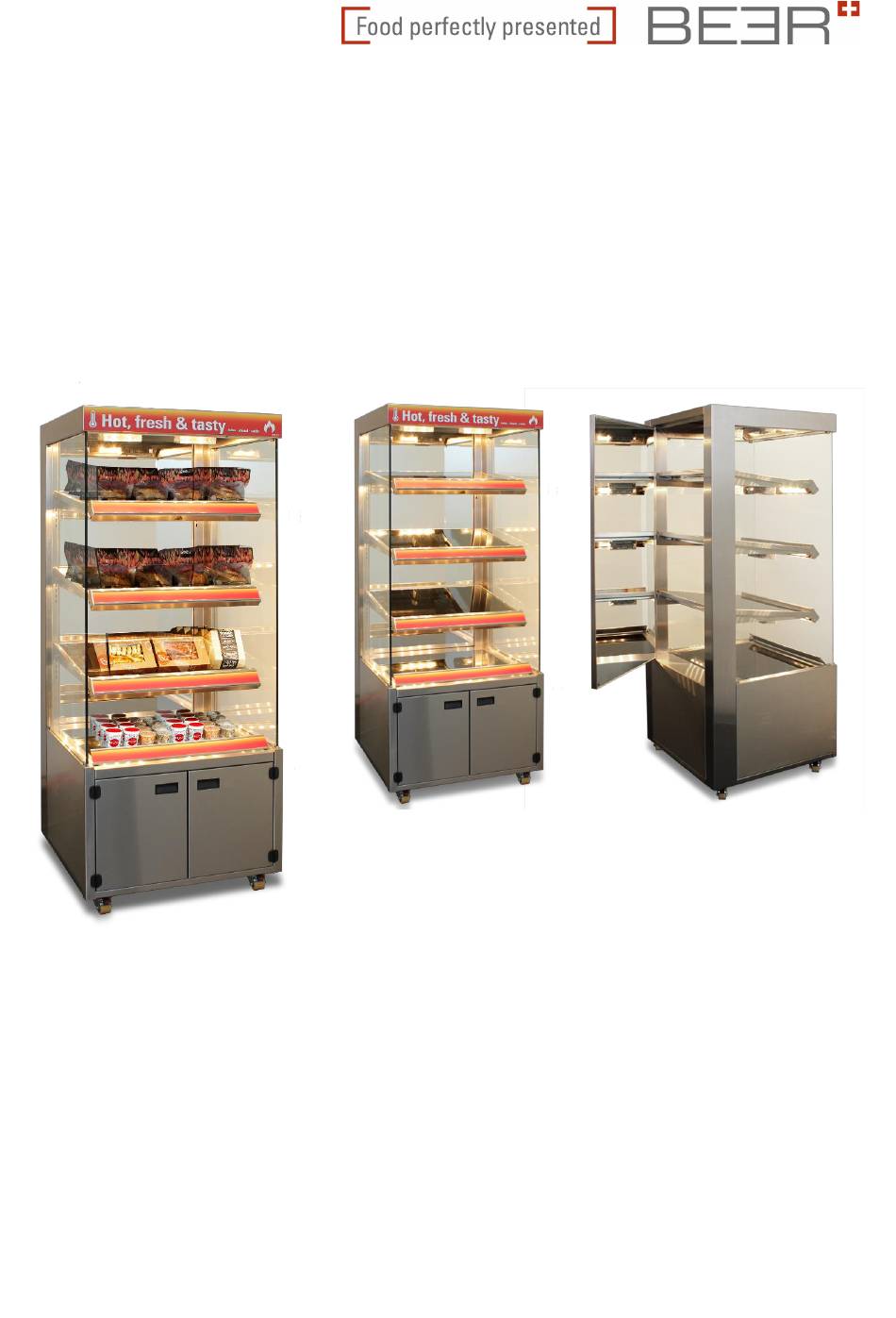

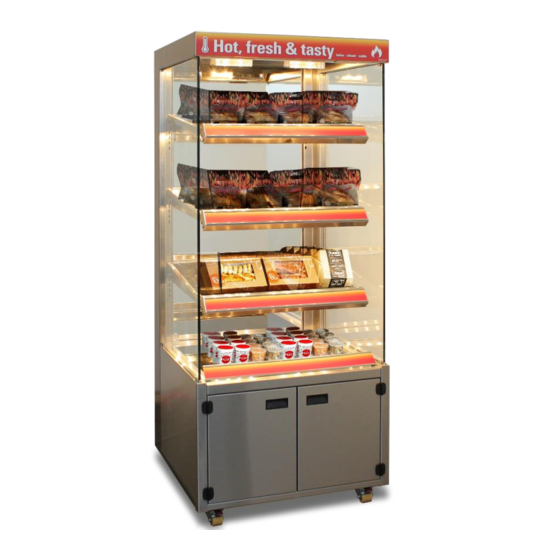

- Page 1 Beer Hot Rack Beheizte Selbstbedienungs-Vitrine für Convenience Food. Operating instructions Installation & Technical Data...
-
Page 2: Table Of Contents
CONTENTS Introduction .............................. 4 Welcome ............................4 Symbols used ..........................4 Technical data ............................5 Operating regulations and general information ................... 6 Operating regulations ........................6 General information ........................6 Security guidelines ........................6 Hazard warnings ............................7 Electrical energy ..........................7 General safety instructions ...................... - Page 3 Technische Änderungen vorbehalten Carefully read these installation and operating instructions before installing the appliance and putting it into service, and strictly follow the notices herein, thus contributing to keeping the appliance in a perfect and func- tioning state. Due to ongoing development, illustrations, operating steps and technical data may slightly differ from the supplied equipment.
-
Page 4: Introduction
Introduction Welcome With the purchase of your new Beer Hot Rack you have chosen a product that combines the highest technical standards with practical service comfort. We recommend reading these operating and mainte- nance instructions carefully in order to become familiar with the product quickly. -
Page 5: Technical Data
Active Cable Models Power surface surface length W x D x H (mm) Width GN 2/1 4 levels* 800 x 770 x 1980 1.5 m 3580 W approx. 2 m Width GN 3/1 4 levels* 1125 x 770 x 1980 2.3 m... -
Page 6: Operating Regulations And General Information
Any changes or alterations of the appliance or the use of individual spare parts and especially parts essential for the functioning of the appliance that are not original Beer Grill parts as well as non-adher- ence to notes in the operating manual will cause the lapse of our warranty and the exclusion of liability claims. -
Page 7: Hazard Warnings
Hazard warnings Electrical energy Attention, switch off the appliance immediately in case of interruptions of power supply! Any work carried out on the electrical units or utilities may only be performed in accordance with electri- cal regulations by a qualified electrician or by a person instructed and supervised by a qualified electri- cian. -
Page 8: Behaviour In The Event Of Glass Breakage
Counter is again ready for operation. Glazing / Risk of accident The Beer glass structure of the sales counters is equipped with single-pane safety glass (ESG). Incorrect, badly mounted or damaged panels may fall out and cause serious injuries. Be sure to check before opening the counter, but also after cleaning the panels that: Are the side glasses or intermediate board glasses correctly inserted, i.e. -
Page 9: Warranty And Liability
Unauthorized repairs. Force majeure. Beer Grill AG grants a one-year guarantee on all parts of the Beer Hot Rack provided that the damage has not been caused by improper handling and the appliance has been operated in accordance with the operating and installation instructions. -
Page 10: Packing
Immediately check the delivery after receipt for completeness and transport damage. In case of exter- nally recognisable transport damage, do not accept the delivery or accept only with reservation. The extent of the damage must be noted on the transport documents / delivery note and a complaint started. File a complaint immediately for hidden damage, since compensation claims can only be asserted within the existing complaint period. -
Page 11: Set Up
Set up The following points must be observed when setting up the appliances: Solid substructure Make sure your warming units stand securely on a level surface. Make sure that the casters of mobile units are blocked during operation. Ambient temperature The appliances are equipped with electronic components that are ventilated. -
Page 12: Connection
When connecting the unit, proceed as follows: Check if electrical data of mains correspond with those on the rating plate of the Beer Hot Rack. Connection to conform to IEC resp. CEI 335-1 and local regulations, i.e. fit the mains plug to the oil- resistant connecting cable that is heat-resistant up to 90°C, and connect to a mains socket. -
Page 13: Main Switch
The manufacturer / supplier is not liable for any damages resulting from such actions. The user bears the entire risk. Use in accordance with the regulations includes observance of the mounting and op- erating instructions and keeping with the inspection and maintenance regulations. Any changes to the appliance is to be made solely by the manufacturer! Main switch 10.3... -
Page 14: Inserting And Adjusting Shelves
1 = Toggle switch for LED lighting (optional) 2 = Toggle switch for changing the colour temperature of the LED lighting between 2700 K or 4000 K 3 = Revolving Switch for the warm shelf with 0 to 12 scale 4 = ON / OFF toggle switch for the IR radiator The revolving switch «position 3»... -
Page 15: Fitting The Price Label Holder
10.6 Fitting the price label holder Price label holder clicked on. Lift price label holder up. Lift protective foil and pull it slightly out. Keep the protective foil lifted with your finger so as not to scratch its interior side, then pull it out all the way. Replace the newly lettered price label holder by Push the tab down into the slot. -
Page 16: Cleaning
The appliance must be cleaned inside and outside daily according to the hy- giene regulations, because only this guarantees an optimal presentation of the goods. Attention, the Beer Hot Rack is an electrical appliance. Before cleaning disconnect the appliance of the mains (pull out plug / switch off main switch). -
Page 17: Maintenance
12.2 Behaviour in the event of malfunctions The appliance may no longer be used if components have failed or no longer function properly. In this case, the appliance must be repaired by a qualified technician or by the Beer Grill customer service. 12.3 Self-checking... -
Page 18: Customer Service
If the listed possibilities are not the cause of the malfunction, please contact the cus- tomer service. The Beer Grill company is not liable for any loss of goods, even if the appliance is still covered by warranty. It is therefore recommended that the temperature of the appliance be checked periodically. -
Page 19: Appendix
14 Appendix Drawing 19Ma179-00 Transport regulations Drawing 19Ma176-00 Standard model Drawing 19Ea100-00 Electrical diagram with LED Drawing 19Ea101-00 Electrical diagram without LED... - Page 20 Transportvorschriften Gepr ft Hot Rack, Standmodell Massstab Format Blatt Beer Grill AG CH - 5612 Villmergen 19Ma179-00 Tel.: +41 / (0) 56 618 78 00 Fax: +41 / (0) 56 618 78 49 e-Mail: info@beergrill.com Aenderungen vorbehalten / Sous r serve de modifications / Subject to change without notice...
- Page 21 14.04.2015 Hot Rack - Standmodell, 4 Etagen Gepr ft Massstab Format Blatt bersichtzeichnung, Standart Modell Beer Grill AG Kabelausgang Kabelausgang CH - 5612 Villmergen 19Ma176-00B Sortie du c ble Sortie du c ble Tel.: +41 / (0) 56 618 78 00...
