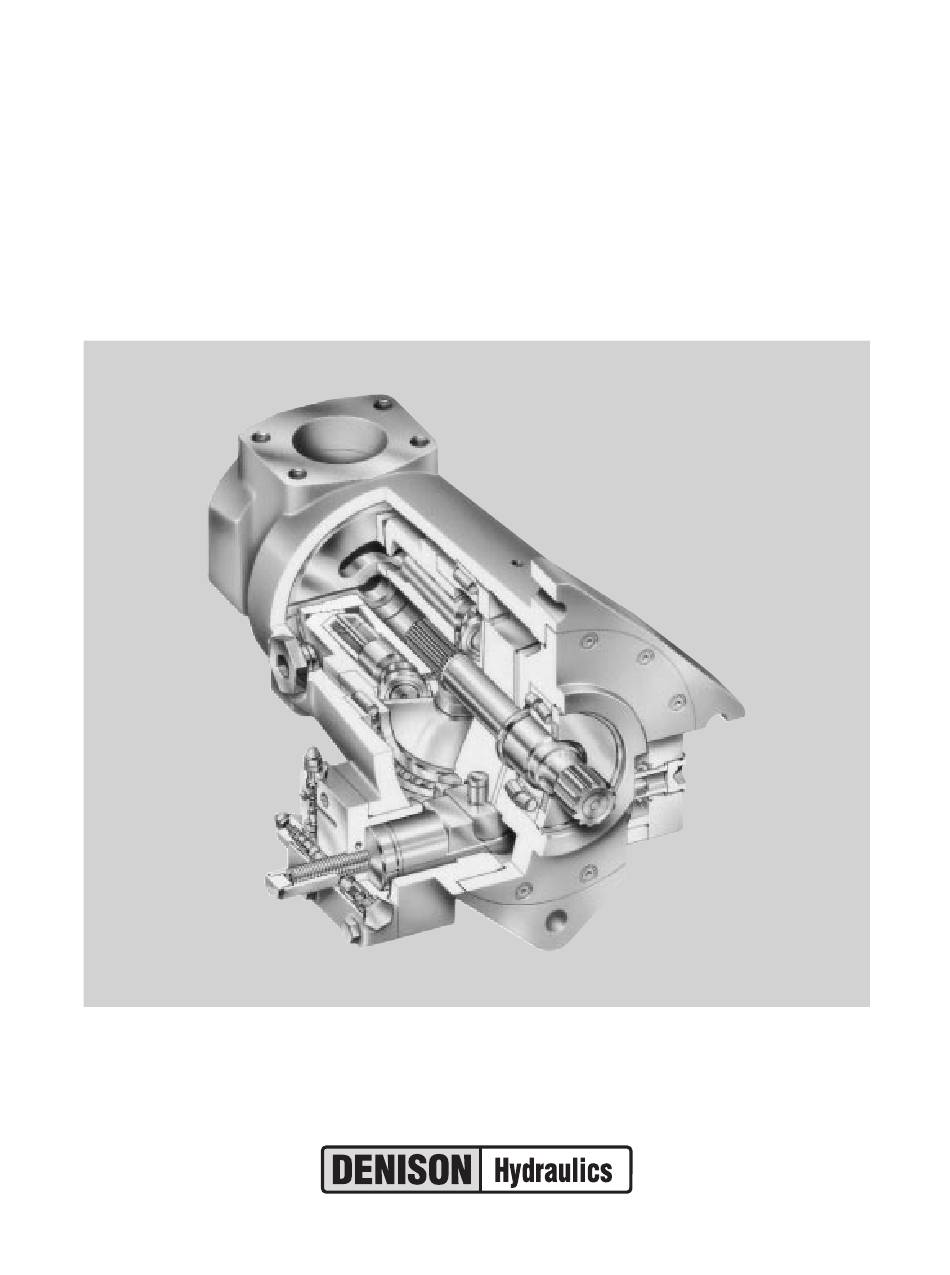

DENISON HYDRAULICS
open loop pump controls
series P140 A-mod, P260 B-mod
service information
Publ. S1-AM024-A replaces S1-AM024 01-97
www.comoso.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denison Hydraulics Premier Series

Summary of Contents for Denison Hydraulics Premier Series

  • Page 1 DENISON HYDRAULICS open loop pump controls series P140 A-mod, P260 B-mod service information Publ. S1-AM024-A replaces S1-AM024 01-97 www.comoso.com...

  • Page 2: Table Of Contents

    CONTENTS PAGE typical characteristics------------------------------------------------------------------------------- fluid connections------------------------------------------------------------------------------------- introduction------------------------------------------------------------------------------------------ general--------------------------------------------------------------------------------------------- description----------------------------------------------------------------------------------------- pressure compensator---------------------------------------------------------------------------- remote compensator control--------------------------------------------------------------------- load sensing control------------------------------------------------------------------------------ torque limiter-------------------------------------------------------------------------------------- rotary servo control------------------------------------------------------------------------------- hydraulic stroker---------------------------------------------------------------------------------- electric stroker------------------------------------------------------------------------------------- pressure compensator override and torque limiter override-------------------------------- troubleshooting chart------------------------------------------------------------------------------- pressure compensator parts list------------------------------------------------------------------- figure 1 & parts list, maximum volume stop--------------------------------------------------- figure 2 &...

  • Page 3: Typical Characteristics

    CHARACTERISTICS TYPICAL CHARACTERISTICS Specification Term P260 • compensator response off-stroke sec. 0,100 on-stroke sec. 0,150 • compensator adjustment bar/turn • minimum compensating pressure (comp, torque limiter) 17,2 • minimum compensator override pressure (servo, electric 93,1 & hyd. str.) • torque limiter adjustment range code J 282 - 706 code K...

  • Page 4: Introduction

    INTRODUCTION GENERAL The instructions contained in this manual cover complete disassembly and reassembly of the controls. Before proceeding with the disassembly or reassembly of any unit, this manual should be studied in order to become familiar with proper order and parts nomenclature.

  • Page 5: Electric Stroker

    INTRODUCTION stroke in proportion to control pressure. Full stroke is achieved at 19 bar. ELECTRIC STROKER By mounting an electrically modulated pressure control valve on the hydraulic stroker to establish the control pressure, pump stroke is controlled by an electrical signal. At 150 to 200 mA electrical signal, the pump commences to stroke, and at approximately 390 mA, the pump will be at full stroke.

  • Page 6: Pressure Compensator Parts List

    PRESSURE COMPENSATOR CCW ROTATION CW ROTATION PRESSURE COMPENSATOR ITEMS NOT SHOWN PRESSURE COMPENSATOR ITEM DESCRIPTION PART NO. QTY. C10 QTY. C20 Max. Vol. Stop (Fig. 1) S22-12983 — parts list Max Vol. Handwheel (Fig. 2) S22-12915 — Compensator Control (Fig. 3) S22-15312 Buck Up Cap (Fig.
  • Page 7 PRESSURE COMPENSATOR PARTS LIST FOR FIGURE 1, MAX. VOL. STOP S22-12983 ITEM DESCRIPTION PART NO. QTY. Plug 10HP5N-S 488-35055 O-Ring, 90 S-1 ARP 910 691-00910 Nut, 3/4 -10UNC Hex 031-91049 Screw, Soc. Set 3/4 10 x 3 311-26320 O-Ring,70 S -1 ARP 118 671- 00118 FIGURE 1 MAXIMUM VOLUME STOP...

  • Page 8: Compensator Disassembly, Assembly, Test

    PRESSURE COMPENSATOR COMPENSATOR DISASSEMBLY 1. See Figure 3. Back off max. volume screw or handwheel to full displacement. Remove max. volume screw or handwheel assembly. 2. Remove bolts holding cap to pump. 3. Remove plug (15) and attached parts. Remove spring (11) and spool (18). 4.
  • Page 9 PRESSURE COMPENSATOR FIGURE 3 COMPENSATOR PARTS LIST FOR FIGURE 3 ITEM DESCRIPTION PART NO. QTY. Cap-Sleeve Assembly S22-12881 compensator S22-15312 Adj. Plug 032-91814 Soc. Setscrew 5/16-24 x 1 312-13160 Nut, 5/16-24 335-13100 Seal Piston 031-59367 O-Ring, 90 S-1 ARP 012 691-00012 Spring 032-91798...

  • Page 10: Buck-Up Cap Disassembly, Assembly

    PRESSURE COMPENSATOR TORQUE 190 Nm FIGURE 4 BUCK-UP CAP BUCK-UP CAP DISASSEMBLY 1. See Figure 4 Set maximum volume stop to full stroke. Remove 4 screws holding cap to pump. Caution! Spring load could cause injury! 2. Remove cap assembly from pump. 3.

  • Page 11: Electric Stroker Parts List

    ELECTRIC STROKER 3 5 6 3 5 6 3 5 6 NOT SHOWN CCW ROTATION 3 5 6 3 5 6 3 5 6 8 NOT SHOWN E1J – E1K CW ROTATION P140 P260 QUANTITY ELECTRIC STROKER ITEM DESCRIPTION PART NO. PART NO.

  • Page 12: Electric Stroker Disassembly, Assembly, Test

    ELECTRIC STROKER ELECTRIC STROKER 1. See Figure 5. Remove 3 screws (37) holding block (36) to body (16). DISASSEMBLY 2. Remove 2 screws holding body (16) to cap assembly (1). 3. Remove all parts from body (16) except pin (30) and arm assembly (28). It is not necessary to remove these parts unless broken or worn.
  • Page 13 ELECTRIC STROKER 5. Adjust amperage (150 to 200 mA) to give 34,5 bar reading on the proportional valve gage port. Back out zero screw (24) and adjust screw (9) until output flow is at zero stroke position. Lock both adjustments in place. 6.

  • Page 14: Parts Lists For Figure 5 And Figure

    ELECTRIC STROKER PARTS LIST FOR FIGURE 5 ITEM DESCRIPTION PART NO. QTY. Cap (Figure 6) S22-15268 electric stroker S22-15306 Screw 032-91461 O-Ring, 70 S -1 ARP 010 671-00010 Clevis pin 321-40000 Spring, Compression 032-92100 Plug, Avseal 447-00026 Nut, 5/16-24 335-13100 Soc.

  • Page 15: Control Cap Disassembly, Assembly

    ELECTRIC STROKER CONTROL CAP DISASSEMBLY 1. See Figure 7. Remove cover (5) and Max. volume screw (4). 2. Remove 4 screws holding cap to pump. 3. Remove cap assembly from pump. ASSEMBLY 1. Install O-rings on interface between cap and pump control pad. Install cap on pump housing as indicated on the applicable view, guiding the control piston into the bore.

  • Page 16: Torque Limiter Override Disassembly & Assembly

    ELECTRIC STROKER TORQUE LIMITER OVERRIDE 1. See figure 8. Remove 2 screws holding torque limiter body (16) to cap assembly DISASSEMBLY (1). 2. Remove all parts from torque limiter body (16) except pin (30) and arm assembly (28). It is not necessary to remove these parts unless broken or worn. Examine parts for wear or damage.

  • Page 17: Figure 8

    ELECTRIC STROKER HIGH FLOW PRESSURE ADJUST. ® LOCTITE TORQUE 6,78 N m TORQUE 68 Nm NOT SHOWN (LOCTITE ® 271) HIGH PRESSURE FIGURE 8 FLOW TORQUE LIMITER OVERRIDE ADJUST. ITEM DESCRIPTION PART NO. QTY. **J QTY. **K PARTS LIST FOR FIGURE 8 Cap (Figure 9) S22-15275 torque limiter override...

  • Page 18: Plug 449-00599

    SYSTEM PRESS. TORQUE SAE-10 60 Nm TORQUE 30 Nm VENT CONN. TORQUE COMPENSATOR 35 Nm ADJUSTMENT DIFFERENTIAL ADJUSTMENT FIGURE 9 TORQUE LIMITER OVERRIDE CAP PARTS LIST FOR FIGURE 9, ITEM DESCRIPTION PART NO. QTY. torque limiter override cap S22-15275 Cap-Sleeve Assembly S22-15280 Adj.

  • Page 19: Torque Limiter Override Test And Adjustment

    TORQUE LIMITER OVERRIDE 1. Install gages on system pressure and on compensator vent ports. TEST AND ADJUSTMENT 2. Turn compensator adjustment screw out to remove spring load, then 1/2 turn in. 3. Turn differential adjustment screw out to remove spring load, then 1/2 turn in. 4.

  • Page 20: Compensator Override Disassembly, Assembly, Test

    ELECTRIC STROKER COMPENSATOR OVERRIDE 1. See Figure 10. Remove tube line to cap. DISASSEMBLY 2. Remove maximum volume stop assembly (items 12, 13, 19, 20, 24). 3. Remove cap assembly. 4. Remove plug (15) and attached parts. Remove spring (11) and spool (18). 5.

  • Page 21: Ring, 70 S-1 Arp 118 671-00118

    ELECTRIC STROKER SYSTEM TORQUE PRESS. 60 Nm 1/2 BSPP TORQUE 35 Nm VENT CONN. TORQUE 35 Nm 3/8 BSPP FIGURE 10 COMPENSATOR OVERRIDE CONTROL PARTS LIST FOR FIGURE 10 ITEM DESCRIPTION PART NO. QTY. compensator override control Cap-Sleeve Assembly S22-15259 S22-15273 Adj.

  • Page 22: Hydraulic Stroker Parts List

    HYDRAULIC STROKER 3 5 6 3 5 6 3 5 6 8 NOT SHOWN CCW ROTATION 3 5 6 3 5 6 3 5 6 10 11 12 13 NOT SHOWN 8 NOT SHOWN H1J – H1K CW ROTATION HYDRAULIC STROKER P140 P260 QUANTITY...

  • Page 23: Hydraulic Stroker Disassembly, Assembly, Test

    HYDRAULIC STROKER HYDRAULIC STROKER 1. See figure 11. Remove 2 screws holding body (16) to cap assembly (1). DISASSEMBLY 2. Remove all parts from body (16) except pin (30) and arm assembly (28). It is not necessary to remove these parts unless broken or worn. Examine parts for wear or damage.
  • Page 24 3/8 BSPP 102 Nm 102 Nm LOCTITE ® LOCTITE ® 1/4 BSPP FIGURE 11 HYDRAULIC STROKER PARTS LIST FOR FIGURE 11 ITEM DESCRIPTION PART NO. QTY. hydraulic stroker S22-15308 Cap (Figure 6) S22-15268 Screw 032-91461 O-Ring, 70 S -1 ARP 010 671-00010 Clevis pin 321-40000...

  • Page 25: Torque Limiter Parts List

    TORQUE LIMITER CCW ROTATION J10 – K10 J20 – K20 CW ROTATION TORQUE LIMITER PARTS LIST QUANTITY torque limiter ITEM DESCRIPTION PART NO. Max. Vol. Stop (Fig. 1) S22-12983 — — Max Vol. Handwheel (Fig. 2) S22-12915 — — Low Torque Limiter (Fig. 12) S22-15314 —...

  • Page 26: Torque Limiter Disassembly & Assembly

    TORQUE LIMITER TORQUE LIMITER 1. See Figure 12. Remove 2 screws holding Torque Limiter body (16) to cap assembly (1). DISASSEMBLY 2. Remove all parts from torque limiter body (16) except pin (30) and arm assembly (28). It is not necessary to remove these parts unless broken or worn. Examine parts for wear or damage.
  • Page 27 TORQUE LIMITER 102 Nm SET PRESS. AT FULL FLOW 102 Nm COMP. ADJUST. LOCTITE ® 6,78 Nm ® LOCTITE LOCTITE ® DIFF. SET FLOW AT FULL PRESS. ADJUST. FIGURE 12 – TORQUE LIMITER ASSEMBLY SYSTEM PRESSURE 1/2 BSPP TORQUE 60 Nm COMP.

  • Page 28: Parts Lists For Figure 12 And Figure

    TORQUE LIMITER PARTS LIST FOR FIG. 12 ITEM DESCRIPTION PART NO. QTY. J** QTY. K** code J, S22-15533 Cap (Figure 13) S22-12923 code K, S22-15535 Screw 032-91461 Clevis pin 321-40000 Spring, Compression 032-92100 Plug, Avseal 447-00026 Screw 032-91445 Nut, Hex Jam 1/4- 20 UNC 340-00038 Hex Nut, 3/4 -16 UNF 032-91449...

  • Page 29: Torque Limiter Test And Adjustment

    TORQUE LIMITER TORQUE LIMITER TEST AND 1. Install gages on system pressure and on compensator vent ports. ADJUSTMENT 2. Turn compensator adjustment screw out to remove spring load, then 1/2 turn in. 3. Turn differential adjustment screw out to remove spring load, then 1/2 turn in. 4.

  • Page 30: Rotary Servo Parts List

    ROTARY SERVO 3 5 6 3 5 6 3 5 6 8 NOT SHOWN CCW ROTATION 3 5 6 3 5 6 3 5 6 10 11 12 13 NOT SHOWN 8 NOT SHOWN R1J – R1K CW ROTATION P140 P260 QUANTITY PARTS LIST...

  • Page 31: Rotary Servo Disassembly, Assembly, Test

    ROTARY SERVO ROTARY SERVO 1. See Figure 14. Remove 2 screws holding body (16) to cap assembly (1). DISASSEMBLY 2. Remove all parts from body (16) except pin (30) and arm assembly (28). It is not necessary to remove these parts unless broken or worn. Examine parts for wear or damage.
  • Page 32 ROTARY SERVO SECTION A–A 102 Nm 102 Nm ® LOCTITE ® LOCTITE FIGURE 14 ROTARY SERVO PARTS LIST FOR FIGURE 14 ITEM DESCRIPTION PART NO. QTY. Cap (Figure 6) S22-15268 Assembly No.. S22-15310 Screw 032-91461 O-Ring, 70 S -1 ARP 010 671-00010 Pin, Clevis 321-40000...

  • Page 33: Load Sensing Control Parts List

    LOAD SENSING CONTROL CCW ROTATION CW ROTATION 9 10 9 10 NOT SHOWN NOT SHOWN LOAD SENSING CONTROL ITEM DESCRIPTION PART NO. QTY. L10 QTY. L20 Max. Vol. Stop (Fig. 1) S22-12983 — parts list Max Vol. Handwheel (Fig. 2) S22-12915 —...

  • Page 34: Load Sensing Control Disassembly, Assembly, Test

    LOAD SENSING CONTROL LOAD SENSING CONTROL 1. See Figure 15 Back off max. volume screw to full displacement. Remove max. volume screw assembly. DISASSEMBLY 2. Remove bolts holding cap to pump. 3. Remove isolation valve (29) from block (28). Remove plug (15) and attached parts. Remove spring (11) and spool (18).
  • Page 35 LOAD SENSING CONTROL "L" LOAD SENSE PORT 13,8 BAR DIFFERENTIAL PARTS LIST FOR FIGURE 15 ITEM DESCRIPTION PART NO. QTY. Assembly No. S22-15537 Cap-Sleeve Assembly S22-15176 Adj. Plug 032-91814 Soc. Setscrew 312-13160 Nut, 5 /16 -24 335-13100 Seal Piston 031-59367 O-Ring, 90 S-1 ARP 012 691-00012 Spring...

  • Page 36: Hydraulic Circuits

    HYDRAULIC CIRCUITS HYDRAULIC CIRCUIT PRESSURE COMPENSATOR (C10) HYDRAULIC CIRCUIT PRESSURE COMPENSATOR, LOAD SENSING CONFIGURATION (C10) www.comoso.com...

  • Page 37: Torque Limiter

    HYDRAULIC CIRCUITS HYDRAULIC CIRCUIT TORQUE LIMITER (J & K10) HYDRAULIC CIRCUIT ROTARY SERVO (R10) www.comoso.com...

  • Page 38: Manual Rotary Servo With Compensator Override

    HYDRAULIC CIRCUITS HYDRAULIC CIRCUIT ROTARY SERVO WITH COMPENSATOR OVERRIDE (R1P) HYDRAULIC CIRCUIT ROTARY SERVO WITH TORQUE LIMITER OVERRIDE (R1J & R1K) www.comoso.com...

  • Page 39: Electric Stroker

    HYDRAULIC CIRCUITS HYDRAULIC CIRCUIT ELECTRIC STROKER (E10) HYDRAULIC CIRCUIT ELECTRIC STROKER WITH COMPENSATOR OVERRIDE (E1P) www.comoso.com...

  • Page 40: Electric Stroker With Torque Limiter Override

    HYDRAULIC CIRCUITS HYDRAULIC CIRCUIT ELECTRIC STROKER WITH TORQUE LIMITER OVERRIDE (E1J & E1K) HYDRAULIC CIRCUIT HYDRAULIC STROKER (H10) www.comoso.com...

  • Page 41: Hydraulic Stroker With Compensator Override

    HYDRAULIC CIRCUITS HYDRAULIC CIRCUIT HYDRAULIC STROKER WITH COMPENSATOR OVERRIDE (H1P) HYDRAULIC CIRCUIT HYDRAULIC STROKER WITH TORQUE LIMITER OVERRIDE (H1J & H1K) www.comoso.com...

  • Page 42: Load Sensing Control

    HYDRAULIC CIRCUITS & STROKER PERFORMANCE CHART HYDRAULIC CIRCUIT LOAD SENSING CONTROL (L10) P260 SERIES PUMP .100 .200 .300 .400 AMPS AMPS AMPS AMPS CONTROL PRESSURE–BAR HYDRAULIC AND ELECTROHYDRAULIC STROKER PERFORMANCE www.comoso.com...

  • Page 43: Installation Drawings

    TORQUE TO TURN MAX. VOL. ADJ. HANDWHEEL 104,8 17 N-M @ 70 BAR 97,5 64,2 39 N-M @ 500 BAR 56,4 TORQUE LIMITER ADJUSTMENT 370,2 MAX. 3/8 KEY REQUIRED TO ADJ. MAX. VOL. SCREW "J2" & "K2" COMPENSATOR CONTROLS ADJUSTMENT ONLY REF.
  • Page 44 12,7 DIA ROTARY INPUT SHAFT 104,8 162,3 11,0 ACROSS FLATS ZERO VOLUME STOP 97,5 REF. "X" REF. "C" (35 TO 69 BAR) 61,7 278,0 ROTARY SERVO 196,0 "R" 158,7 16,2 OUTLET PORT "B" 18,3 RANGE ADJUSTMENT 203,2 162,3 104,8 ZERO VOLUME STOP 60,1 REF.
  • Page 45 OUTLET PORT "B" 159,0 231,4 CONTROL-CAP SPRING BUCKDOWN "O" 97,5 104,8 123,7 MAX VOLUME ADJUSTMENT (1/10 STROKE PER TURN) OUTLET PORT "B" 159,0 TORQUE LIMITER OVERRIDE W/MAX VOLUME STOP "J" OR "K" 295.2 REF "V" COMPENSATOR ADJUSTMENT REF. "C " 97,5 MAX VOLUME ADJUSTMENT (1/20 STROKE PER TURN)

  • Page 46: Controls Key Sheet

    CONTROLS KEY SHEET P260 - * * * * - C 1 0 - * Secondary control options O-S22-15272– None P-S22-15531 – Compensator Override J-S22-15533 – Low Torque Limiter Override 282-706 Nm K-S22-15535 – High Torque Limiter Override 706 -1129 Nm Primary control options 1-S22-12983 –...

  • Page 47: Technical Data Conversions

    CONVERSIONS & FORMULAS DEFINITION & UNIT /rev x 16.387 = cm /rev /rev x 0.06102 = in /rev displacement gpm x 3.78 = l/min l/min x 0.2642 = gpm flow hp x 0.7457 = kW kW x 1.341 = hp power lb-ft x 1.3567 = Nm Nm x 0.7376 = lb-ft...
