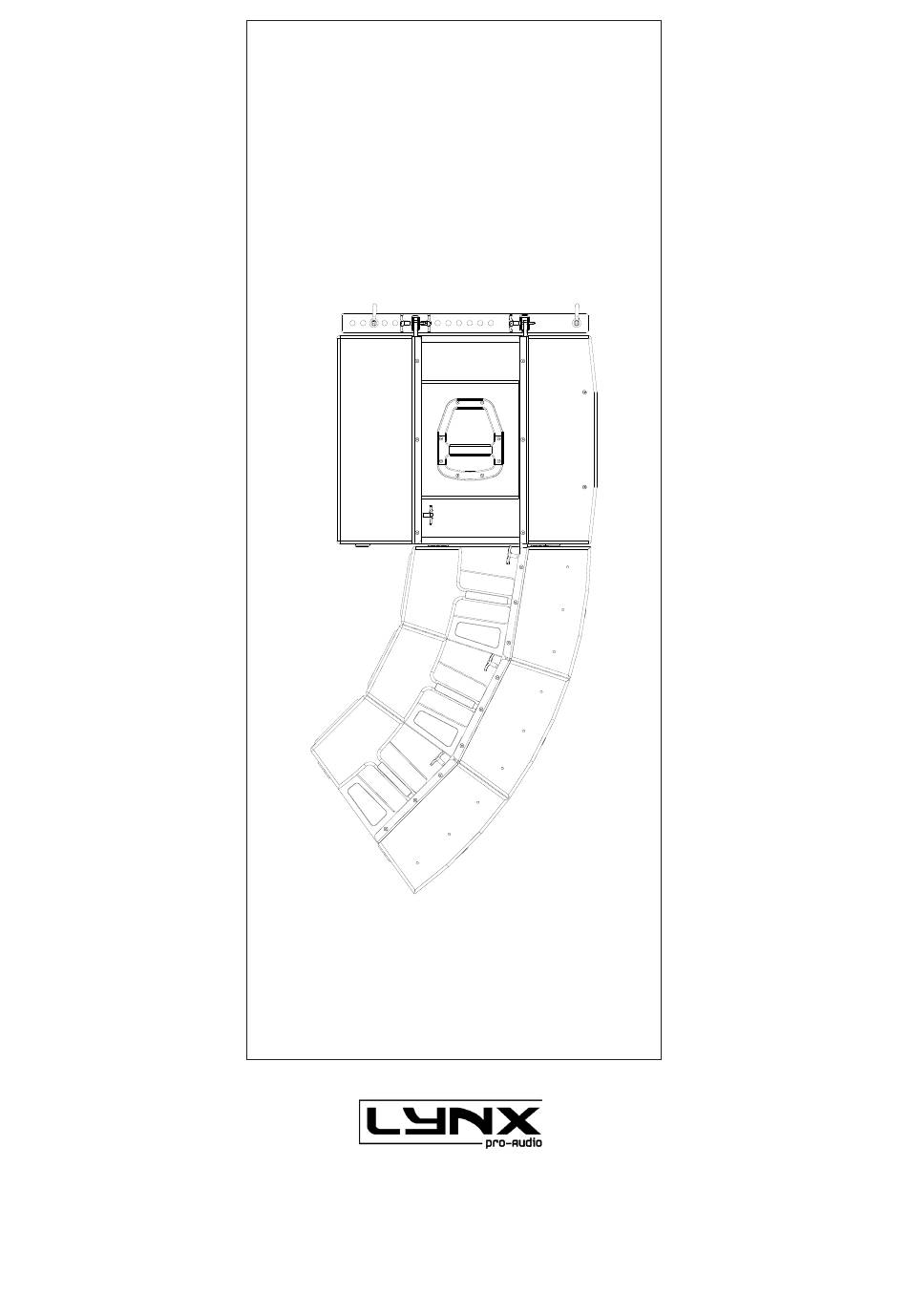

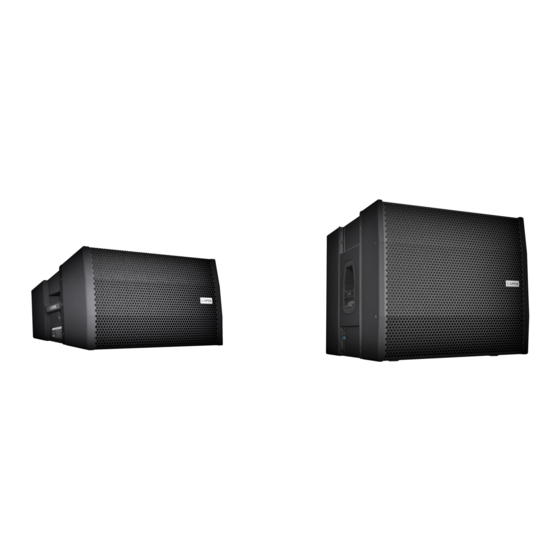

- Page 1 CXA series USER MANUAL CXA-12 CXA-18S Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
-
Page 3: Table Of Contents
• ASSEMBLY OF SV-CXA • FITTING THE CXA-12 CABINETS TO THE FLYING FRAME • FITTING THE CXA-18S CABINETS TO THE FLYING FRAME • FITTING THE CXA-12 WITH CXA-18S CABINETS • THE CEILING BRACKET • CERTIFICATIONS AND GUARANTEE Lynx Pro Audio S.L www.lynxproaudio.com... - Page 4 When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.
-
Page 5: System Overview
16A Neutrik powerCon TRUE1 with looping output Finish: Polyurea coating, high grade resistant paint Material: 18 mm Premium birch plywood Dimensions: 556 x 632 x 696 mm (H x W x D) Weight: 45 kg (99 lbs) • CXA-12 measurements Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 6: Cxa-18S
16A Neutrik powerCon TRUE1 with looping output Finish: Polyurea coating, high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 357 x 632 x 484 mm (H x W x D) Weight: 31 kg (68 lbs) • CXA-18S measurements Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 7: Back Panel
* Available when the user has requested the cabinets to be supplied with the Ethernet Module kit. CONNECTORS AND CONNECTIONS SOCKET POWERCON TRUE1 CAUTION: Do not connect or disconnect the AC Power c onnect ors under load. NAC3FX-W NAC3MX-W Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 8: Connectors And Connections
CXA Series User Manual CONNECTORS AND CONNECTIONS XLR SOCKET CONNECTORS XLR AEREAL CONNECTORS INPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) OUTPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) Lynx Pro Audio S.L www.lynxproaudio.com... - Page 9 • CONNECTION EXAMPLE (mono channel): four tops CXA-12 + two sub CXA-18S This is the maximal CXA configuration, delivering a 72º coverage in the vertical plane. Total coverage 100ºH x 72ºV. AC main input Link AC main input Link Link Link Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 10 CXA Series User Manual CONNECTORS AND CONNECTIONS • STACKED CONNECTION EXAMPLE (mono channel): three tops CXA-12 + one sub CXA-18S AC main input Link Link AC main Signal input input STACKED Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 11 CXA Series User Manual CONNECTORS AND CONNECTIONS • FLOWN CONNECTION EXAMPLE (mono channel): three tops CXA-12 + one sub CXA-18S AC main Signal input input AC main input Link Link FLOWN Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 12: Configuring The Dsp Options
OK (3) until the progress bar finishes (Fig 3). The display will indicate “Loading DSP” (Fig 4). Fig 4 Fig 2 Fig 3 Note: In case of a power cut, the DSP will save its last configuration when restarted. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 13: Online Control System
User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 14: Rainbow 3D Acoustic Simulation Software
Additionally, the export of FIR coefficients can be performed with the optimization for later loading in the DSP via Ethernet or a USB device. In the near future direct communication with Lynx Pro Audio and OCS will be available. -
Page 15: Hardware And Accessories
M20 pole support com- Nylon protection for bination between sub CXA-18S units and CXA-12 with safety lock SB-02 FC-3CXA12 35mm lightweight alu- Flight case to transport minium stand for the three CXA-12 CXA-12 UBR-CXA12 Ceiling bracket for CXA-12 Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 16: Application Examples
CXA Series User Manual APPLICATION EXAMPLES • For a multitude of applications: Lynx Pro Audio S.L www.lynxproaudio.com... - Page 17 For applications with higher low-frequency demand add one sub unit CXA-18S per channel. • 800 people. Coverage: 100ºH x 54ºV • 800 people. Coverage: 100ºH x 72ºV Freq. response: 35 Hz - 18 KHz Freq. response: 35 Hz - 18 KHz Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 18: How To Use The Flying Frame On Cxa-12
The support of the cabinets to the flying system is carried out with special 6mm steel pins. To extract or fix the steel pins it is necessary to press the central button of the pin. Lynx Pro Audio S.L www.lynxproaudio.com... - Page 19 CXA Series User Manual HOW TO USE THE FLYING FRAME SV-CXA When using the flying frame with the CXA-18S sub units: • NOTE: Only use the four STRAIGHT parts provided Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 20: Assembly Of Sv-Cxa
CXA Series User Manual ASSEMBLY OF THE FLYING FRAME SV-CXA When using the flying frame with the CXA-12 line array units: • Part ANGULATED NOTE: Only use the two ANGULATED parts provided Lynx Pro Audio S.L www.lynxproaudio.com... - Page 21 Note: To hang the system with motors or hoists, use the shackles code nº GS-12. NOTE: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 22: Fitting The Cxa-12 Cabinets To The Flying Frame
If the system is installed outdoors check that the support structure will be stable against the wind strength and secure it with a cable to avoid pendular movement. Do not stand underneath the system. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 23: Fitting The Cxa-18S Cabinets To The Flying Frame
To fly the CXA-18S cabinets is very easy with the flying frame SVA-CXA. For a typical CXA array • configuration you can fly a combination of a maximum 2 sub enclosures. The way to do it is very easy, just follow these 3 steps: Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 24: Fitting The Cxa-12 With Cxa-18S Cabinets
To fly the CXA-18S cabinets is very easy with the flying frame SVA-CXA. For a typical CXA array • configuration you can fly a combination of a maximum 2 sub enclosures. The way to do it is very easy, just follow these 3 steps: Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 25: The Ceiling Bracket
Once the lateral plates are fixed you have to insert the knob into the upper hole of the plate. This will help you to connect Lateral plate the cabinet with the U type support. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 26: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that CLS series are in conformity with the following EC directives: Low Voltage Directive 2014/35/UE Electromagnetic Compatibility EMC 2014/30/UE... - Page 27 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
