- Page 1 ADP-12S USER MANUAL V.12.11 Lynx Pro Audio S.L. Valencia, Spain www.lynxproaudio.com - info@lynxproaudio.com...

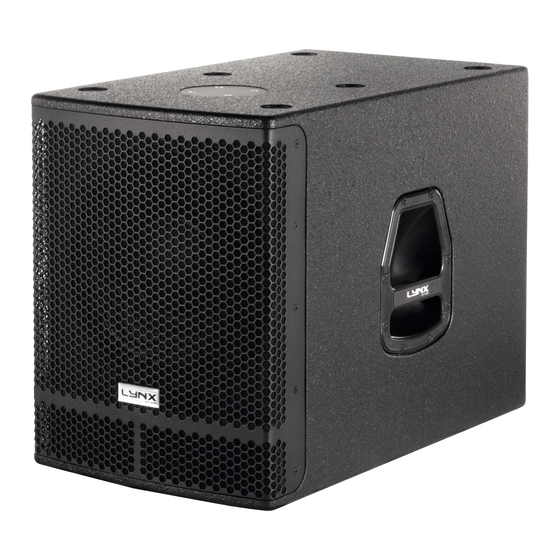

- Page 2 ADP-12S Class D Powered Integrated Digital Processing Internal temperature control Electronic protection High quality components Online monitoring available LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com...
- Page 3 CB SCHEME, IEC SYSTEM FOR CONFORMITY TESTING AND CERTIFICATION OF ELECTRICAL EQUIPMENT CE CERTIFICACTION, EUROPEAN PRODUCT This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2012. All rights reserved.
-
Page 4: Table Of Contents
CONNECTORS AND CONNECTIONS - CONFIGURING THE CABINET DSP OPTIONS CONFIGURATION PANEL SELECT AND RUN PRESET ONLINE CONTROL SYSTEM CONFIGURING ETHERNET - SOFTWARE, RAINBOW ACOUSTICAL PREDICTION SOFTWARE FEATURES - ACCESSORIES - GUARANTEE LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com... - Page 5 When flying this system please observe the technical and software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals.
-
Page 6: Specifications
ADP-12S INTRODUCTION To facilitate, correct and reliable use of the powered cabinet ADP-12S we have designed this instruction manual. Please read the manual carefully before proceeding to install the system. Please observe the technical data carefully and do not ignore the instructions included within this manual. -

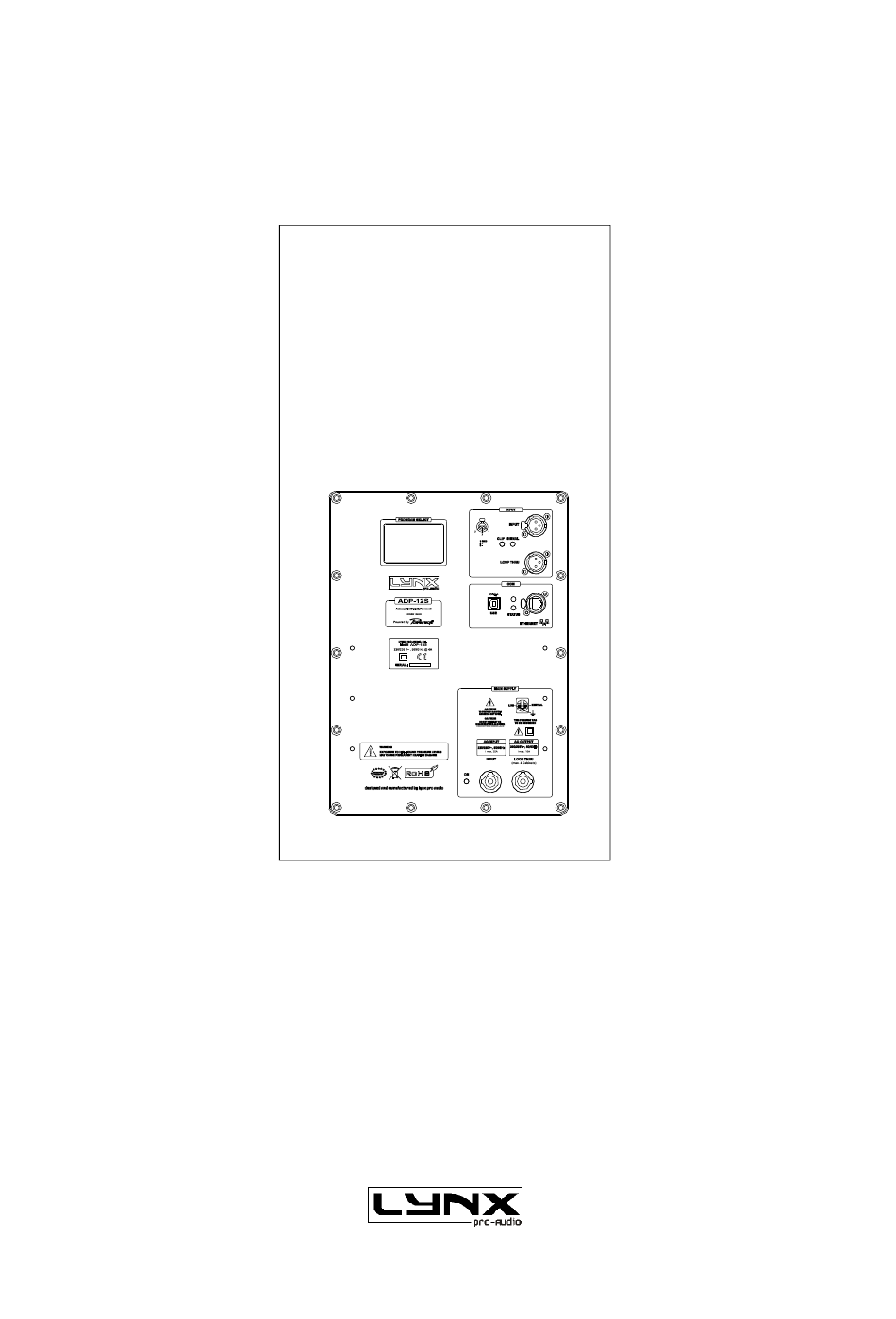

Page 7: Connectors And Connections
5.- USB. 6.- DSP CONTROL. 7.- ETHERNET (optional) CONNECTORS AND CONNECTIONS XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com... - Page 8 SOCKET POWERCON CONNECTORS L - Line N - Neutral CAUTION: Do not connect or disconnect the AC Power - Earth connectors under load. CONNECTION EXAMPLE: 6 ADP-12S CABINETS Connect to signal output Connect to AC output Connect to signal output...
-
Page 9: Configuring The Cabinet Dsp Options
Note: You must apply the desired configuration in each one cabinet. This is done via the buttons located on the back panel of the cabinet and requires electrical power to work. LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com... -
Page 10: Configuration Panel
Once found, press OK (Fig2(3)) until the progress bar finishes (Fig3). The display will indicate “Loading DSP” (Fig4) Fig 3 Fig 4 Fig 2 Note: In case of a power cut, the DSP will save its last configuration when restarted. LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com... -
Page 11: Online Control System
ADP-12S ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 12: Configuring Ethernet
ADP-12S CONFIGURING ETHERNET TO WORK WITH THE ADP-12S There are two possible ways to connect: 1.- Connecting through an ETHERNET SWITCH/HUB:: - You will need a normal CAT5 Cable. 2.- Connecting through a Wirless ETHERNET. Let us now proceed to configure the Ethernet network, setting the IP address of the computer as static. To do this go to: START >... - Page 13 Open the O.M.S Software and from the Initial Screen choose ETHERNET. It will open a different screen, as follows, there you can see your Network configuration, and the cabinets currently connected. LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com...
- Page 14 Assign IP to select Device button after writing in the box above the desired data. Remember there cannot be two devices with exactly the same IP address, the last set of three numbers has to be different and unique to each one of the devices. LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com...
- Page 15 Returning to the main screen, we can see each cabinet showing: Model, IP address and Name, as well as monitoring: RMS Level, Input Clip, Cabinet angulation, amplifier temperature and fan speed. LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com...
- Page 16 It will open the cmd.exe from where you can type the IPCONFIG command ( ipconfig + Enter), which will show your actual IP settings. Here we can see that this PC has IP set as 192.168.2.99. LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com...
- Page 17 IP" (ping 192.168.2.xxx) and press enter. If there is no device with this IP you will see the following information: If the IP is in use, the device will respond to the Ping, and we will obtain this information: You now have the Cabinets working in the ETHERNET Network Enviroment. LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 18: Acoustical Prediction Software
The Rainbow software has been designed by and for sound technicians. Its aim is to help installers and users of Lynx products. This software is able to import WMF Vector Files with technical drawings and insert them directly into the prediction window and thus enabling real measurement predictions. -
Page 19: Features
- Coverage curves on the hearing zones. - Export of SPL Map and coverage curves on jpg or bmp format - Print project report (SPL prediction, flying points, weights, cabinet inclination, polarities, process aplied, EQ Curves…) LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com... - Page 20 35mm connecting pole for satellite combination with ADP-15. Spring- loaded locking screw and safety bolt TU-C02 M20 pole support for satellite combination with ADP-15. Spring- loaded locking screw and safety bolt LYNX Pro Audio S.L. - Valencia, Spain www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 21: Guarantee
Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. - Page 22 DECLARATION OF CONFORMITY LYNX Pro Audio S.L. Calle 7 - Pol. Ind. Picassent E-46220 Picassent (Valencia) Lynx Pro Audio S.L. declares that model ADP-12S is in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC...
