Model
AZSU350-JWB
Use & Care
• The product warranty is printed on the back of this guide.
Guide
• This product is suitable for AC 220 - 240 V only.
AIR PURIFIER
User Manual
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZSU350-JWB and is the answer not in the manual?

Questions and answers

Related Manuals for Winix AZSU350-JWB

Summary of Contents for Winix AZSU350-JWB

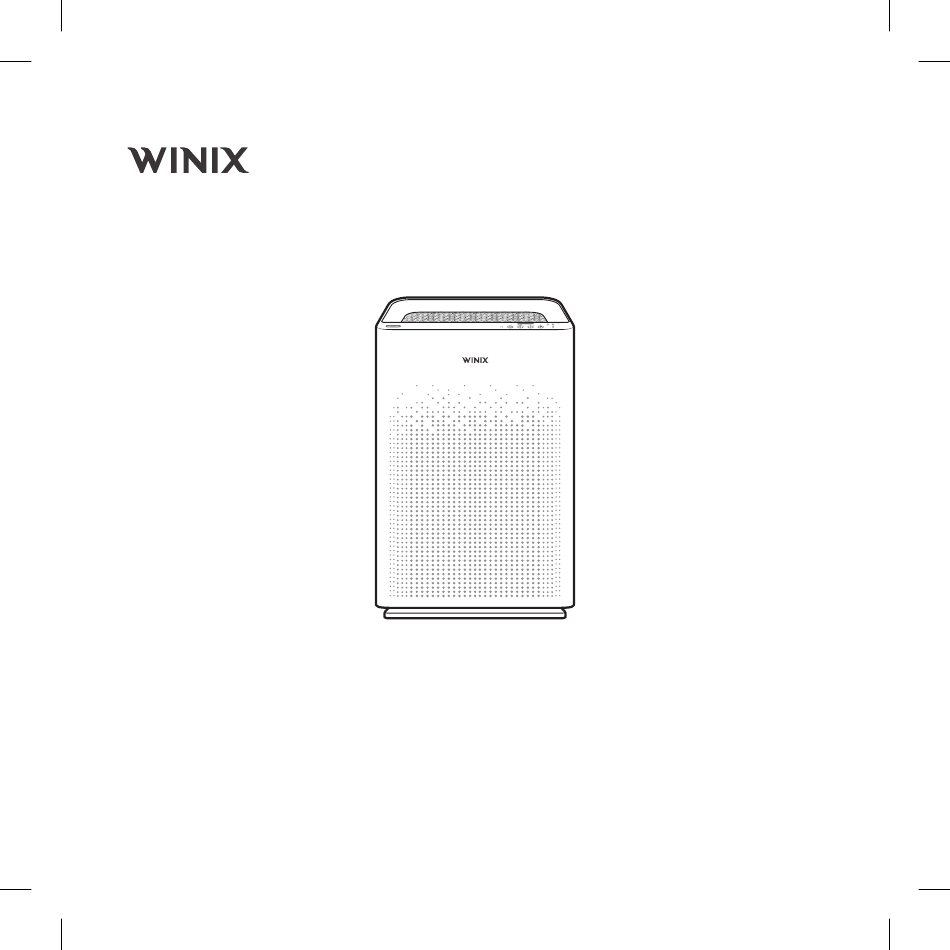

  • Page 1 User Manual User Manual AIR PURIFIER Model AZSU350-JWB Use & Care • The product warranty is printed on the back of this guide. Guide • This product is suitable for AC 220 - 240 V only.

  • Page 2: Where To Use

    English MODEL PART DIAGRAM FRONT BACK Air Outlet Vent Control Panel Handle Dust Sensor Front Panel Power plug PACKAGE CONTENTS (1) In front of Pre-Filter User Unit (1) Active Carbon Filter Manual (1) True HEPA Filter WHERE TO USE Allow 30 ~ 45 cm. of space between TVs, radios, and other electronics Electromagnetic interference from certain electronics may cause product malfunction.

  • Page 3: Control Panel

    CONTROL PANEL ® 01. Auto Mode Indicator 04. PlasmaWave Indicator ® The LED "Auto" light will indicate when Auto Mode is Indicates whether PlasmaWave is enabled or activated. disabled. 02. Air Quality Indicator 05. Sleep Mode Indicator Color coded LED light indicates one of three levels of When Sleep Mode is activated, the Air Quality Air Quality: Red (poor), Amber (fair), and Blue (good).
  • Page 4 ® 07. Filter Reset Button 10. PlasmaWave Button ® After replacing the True HEPA Filter, use a small object Press the Plasmawave button when the unit is such as a paper clip, to press and hold the Filter on to enable or disable this feature. By default, Reset Button for at least 5 seconds until the Filter PlasmaWave ®...

  • Page 5: Maintenance

    4-STAGE AIR PURIFICATION ® Pre-Filter Active Carbon True HEPA Filter PlasmaWave Filter 01. Pre-Filter 02. Active Carbon Filter Designed to catch larger airborne particles found Reduces VOCs and household odors from cooking, indoors. pets, and smoke. ® 03. True HEPA Filter 04.

  • Page 6: Initial Operation

    INITIAL OPERATION Latch Remove the front panel by grasping its upper Install the filters until they fit securely in place. edge and gently pulling forward. 03. True HEPA Filter (back) 02. Active Carbon Filter (middle) 01. Pre-Filter (front) Latch Remove the Pre-Filter, then the bag of filters After filters are installed, close the front panel.

  • Page 7: Replacing Filters

    REPLACING FILTERS After replacing a filter, press the Filter Reset Button for at least 5 seconds. item: 116130 CLEANING CARE Cleaning the Filters: Cleaning the Exterior & Interior: Use a vacuum cleaner or soft brush to clean the Pre-Filter • If it is excessively soiled, rinse in room temperature water. •...

  • Page 8: Safety And Cautions

    SAFETY AND CAUTIONS Before operating this equipment, carefully read and Do not pull on the power cord when unplugging the follow these safety cautions. unit. Ensure filters are inserted before running unit. Do not tie or knot the power cord when unit is in Running the unit without filters can shorten the operation.

  • Page 9: Safety Instructions

    SAFETY INSTRUCTIONS Thank you for purchasing a Winix air purifier. This product is for household use only. IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER: WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.

  • Page 10: Frequently Asked Questions

    The terms of the warranty are as follows: Product Name Air Purifier This product is manufactured under stringent Model Name AZSU350-JWB quality control and inspections. Purchase Date The warranty will be voided if product failure is a Warranty period Two (2) Years result of negligence or misuse by the consumer.

  • Page 11: Unit Specifications

    Filter H / SKU: 116130 The exterior, design, and product specifications may be changed without prior notice to improve product performance. Contact Winix for product related inquiries and customer service • Website : www.winixeurope.eu To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address.
  • Page 12 Contact Winix for • Website: www.winixeurope.eu product related inquiries and customer service To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address. 2610-0270-01 Rev.00...
