Summary of Contents for OSTBERG RS

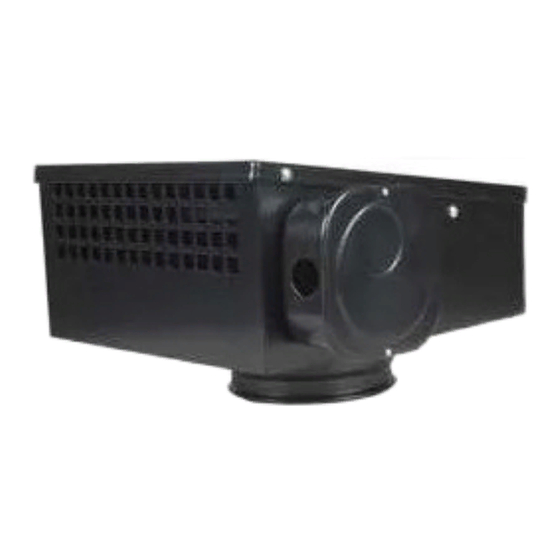

- Page 1 Installation and directions for use Wall fan, RS UL VERSION...
- Page 2 CAUTION! FOR GENERAL VENTILATION USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS. D E S C R I P T I O N • The RS 5” and 6” are UL 507 ”Fans Electric” appro- • The fan is equipped with an asynchronous external ved.
-
Page 3: Observe The Following
M A I N T E N A N C E WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: • Use this unit only in the manner intended by the • The fan must be cleaned when needed, at least manufacturer. -
Page 4: Wiring Diagrams
RS 5” C, RS 6” C. Wiring diagram no: 4040001: Wiring diagram no: 4040002: RS 4” C PV, RS 5” C PV, RS 6” C PV, RS 4” A PV, RS 5” A PV, RS 8” B PV, RS 8” B PVS. - Page 5 I N S T A L L A T I O N I N S T R U C T I O N S Before mounting, make sure that right current is The RS is an exhaust fan designed for mounting stated on the label for connection, and make sure on an external wall or ground work.
- Page 6 The wall fan RS is mounted to duct, such as spiro. Make the lead-through sealing accurately to avoid moisture damage on the building. Seal the fan at the top towards the wall. Externally insulate the duct to avoid condensation and downdraughts.
- Page 7 OSTBERG AMERICAS INC. 55 Raglin PL # 3 • Cambridge, N1R 7J2 • Canada Phone 519-623-6363 Telefax 519-623-8543 www.ostberg.com...
