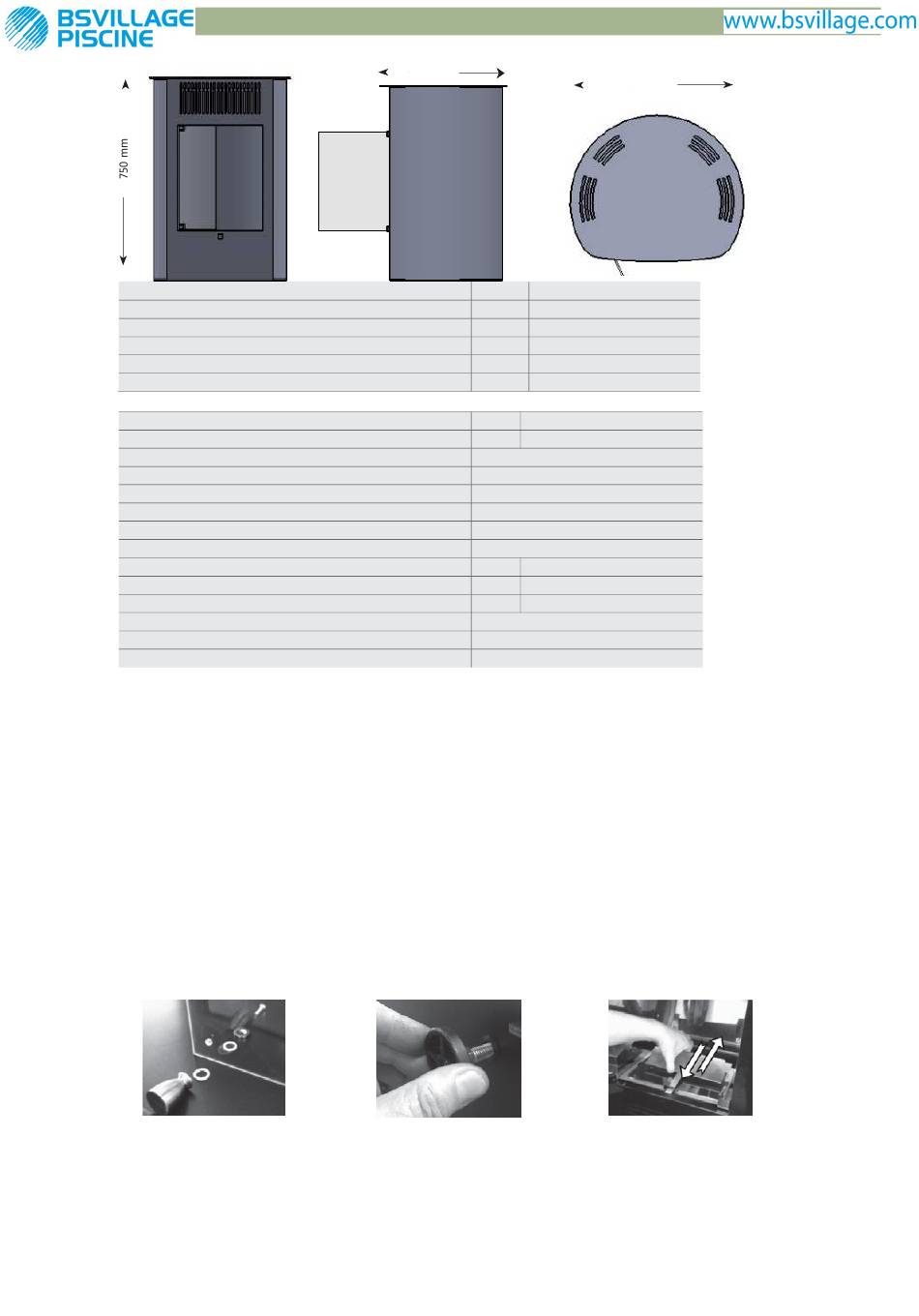

Installation - Tecno Air System Ruby Elegance Installation Manual

WIDTH
DEPTH
HEIGHT
BIOETHANOL TANK CAPACITY
NET WEIGHT
GROSS WEIGHT
FUEL
NOMINAL OUTPUT
AUTONOMY RANGE
MAXIMUN CONSUMPTION
REMOVABLE TANK
ADJUSTABLE FEET
ESSENCE HOLDER CONTAINER
LIGHTER WP18 (18CM)
MANUAL PUMP TRANSFER
RATED POWER
SUPPLY VOLTAGE
NOMINAL FREQUENCY
ELECTRIC INSULATION CLASS
INTERNATIONAL PROTECTION
WARRANTY
4.

INSTALLATION

UNPACKING
• Open the carton being careful do not damage the appliance with sharp tools,
•gently pull up the stove out from the packing, beware the glass,
•remove all protections and packing materials before using the stove and make sure that you have removed
all the accessories inside: pump, lighter WP18, essence holder, feet, booklet instructions, elettrical tools, all
of the stickers and the internal packagings parts of the stove.
INSTALLATION
After unpacking the appliance, place it in a secure and stable place that has been awarded, making sure that
there is enough space for the preliminaries.
Make sure to place the stove in a right position to avoid possible impacts.
Place the components as in figure. A
letting the screw to the concave side
of the magneto.
Pag. 19 di 28
360 mm
BIOETHANOL ECOFIRE OR EQUIVALENT
Screw the feet into right mounting
holes at the basement of the stove.
470 mm
mm 470
mm 360
mm 750
Liter 2
Kg 24,5
Kg 26,0
kW
3
hours
+ /- 6
0,33 LT/h
YES
YES
YES
YES
YES
W 25
V~
230
Hz
50
I
IP 20
2 YEARS
Pull the rod pulling to the botton and
insert it in its seat, read and take out
the pictograms sticker above the
burner
