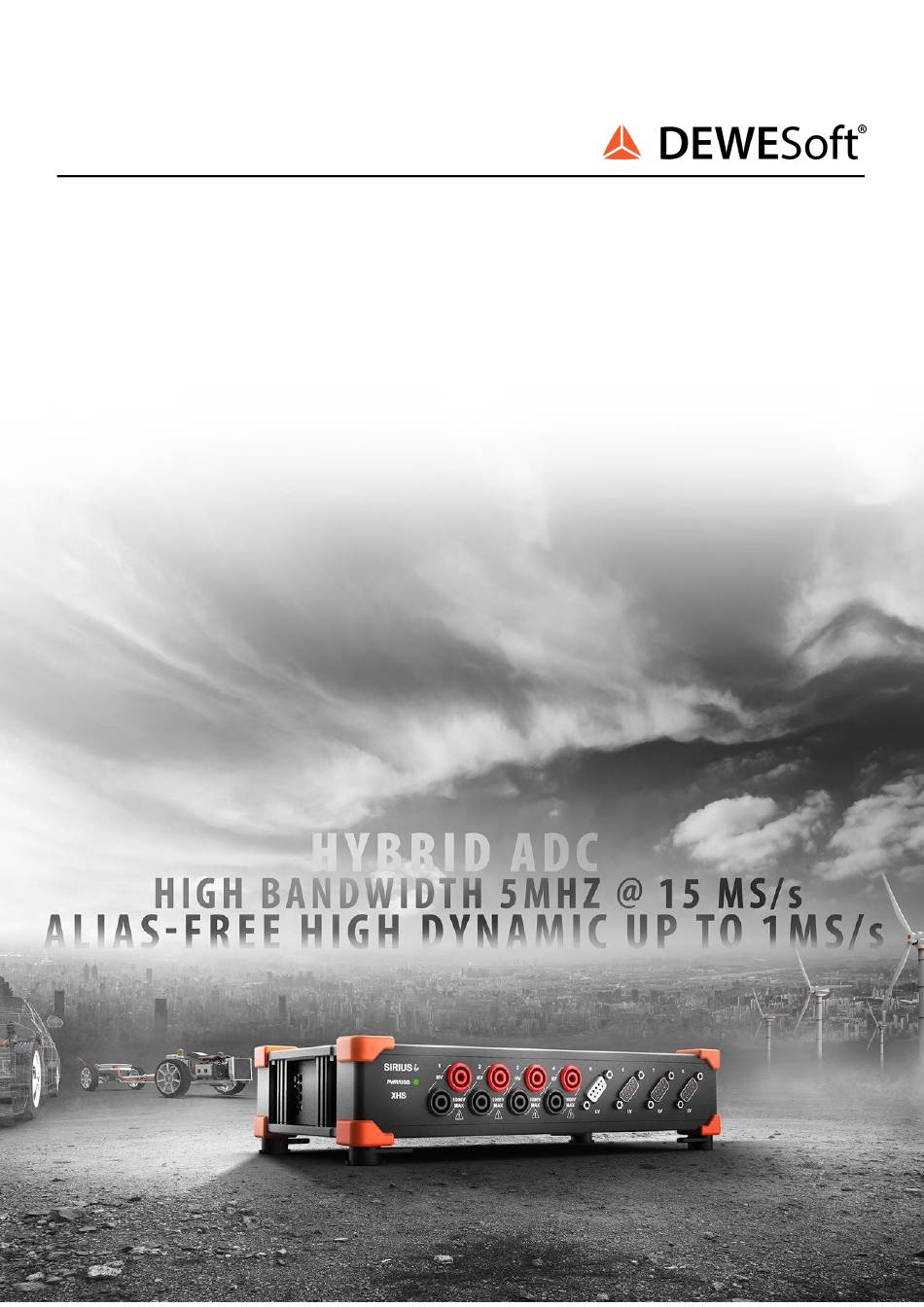

- Page 1 SIRIUSi-XHS® TECHNICAL REFERENCE MANUAL SIRIUSi-XHS® V21-1 ...
-
Page 2: Table Of Contents
DEVICE TECHNICAL REFERENCE MANUAL Table of contents 1. About this document 4 1.1. Legend 4 1.2. Online versions 5 1.2.1. Online SIRIUSi-XHS® technical reference manual 5 1.2.2. DewesoftX® User Manual 5 2. Getting started 6 2.1. Software installation 6 ... - Page 3 6. Safety instructions 46 6.1. General Safety Instructions 46 6.1.1. Environmental Considerations 46 6.1.2. Product End-of-Life Handling 46 6.1.3. General safety and hazard warnings for all Dewesoft systems 46 7. Notice 49 7.1. Warranty Information 49 7.2. Calibration 49 7.3. Support 49 ...
-
Page 4: About This Document
DEVICE TECHNICAL REFERENCE MANUAL 1. About this document This is the Technical Reference Manual for SIRIUSi-XHS® device, version V 21-1. SIRIUSi-XHS® is a high performance, high speed line of SIRIUS® real time data acquisition hardware ... -
Page 5: Online Versions
1.2. Online versions 1.2.1. Online SIRIUSi-XHS® technical reference manual The most recent version of this manual can be downloaded from our homepage: https://download.dewesoft.com/list/manuals-brochures/hardware-manuals In the H ardware Manuals section click the download link for the S IRIUSi-XHS® technical reference ... -
Page 6: Getting Started
SIRIUSi-XHS® system (included in the shipment) ● your network cable (included in the shipment) ● Your USB cable (included in the shipment) ● Your PC with Windows 10 and the Dewesoft® software ● Note: older versions like Windows® 7 may also work ● ... -
Page 7: Connecting Siriusi-Xhs
DEVICE TECHNICAL REFERENCE MANUAL 2.2. Connecting SIRIUSi-XHS® In this chapter, you can see the basic instructions for connecting SIRIUSi-XHS® devices over 3.0 USB and RJ-45 ethernet connection. Advanced connections are described in the following chapters. 2.2.1. Connection over 3.0. USB First connect the power supply cable (PS-120-L1B2f) to the PWR IN 2-pin LEMO 1B male connector. -
Page 8: Sample Rate Limitation When Connected With Ethernet
DEVICE TECHNICAL REFERENCE MANUAL 2.2.2.1. Sample rate limitation when connected with Ethernet When connecting the device via Ethernet there is a limitation of sample rate, depending on how many channels we want to use. Nr. of channels used in measure Data Rate / channel ... -
Page 9: Troubleshooting
DEVICE TECHNICAL REFERENCE MANUAL 2.2.2.3. Troubleshooting If DewesoftX® doesn’t detect your devices you should try pinging them via command prompt. In command prompt write: ping IP replace IP with IP that is set on your device. The result should be something like this: ... -
Page 10: Dewesoftx® Settings For Siriusi-Xhs
Settings item in the pop-up to open the DewesoftX® settings dialogue. I mage 6: DewesoftX® settings In case the XHS device is connected via USB, the device will automatically be listed under the Dewesoft ... - Page 11 DEVICE TECHNICAL REFERENCE MANUAL I mage 7: the device shown in Device list When you connect the SIRIUSi-XHS® device over Ethernet the device is treated as a RT device and ...
- Page 12 DEVICE TECHNICAL REFERENCE MANUAL I mage 8: Adding RT device From the 2020.2 Release candidate version the RT-device option is no longer experimental. In ...
- Page 13 After that you will see a new SIRIUSi-XHS® or Dewesoft RT connection in the device tree. I mage 9: RT device Connection If the text by the device is disconnected, you should click on the device (Dewesoft RT Connection) , set ...
- Page 14 DEVICE TECHNICAL REFERENCE MANUAL I mage 10: Setting IP If everything is set correctly both devices should be detected as SiriusXHS devices. SIRIUSi-XHS® - V21-1 14/51 ...
- Page 15 selecting time source. When you have only one device you can select the Dewesoft DAQ devices and ...
-
Page 16: Channel Setup Siriusi-Xhs
DEVICE TECHNICAL REFERENCE MANUAL 2.2.4. Channel Setup SIRIUSi-XHS® When Dewesoft has started up, you will be in the Measure mode and see the Setup files list or you can ... -
Page 17: Simple Measurement
the measurement setup. 2.3.1. Help - Manual Note that this document is just a quick start guide. For detailed information about Dewesoft consult the ... -
Page 18: Sample Rate
SIRIUS will transfer to the Dewesoft. Higher sample rate also means that more data needs to be ... -
Page 19: Measurement Mode
button. Now Dewesoft has created a data file with all the data that you have seen during the recording session. ... -
Page 20: Advanced Configuration
2.4. Advanced configuration Note, that the Dewesoft launcher has already done the hardware setup for you – you can check this in ... -
Page 21: Firmware Upgrade
D ewesoft upgrade package (.dxu file) from the Dewesoft downloads page under ● the section Drivers. Copy the file into the Firmwares folder of your Dewesoft installation (e.g. ● D:\DewesoftX\System\X3\Firmwares). Connect the Dewesoft instrument to the PC and run Dewesoft X3. ... -
Page 22: Licensing
DEVICE TECHNICAL REFERENCE MANUAL 2.6. Licensing SIRIUSi-XHS® or any other Dewesoft device already comes with an embedded Dewesoft license. You ❶ can check the license details with all the available options in the Licensing tab ... -
Page 23: Troubleshooting
DEVICE TECHNICAL REFERENCE MANUAL 2.7. Troubleshooting If your SIRIUSi-XHS® device is not found by DewesoftX® : If you did not restart Windows after the software installation, restart now ● Make sure that you have started DewesoftX® version Release Candidate 2020.2, Development ... -
Page 24: System Overview
DEVICE TECHNICAL REFERENCE MANUAL 3. System overview SIRIUSi-XHS® Sirius XHS is the first device ever with Hybrid ADC technology capable of doing both high bandwidth transient recording and very high dynamic alias-free acquisition - software-selectable per channel. Modern interfaces and protocols allow open and flexible connectivity. ... -
Page 25: Main Features
● functionality, award-winning DEWESoft X3 software is included. All upgrades to the software are free forever with no hidden licensing costs. ... -
Page 26: Hybrid Adc Technology
SIRIUS XHS, due to the nature of the chosen filter, both modes are perfectly aligned and synchronized. As on any Dewesoft devices, data can be synchronized to other data sources, such as vehicle bus interface, GPS, IMU, video, and others. ... -
Page 27: Data Acquisition Software Included For Free
DewesoftX is the world's most advanced and easy-to-use data acquisition and analysis software. Dewesoft 's flexibility and power will help you unleash the DAQ system to its full potential and gives you many advantages over other DAQ systems. Functionalities like plug-and-play, hardware ... -
Page 28: Single Slice
DEVICE TECHNICAL REFERENCE MANUAL 3.3. Single slice A single SIRIUSi-XHS® slice can have up to 8 measurement modules, currently HV, LV and ACC modules are supported. I mage 43: SIRIUSi-XHS® 8xACC 3.4. Single slice: Rear side The SIRIUSi-XHS®... -
Page 29: Connectors
DEVICE TECHNICAL REFERENCE MANUAL 3.5. Connectors 3.5.1. Power in connector Pin Name Description 1 V + Supply 2 V - Ground Power in connector: pin-out (2-pin LEMO male) Power In connector (on the device): EXJ.1B.302.CLA Mating connector (for the cable): FGJ.1B.302.CLLD52Z 3.5.1.1. -
Page 30: Sync Connector
DEVICE TECHNICAL REFERENCE MANUAL 3.5.2. SYNC connector The sync connectors are required when you want to use multiple SIRIUSi-XHS®® USB slices for the ... -
Page 31: Gnd Connector
DEVICE TECHNICAL REFERENCE MANUAL Pin Name Description 1 +5V 5 V supply max. current: 500 mA 2 CAN_LOW CAN low 3 DGND Digital Ground 4 RES Reserved 5 RES Reserved CAN connector: pin-out (DSUB-9 male) 6 DGND ... -
Page 32: Usb Connector
DEVICE TECHNICAL REFERENCE MANUAL Pin Name Description 1 Tx A+ Transmitting pair A+ 2 Tx A- Transmitting pair A- 3 Rx B+ Receiving pair B+ 4 Tx C+ Transmitting pair C+ 5 Tx C- Transmitting pair C- 6 ... -
Page 33: Module Overview
DEVICE TECHNICAL REFERENCE MANUAL 4. Module overview Currently HV, LV and ACC amplifierts are supported on the SIRIUSi-XHS® device. XHS-HV XHS-LV XHS-ACC Connectors BANANA DB9, BNC BNC Channels per slice 8 Data rate / channel 15 MS/s Resolution ... -
Page 34: Siriusi-Xhs® Dimensions
DEVICE TECHNICAL REFERENCE MANUAL 4.1. SIRIUSi-XHS® dimensions I mage 52: Dimensions SIRIUSi-XHS® - V21-1 34/51 ... -
Page 35: Hv: Specifications
DEVICE TECHNICAL REFERENCE MANUAL 4.2. HV: Specifications The HV modules are perfect for high voltage measurements. Inputs Voltage ADC Type HybridADC - 24-bit alias free up to 1 MS/s, 16-bit up to 15 MS/s Sampling Rate Simultaneous 15 MS/s Filtering ... -
Page 36: Hv- Banana Connector
DEVICE TECHNICAL REFERENCE MANUAL 4.2.2. HV- Banana Connector SIRIUSi-XHS®-8xHV HV connector: pin-out (Banana plug) Warning It is mandatory to connect a ground cable to the GND connector of the SIRIUS® when you are working with high voltages. ... -
Page 37: Specifications
DEVICE TECHNICAL REFERENCE MANUAL 4.3. LV: Specifications The LV modules are perfect for low voltage and current measurements in combination with current clamps. Inputs Voltage ADC Type HybridADC - 24-bit alias free up to 1 MS/s, 16-bit up to 15 MS/s Sampling Rate ... -
Page 38: Dsub Connector
DEVICE TECHNICAL REFERENCE MANUAL Rev: 1608804000 1) In- must be within ±10V referred to GND(iso); for Ranges ≥ 10 V the DC value of In- is not rejected 4.3.1. LV: DSUB connector SIRIUSi-XHS®-8xLV LV connector: pin-out (DSUB-9 female) ... -
Page 39: Current
DEVICE TECHNICAL REFERENCE MANUAL 4.3.1.2. LV: Current 4.3.2. LV: BNC connector SIRIUSi-XHS®-8xLV-BNC LV-BNC connector: pin-out (BNC) SIRIUSi-XHS® - V21-1 39/51 ... -
Page 40: Acc: Specifications
DEVICE TECHNICAL REFERENCE MANUAL 4.4. ACC: Specifications The ACC modules are perfect for sound and vibration IEPE channels. Inputs Voltage Input types IEPE ADC Type HybridADC - 24-bit alias free up to 1 MS/s, 16-bit up to 15 MS/s Sampling Rate ... -
Page 41: Acc: Bnc Connector
DEVICE TECHNICAL REFERENCE MANUAL 4.4.1. ACC: BNC connector SIRIUSi-XHS®-8xACC ACC connector: pin-out (BNC) 4.4.1.1. ACC: Voltage, IEPE Voltage IEPE SIRIUSi-XHS® - V21-1 41/51 ... -
Page 42: Real-Time Controller - Xcp Slave Settings
, to properly connect and set the device. The XCP settings must be specified in Dewesoft software and properly uploaded to the device. When the settings are done and the RT-mode is properly started, Dewesoft can be closed. The maximum ... -
Page 43: Xcp Output Settings
DEVICE TECHNICAL REFERENCE MANUAL I mage 54: RT controller module settings 5.1.1. XCP output settings ❷ To enable the XCP output the “Enable XCP output” check-box needs to be ticked, otherwise no data will be transmitted. ... -
Page 44: Xcp Outputs (Channels)
DEVICE TECHNICAL REFERENCE MANUAL I mage 55: Incorrect divider Important The maximum sample rate that can be used with the XCP module is 1 MHz. When a higher sample rate is chosen the module will pop-out the warning. ... -
Page 45: Generating A2L File
When all the settings are set the device needs to be put in the RT mode, for that you need to press ❼ START button . After start you can connect to XCP slave via XCP master (e.g. Dewesoft, Canape). There is also an additional option “Restart acquisition on device startup” , for setting the device directly ... -
Page 46: Safety Instructions
Dewesoft d.o.o. assumes no liability for the customer’s failure to comply with these requirements. All accessories shown in this document are available as an option and will not be shipped as standard ... - Page 47 Dewesoft sales and service office for service and repair to ensure that safety features are ...
- Page 48 DEVICE TECHNICAL REFERENCE MANUAL Unauthorized changing or rebuilding the system is prohibited due to safety and permission ● reasons (CE). Be careful with voltages >25 VAC or >35 VDC! These voltages are already high enough in order to ...
-
Page 49: Notice
Dewesoft system can be requested. We retain them for at least one year, after system delivery. 7.3. Support Dewesoft has a team of people ready to assist you if you have any questions or any technical difficulties ... -
Page 50: Printing History
Dewesoft triangle logo is a registered trademark but the ® sign is not used in the visual representation ... -
Page 51: Documentation Version
DEVICE TECHNICAL REFERENCE MANUAL 7.9. Documentation version Doc-Version Date Notes [dd.mm.yyyy] V20-1 18.1.2021 Added XCP opton, Few small fixes V20-1 13.05.2020 Initial version SIRIUSi-XHS® - V21-1 51/51 ...
