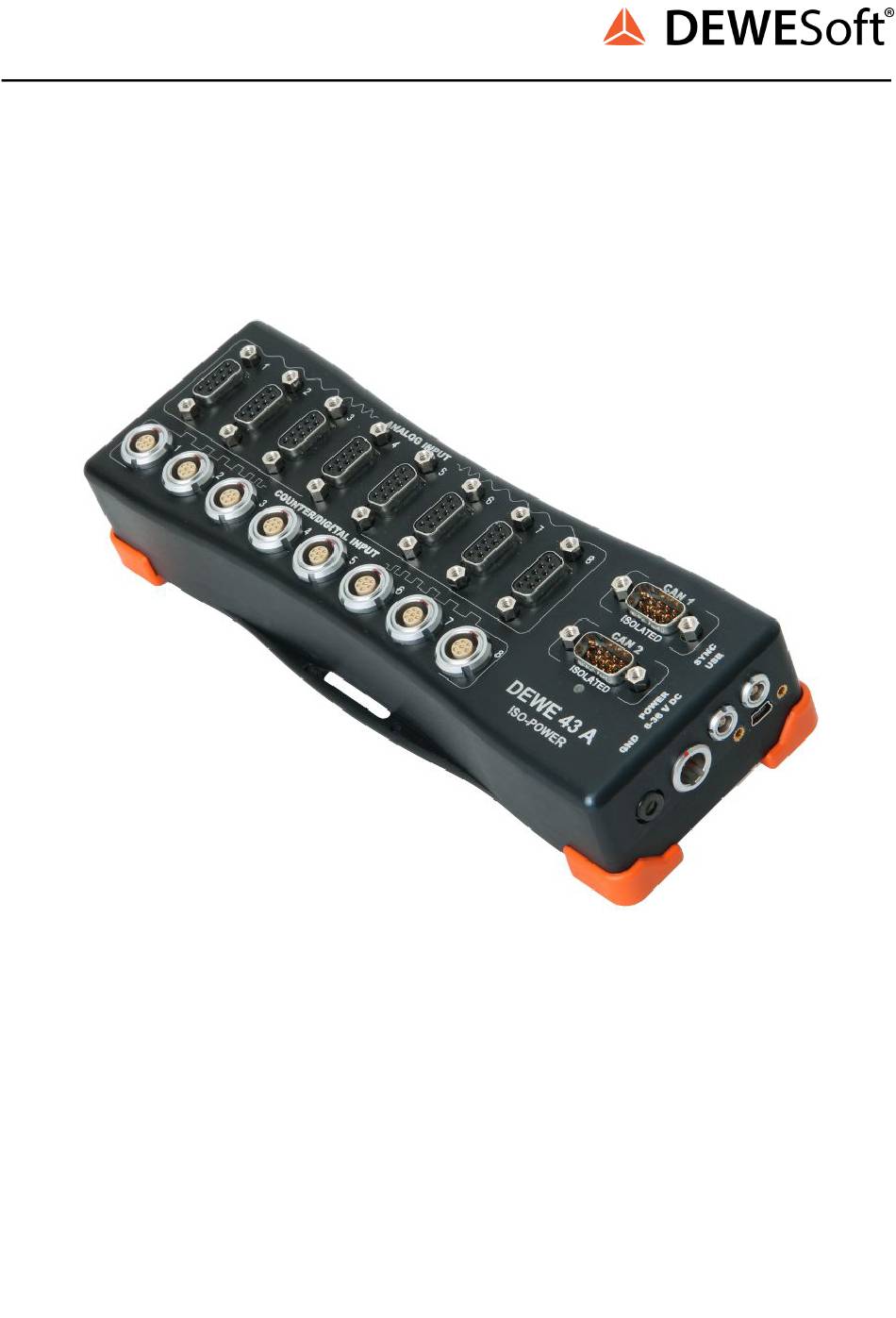

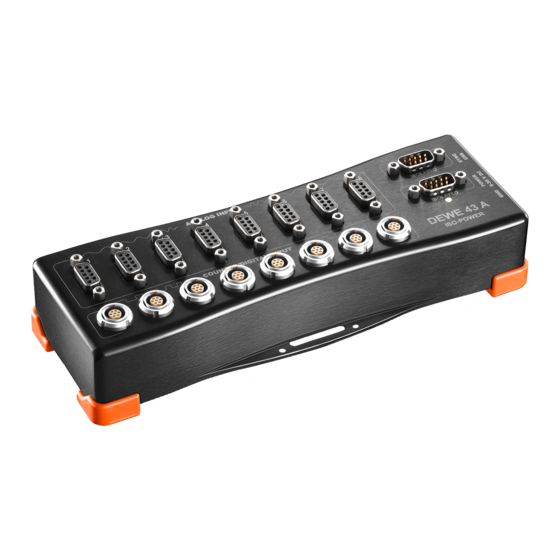

- Page 1 DEWE-43A TECHNICAL REFERENCE MANUAL DEWE-43A V20-2 1 ...
-
Page 2: Table Of Contents
1. Table of contents 1. Table of contents 2 2. About this document 4 2.1. Legend 4 2.2. Online versions 5 2.2.1. DEWE-43A technical reference manual 5 2.2.2. DewesoftX® tutorials 5 3. Specifications 6 3.1. Hardware revisions 8 3.1.1. Analog input configuration: 8 ... - Page 3 10.2. General Safety Instructions 35 10.2.1. Environmental Considerations 35 10.2.2. Product End-of-Life Handling 35 10.2.3. System and Components Recycling 35 10.2.4. General safety and hazard warnings for all Dewesoft systems 36 11. Documentation version history 38 ...
-
Page 4: About This Document
TECHNICAL REFERENCE MANUAL 2. About this document This is the Technical Reference Manual for DEWE-43A. The manual is divided into several chapters. You will find: - A description of the system and the main combination and expansion options ... -
Page 5: Online Versions
DewesoftX® and certain parts of the program. The latest version of the DewesoftX® tutorials can be found here: https://download.dewesoft.com/list/manuals-brochures/software-manuals In the S oftware Manuals section click the download link of the DEWESoft X3 tutorials entry. Important ... -
Page 6: Specifications
Time base accuracy Typical: 5 ppm, Max: 20 ppm Max. Bandwidth 10MHz Input Filter 500 ns, 1 μs, 2 μs, 4 μs, 5 μs and 7.5 μs Counter resolution 32-bit Compatibility TTL/CMOS Configuration Pull-up with 100kΩ DEWE-43A V20-2 6/38 ... - Page 7 5 to 95 % RH non-condensing at 50 °C IP rating IP50 Vibration sweep sinus (EN 60068-2-6:2008) Vibration random (EN 60721-3-2: 1997 - Class 2M2) Shock & Vibration Shock (EN 60068-2-27:2009) MIL-STD-810D Physical Dimensions 225 x 80 x 45 mm DEWE-43A V20-2 7/38 ...
-
Page 8: Hardware Revisions
signal. 3.1.2. ADC: The DEWE-43A uses 8 delta-sigma A/D converters. If you sample with a data rate of 102.4 kS/s, the ADC ... - Page 9 near these multiples. The following diagrams show the frequency response of the input circuitry. Image 2: Sample rate 0.1kS/s to 51.2kS/s DEWE-43A V20-2 9/38 ...
- Page 10 The analog filter removes these components before they get to the digital filter and the sampler. DEWE-43A V20-2 10/38 ...
- Page 11 the input range to avoid this. Image 5: Idle channel noise (input terminated with 50Ω) DEWE-43A V20-2 11/38 ...
- Page 12 Image 7: Spectral noise - 50Ω termination – 10 averages – 16k lines@100kS/s Image 8: Spectral noise - 50Ω termination – 10 averages – 16k lines@200kS/s DEWE-43A V20-2 12/38 ...
-
Page 13: Cmrr
DEWE-43A TECHNICAL REFERENCE MANUAL 3.1.3. CMRR: All 8 analog channels of the DEWE-43A are fully differential inputs with resistance of 10MΩ||10pF. The ... -
Page 14: Counter And Digital Inputs
TECHNICAL REFERENCE MANUAL 3.1.4. Counter and digital inputs: The DEWE-43A is suited with synchronous 32-bit advanced counter and digital inputs. In addition to the basic counter function like simple event counting, up/down counting and gated event ... -
Page 15: Device Operation
DEWE-43A TECHNICAL REFERENCE MANUAL 4. Device operation Image 11: Top side connectors Image 12: Side connectors DEWE-43A V20-2 15/38 ... -
Page 16: Connectors
Image 13: Analog input connector (9-pin D-SUB female) 4.1.2. CAN connector Pin Description 1 +5V 2 CAN_LOW 3 DGND 4 RES 5 RES 6 DGND 7 CAN_HIGH 8 RES 9 +12V Image 14: CAN connector (9-pin D-SUB male) DEWE-43A V20-2 16/38 ... -
Page 17: Counter Input
Image 16: LEMO EGJ.1B.302.CLA 4.1.5. Sync connector Pin Name Description 1 CLK Clock 2 TRIG Trigger 3 RES PPS 4 GND Ground Image 17: Mating cable connector: FGG.00.304CLAD27Z DEWE-43A V20-2 17/38 ... -
Page 18: Typical Sensor Connection
When PPS synchronization is used, the PPS signal is on pin 3 When Clock-Trigger synchronization is used, the signal is on pin 1,2 4.2. Typical sensor connection For correct measurements, it is highly recommended to ground the DEWE-43A with GND banana plug ... - Page 19 If sensors or other signal sources with isolated external power supply are used, ground signals of DEWE-43A and external power supply should be connected over connector GND wire or over “common GND” input on housing to prevent common-mode voltage problems. ...
-
Page 20: Bridge Sensor Connection
Full bridge 10V excitation: ● Image 20: Full bridge mode Half bridge 10V excitation: ● Image 21: Half bridge mode DEWE-43A V20-2 20/38 ... - Page 21 The excitation level between EXC+ and EXC- is 10 V. If lower excitation (5V) is needed, please connect the GND pin instead of EXC- to negative sensor supply. Image 23: Full bridge 5V excitation option DEWE-43A V20-2 21/38 ...
- Page 22 DEWE-43A TECHNICAL REFERENCE MANUAL Dewesoft bridge completion adapters: ● Image 24: ¼ Bridge completion Adapter Image 25: ½ Bridge completion Adapter DEWE-43A V20-2 22/38 ...
-
Page 23: Software Installation
Support/Downloads/DewesoftX section or directly in software under the Options/Check for updates. In both cases the changelog is included Image 26: Check for a newer version DEWE-43A V20-2 23/38 ... -
Page 24: Using Dewe-43A In Dewesoftx
Image 27: USB cable Then connect the USB cable to the rear-side of the DEWE-43A system (see connector named USB in Image 28. Finally connect the other side of the USB cable to the USB port of your computer. ... -
Page 25: Start Up Of The Device
Image 29: DewesoftX® settings In the Devices section, you can see the connected DEWE-43A device. When you select one of them, the properties pane at the right will show the related data e.g. Serial number, Firmware version, etc. ... -
Page 26: Simple Measurement
(or multiple channels) in the setup grid, the corresponding connectors in the image will be highlighted. The sampling rate will be set for all connected DEWE-43A devices: of course only up to the max. sampling rate of the individual slices. ... -
Page 27: Analog Channel Setup
6.3.2. Analog channel setup In the analogue channel setup screen you can see all channels of your connected DEWE-43A systems. Per default only the first channel will be set to Used. Unused channels will not show up in measure ... -
Page 28: Sample Rate
One of the most important settings is the sample rate. The sample rate defines how many data points DEWE-43A will transfer to the DewesoftX®. Higher sample rate also means that more data needs to be transferred via USB to your computer. ... -
Page 29: Measurement Mode
Analyse mode. 6.3.5. Analyse Mode When you have just stopped a measurement, DewesoftX® will automatically open the last recorded data file in Review mode, so that you can start the analysis right away. DEWE-43A V20-2 29/38 ... - Page 30 You can also change the design of your measurement displays, print reports based on your data and export the data to other file formats for further analysis. DEWE-43A V20-2 30/38 ...
-
Page 31: Firmware Upgrade
(.dxu file) from the Dewesoft downloads page under ● the section Drivers. Copy the file into the Firmwares folder of your DewesoftX® installation (e.g. ● D:\DewesoftX\System\X3\Firmwares). Connect the Dewesoft instrument to the PC and run DewesoftX®. ● Go to settings under the Update tab: ● ... -
Page 32: Dewesoftx® License Information
Image 39: Licensing Hint All licenses regarding DEWE-43A will only work when the DEWE-43A system is connected to your PC and the device has been activated in the hardware setup. ... -
Page 33: Warranty Information
9.2. Support Dewesoft has a team of people ready to assist you if you have any questions or any technical difficulties regarding the system. For any support please contact your local distributor first or Dewesoft directly. ... -
Page 34: Printing History
When used in text representing the company, product or technology name, the ® sign is not used. The Dewesoft triangle logo is a registered trademark but the ® sign is not used in the visual representation of the triangle logo. ... -
Page 35: Safety Instructions
Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the product. Dewesoft GmbH assumes no liability for the customer’s failure to comply with these requirements. ... -
Page 36: General Safety And Hazard Warnings For All Dewesoft Systems
2002/95/EC RoHS Directive. However, we take care of our environment and the product is lead-free. 10.2.4. General safety and hazard warnings for all Dewesoft systems Safety of the operator and the unit depend on following these rules. Use this system under the terms of the specifications only to avoid any possible danger. ... - Page 37 REMOVE POWER and do not use the product until the safe operation can be verified by service-trained personnel. If necessary, return the product to Dewesoft sales and service office for service and repair to ensure that safety features are maintained. ...
-
Page 38: Documentation Version History
IEC 61326-3-1. Fire-alarm and safety-alarm systems, intended for the protection of buildings, are excluded from the scope of IEC 61326-3-1. 11. Documentation version history Version Date Notes V20-1 August, .2020 New Template DEWE-43A V20-2 38/38 ...
