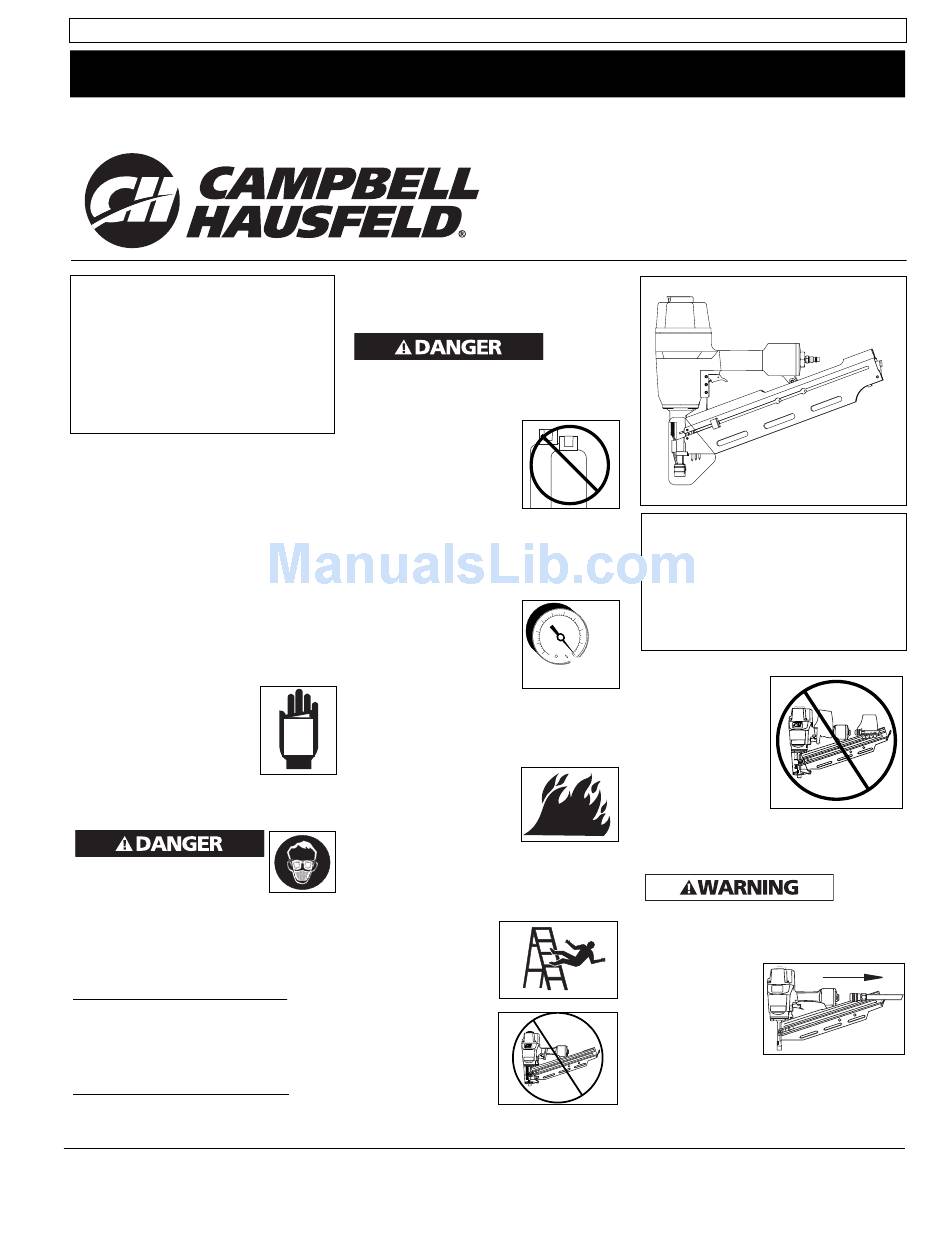

Campbell Hausfeld Framing Nailer JB3495 Operating Instructions Manual

See Warranty on page 8 for important information about commercial use of this product.
Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury, death and/or
property damage! Retain instructions for future reference.
Table Of Contents
General Safety . . . . . . . . . . . . 1-2
Specifications . . . . . . . . . . . . . . 2
Operating The Nailer . . . . . . . . 3
Operational Modes. . . . . . . . . . 4
Troubleshooting . . . . . . . . . . . . 7
Fasteners . . . . . . . . . . . . . . . . . . 7
Warranty . . . . . . . . . . . . . . . . . . 8
Description
This nailer is designed for framing,
trusses, sub-floors, sheathing, exterior
decks, and pallet/create assembly.
Features include: convenient top loading
magazine, no-mar tip, adjustable
exhaust, single cycle trigger, and an
adjustable depth of drive mechanism.
General Safety Information
This manual contains safety, operational
and maintenance information.
Read this manual and
understand all safety
warnings and instructions
before operating the nailer.
Contact your Campbell
Hausfeld representative if
you have any questions.
CALIFORNIA PROPOSITION 65
You can create dust when
you cut, sand, drill or grind
materials such as wood,
paint, metal, concrete, cement, or other
masonry. This dust often contains
chemicals known to cause cancer, birth
defects, or other reproductive harm.
Wear protective gear.
OPERATOR'S RESPONSIBILITY:
Before operating the nailer, read and
understand all safety warnings and
labels. Follow the operating
instructions outlined in this manual.
EMPLOYER'S RESPONSIBILITY:
Distribute this instruction manual to all
users before allowing use of the nailer.
Campbell Hausfeld Nailers meet or exceed Industries' Standards as set forth by the American National
Standard Institute/International Staple, Nail and Tool Association in ANSI/ISANTA SNT-101-2002.
© 2008 Campbell Hausfeld / Scott Fetzer
Ensure all operators read, understand
and follow all safety warnings, labels and
instructions outlined in this manual.
an imminently hazardous situation
which, if not avoided, WILL result in
death or serious injury.
● ● Do not use any type
of flammable gases or
oxygen as a power
source for the nailer.
Use filtered,
lubricated, regulated
compressed air only. Use of a
compressed gas instead of
compressed air may cause the nailer
to explode which will cause death or
serious personal injury.
● ● Do not exceed
maximum operating
pressure of the nailer
(120 psi). The nailer
will not function
properly. Do not use a
compressed air source capable of
more than 200 psi. The nailer could
explode which will cause death or
MANUAL
serious personal injury.
● ● Never use gasoline or
other flammable
liquids to clean the
nailer. Never use the
nailer in the presence
of flammable liquids or gases. Vapors
could ignite by a spark and cause an
explosion which will result in death
or serious personal injury.
● ● Always remain in a
firmly balanced
position when
using or handling
the nailer.
● ● Do not modify or
disable the Work
Contact Element
(WCE). Do not tie
or tape the WCE
or trigger in a
depressed
position. Death or serious personal
injury could result.
For parts, product & service information
visit www.chpower.com
Framing Nailer
Danger
indicates
O
CO
2
Locate model and date code
on tool and record below:
Model No. ________________________
Date Code ________________________
Retain these numbers for
future reference.
120 psi
MAX.
● ● Do not touch
the trigger
unless driving
nails. Never
attach air line
to nailer or
carry nailer
while touching
the trigger. The
tool could eject a fastener which
will result in death or serious
personal injury.
a potentially hazardous situation
which, if not avoided, COULD result in
death or serious injury.
● ● Always
disconnect
nailer from air
line before
clearing jams,
adjusting or
servicing the
nailer, relocating the nailer, or
when the nailer is not in use.
Always reconnect the air line
BEFORE loading any fasteners.
Model JB3495
Warning
indicates
IN726600AV 7/08
