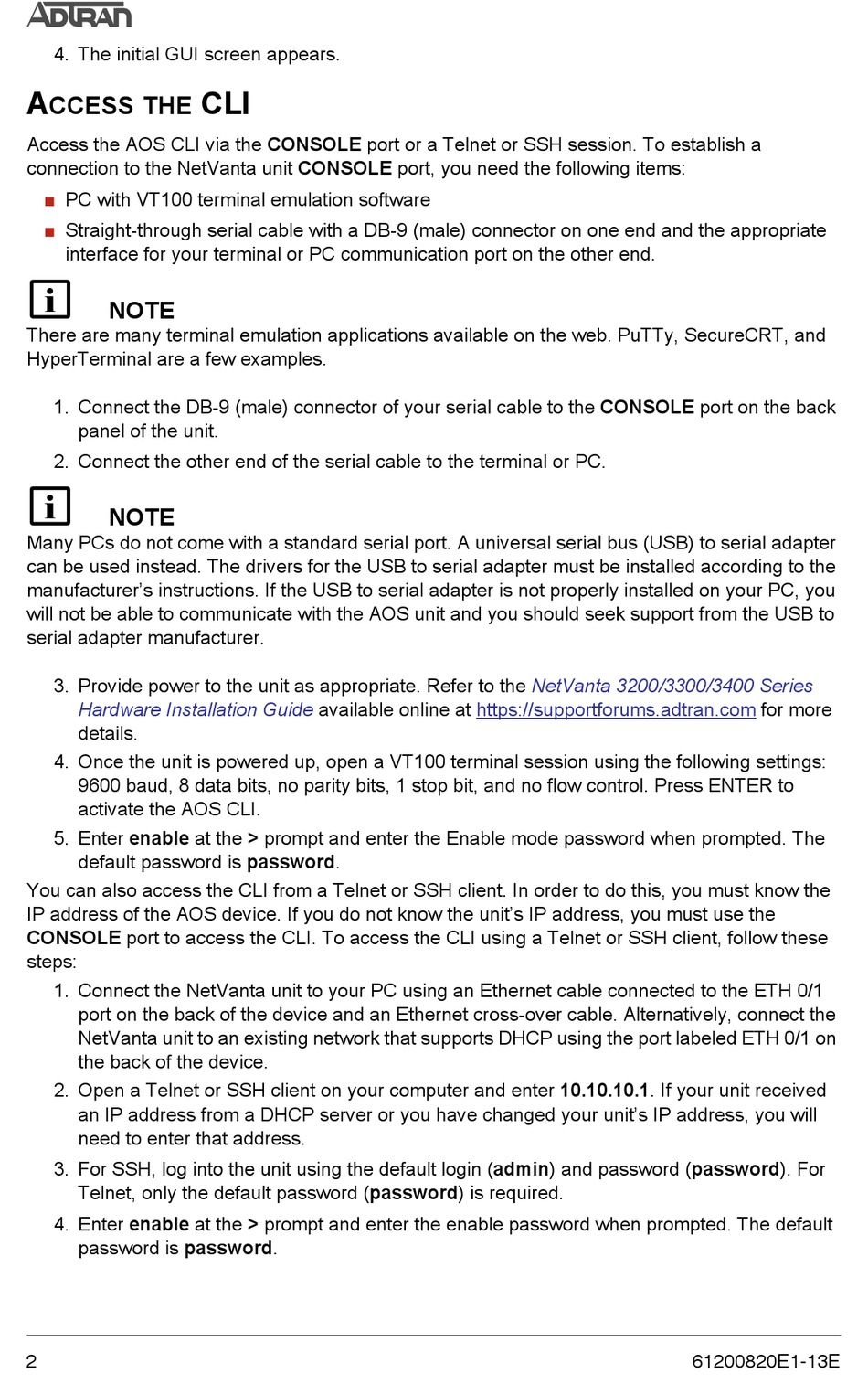

4. The initial GUI screen appears.
A
CCESS THE
Access the AOS CLI via the CONSOLE port or a Telnet or SSH session. To establish a
connection to the NetVanta unit CONSOLE port, you need the following items:
■
PC with VT100 terminal emulation software
■
Straight-through serial cable with a DB-9 (male) connector on one end and the appropriate
interface for your terminal or PC communication port on the other end.
g
NOTE
There are many terminal emulation applications available on the web. PuTTy, SecureCRT, and
HyperTerminal are a few examples.
1. Connect the DB-9 (male) connector of your serial cable to the CONSOLE port on the back
panel of the unit.
2. Connect the other end of the serial cable to the terminal or PC.
g
NOTE
Many PCs do not come with a standard serial port. A universal serial bus (USB) to serial adapter
can be used instead. The drivers for the USB to serial adapter must be installed according to the
manufacturer's instructions. If the USB to serial adapter is not properly installed on your PC, you
will not be able to communicate with the AOS unit and you should seek support from the USB to
serial adapter manufacturer.
3. Provide power to the unit as appropriate. Refer to the
Hardware Installation Guide
details.
4. Once the unit is powered up, open a VT100 terminal session using the following settings:
9600 baud, 8 data bits, no parity bits, 1 stop bit, and no flow control. Press ENTER to
activate the AOS CLI.
5. Enter enable at the > prompt and enter the Enable mode password when prompted. The
default password is password.
You can also access the CLI from a Telnet or SSH client. In order to do this, you must know the
IP address of the AOS device. If you do not know the unit's IP address, you must use the
CONSOLE port to access the CLI. To access the CLI using a Telnet or SSH client, follow these
steps:
1. Connect the NetVanta unit to your PC using an Ethernet cable connected to the ETH 0/1
port on the back of the device and an Ethernet cross-over cable. Alternatively, connect the
NetVanta unit to an existing network that supports DHCP using the port labeled ETH 0/1 on
the back of the device.
2. Open a Telnet or SSH client on your computer and enter 10.10.10.1. If your unit received
an IP address from a DHCP server or you have changed your unit's IP address, you will
need to enter that address.
3. For SSH, log into the unit using the default login (admin) and password (password). For
Telnet, only the default password (password) is required.
4. Enter enable at the > prompt and enter the enable password when prompted. The default
password is password.
2
CLI
available online at
NetVanta 3200/3300/3400 Series
https://supportforums.adtran.com
for more
61200820E1-13E
